Strange Spindle Mount Carbon Brake Kit
For S3423 Adjustable Height Spindles


Part Number: C4694WC

Designed Specifically For Drag Racing

Strange S3423 Adjustable Height spindles (Introduced in 2009)
Using 1 piece forged or billet Spindle Mount wheels

The Ultimate in Drag Race Braking Performance
• Maximum rotational weight reduction
• Impervious to brake fade
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• 2″ O.D. piston increases clamping force
• Low drag O-ring greatly reduce brake drag
• Provides consistent braking with a firm pedal feel

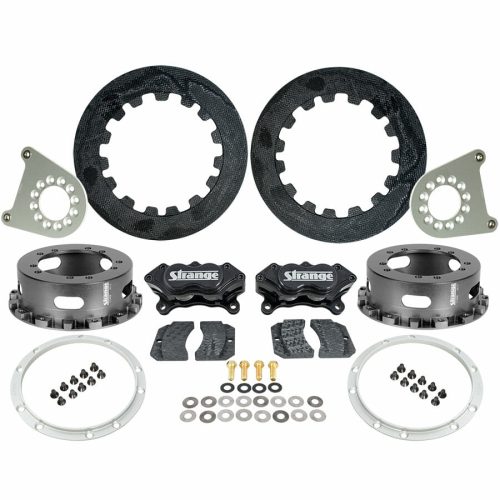

Kit Includes

11″ carbon rotors – C1790
Billet aluminum hats with lightening holes
Aluminum retaining rings with FHSCS screws
Single 2″ piston billet aluminum calipers – B1264
Slider assemblies featuring Garlock bearings
Carbon brake pads – B1250P
Billet aluminum caliper mounts

Brake Hoses & Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings


Strange carbon front brake kit for S3423 Spindles with single piston calipers & carbon rotors

Parts List and Installation Guide pdf File
