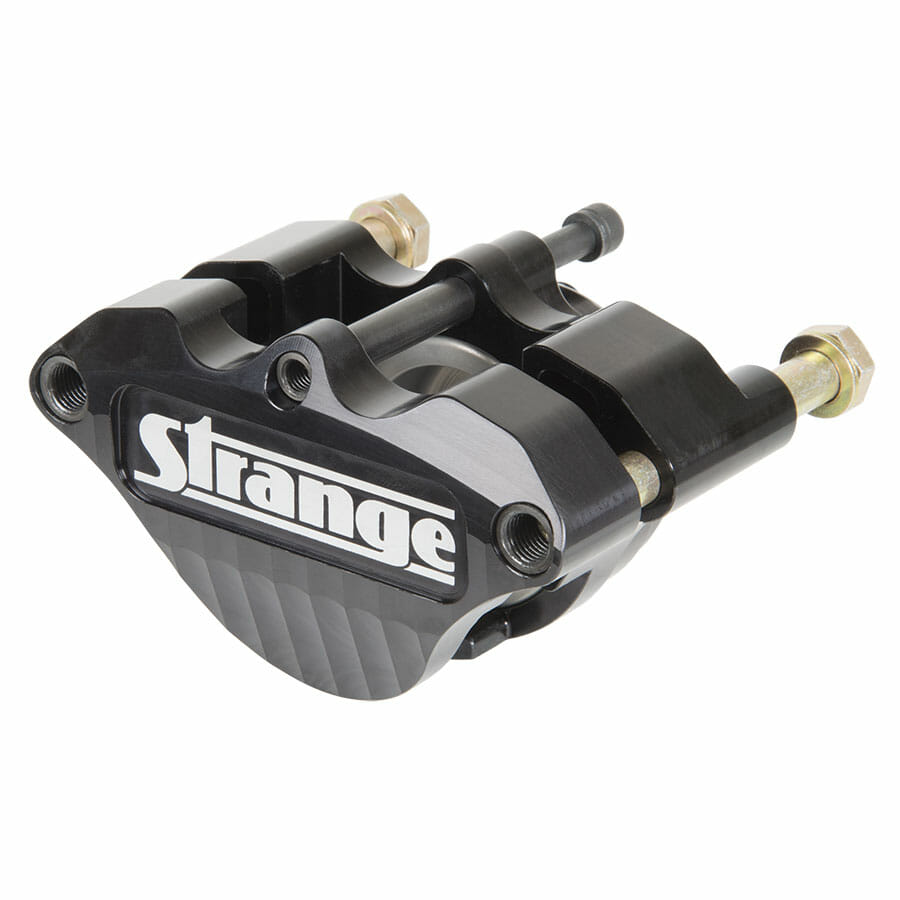

Single Piston Front Carbon Brake Caliper
For Spindle Mount 11" Carbon Brake Kits


Part Number: B1264

Designed Specifically For Drag Racing

Replacement For 11″ Spindle Mount Carbon Brake Kits
C4690WC / C4694WC

Single Piston Caliper
• Billet aluminum body is extremely ridged reducing spread and flex
• 2″ hard anodized aluminum piston is abrasion & corrosion resistant
• Provides 30% more clamping force than 1 3/4″ piston
• Tapped 1/8″ NPT and supplied with male 3 AN fitting

Slider Mechanism Required
For Pair With Slider Assemblies & Pads See – B1823

Brake Hoses and Lines Are Not Included
Caliper is tapped 1/8″ NPT and supplied with a male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque to 25 ft lbs

Carbon Brake Pad – B1250P
Caliper For Steel Brakes – B1260


Single Piston Caliper with 2″ Piston – for Strange brake kits using 11″ carbon rotors and one piece spindle mount wheels
