Carbon Brake Conversion Kit
For Strange 10 1/2" Live Axle
Also 2013 & Later 9 / 9 1/2" Live Axle


Part Number: L7050WC

10 1/2″ Live Axle
9″ / 9 1/2″ Live Axle – 2013 and newer

9″ / 9 1/2″ Live Axle was redesigned in late 2012
2012 and older versions will need a more complete kit L4050WC
If unsure of the year, please contact us for more information

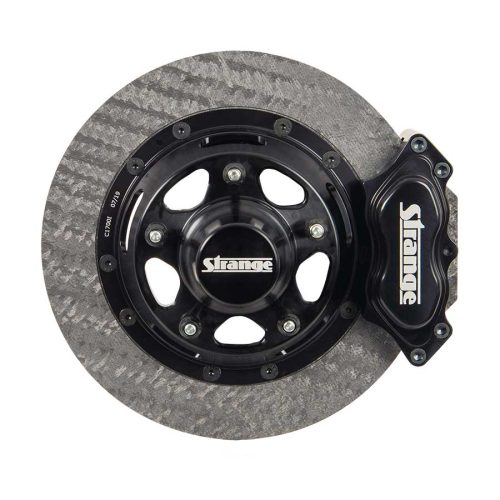

The Ultimate in Drag Race Braking Performance
• Maximum rotational weight reduction
• Impervious to brake fade
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel

This kit includes the parts necessary to convert to carbon brakes
Please specify which Live Axle you have as calipers are different

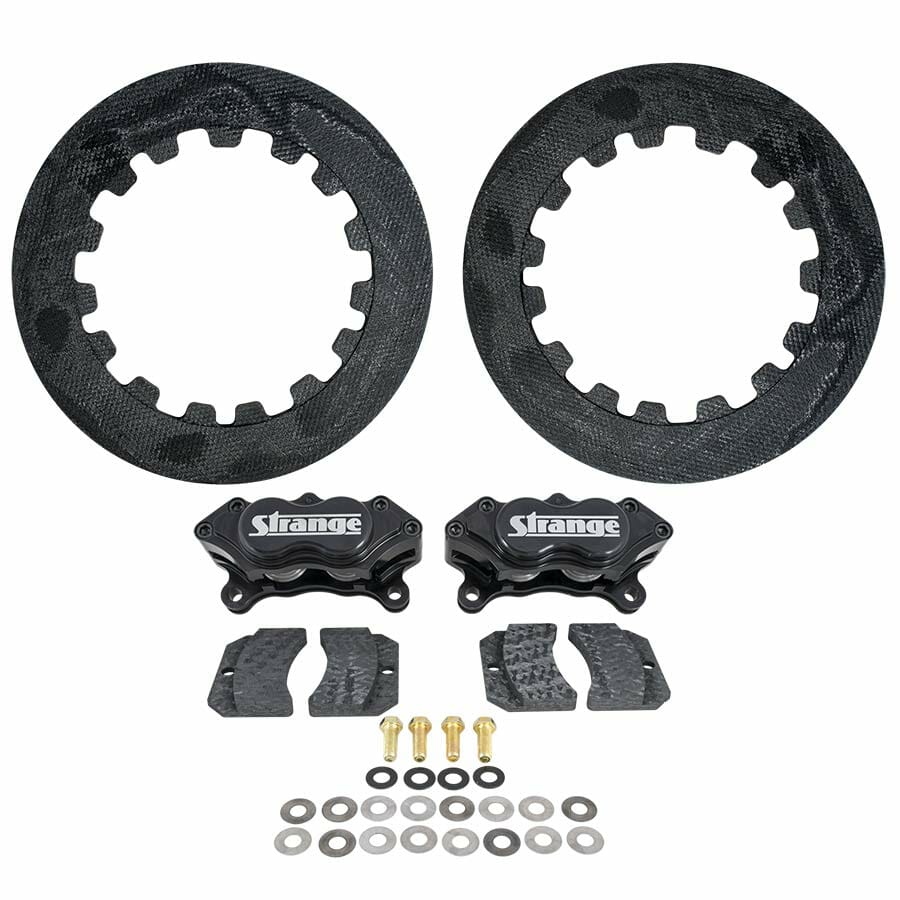

Kit Includes

11.5″ carbon rotors – L4050B
Retaining ring screws
Billet carbon calipers – B5040 or B5042
Carbon brake pads – L4050H
Mounting hardware & shims

Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings


Carbon brake kit for Strange 10 1/2″ Live Axle
