2010-2015 Camaro Strut
Double Adjustable Coil-Over

$529.00

Part Number: S2063


Designed Mainly For Drag Racing
There are no mounting provisions for sway bar link or brake line
These must be considered before using in street applications

2010-2015 Camaro Double Adjustable Steel Strut
Reuses factory upper mount & top nut
Requires 16″ x 2 1/2″ I.D. spring – Sold Separately

Sold as Each

Extension Adjustment
Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times

Compression Adjustment
Softer – Improves reaction to bumps in the track
Stiffer – Dampens impact forces from wheel stands

Features
• Independent external adjusters
• 3 1/8 turns of extension adjustment
• 13 compression settings
• Provides a wide range of control
• Allows quick adjustments for varying conditions
• Integral coil-over body
• Permits easy changes in ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved

Spring Recommendation
• 16″ 100-125 lbs
• Consult your chassis builder for their suggestion

Related

100 lbs spring – SP16100
125 lbs spring – SP16125UHT

Spring seat bearing kit – S1409
Spring seat adjuster wrench – S1413


Description

Double adjustable coil-over strut for 2010-2015 Camaro – Drag Race Only

Instructions

Parts List and Installation guide

You may also like…

  • S1413-Spring Seat Adjuster Wrench  For Strange Shocks & Struts

    Spring Seat Adjuster Wrench For Strange Shocks & Struts

    PN : S1413
    $16.00
    Add to cart

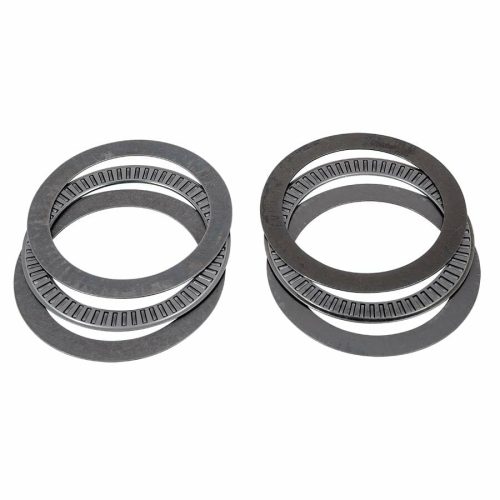

  • S1409-Spring Seat Bearing Kit  For Strange Aluminum Struts & Coil-Over Shocks
