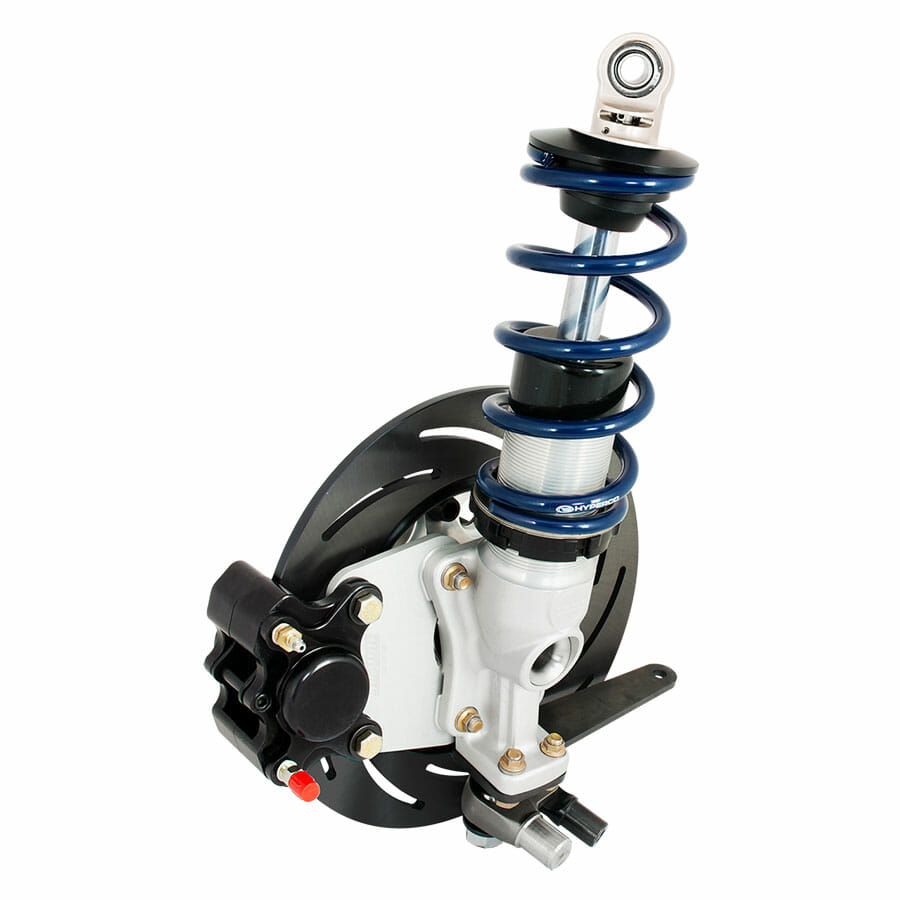

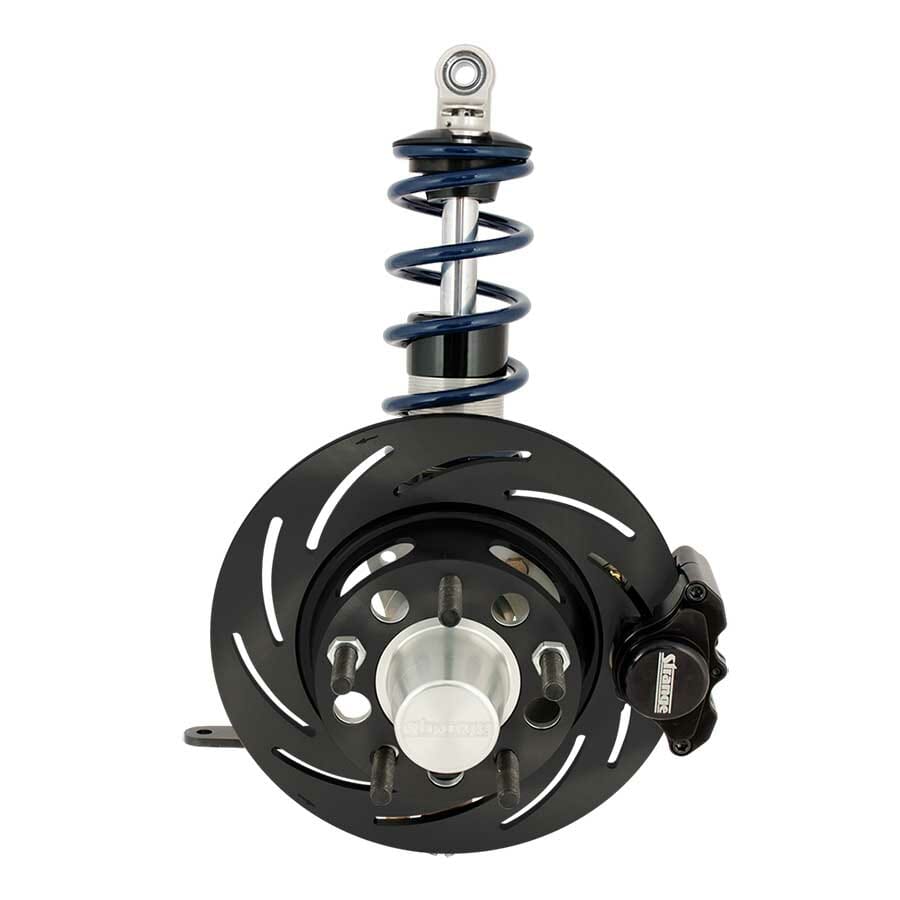

Strange Aluminum Strut Package Eye Mount - Externally Adjustable Medium Duty Brake Kit For Hub Mount Wheels

$2,070.00

Part Number: PSS110

Drag Race Use Only

For Hub Mount Wheels
Choice of 4 1/2″ or 4 3/4″ bolt circle

Features

Compact lightweight design sheds front end weight
Externally adjustable for rate of extension
Allows fine tuning of front suspension

Strut Package Includes

Eye Mount Struts
• Forged 2014-T4 aluminum bodies
• Stainless steel spindles
• 2 1/2″ stroke (with bumper installed)
• Externally adjustable for extension rate
• Valved specifically for Drag Racing
• Custom valving available on request
• Forged in the USA
• Designed, machined, & assembled by Strange Engineering

Lightweight Fabricated Lower Control Arms – S3420-WAK / S3421-WAK
• Constructed from 4130 chromoly components and tubing
• Modifications to tube length and welding of tube adapters is required
• Chromoly tube adapters supplied loose
• Choice of 7/16″ or 1/2″ Teflon® lined chrome moly rod ends
• Teflon® lined spherical ball LCA bearings
• Grade 8 bolts, flanged locking Jet nuts, & 3AN washers

Premium Hyperco Springs
• Chrome silicone steel
• Magnaflux inspected
• Dark blue powder coated
• Choice of spring rate

Spring Seat Bearing Kit – S1409
• Allows smooth height adjustment
• Eliminates spring bind during turns

Strange 2 Piston Caliper Brake Kit – B4453WC / B4454WC
• One piece forged slotted steel rotors
• Two piston billet aluminum calipers
• Soft metallic brake pads
• Billet aluminum caliper mounts
• Forged aluminum hubs with lightening holes
• Choice of 4 1/2″ or 4 3/4″ bolt pattern
• Timken bearings and races
• Oil seals
• 1/2″ -20 screw-in wheel studs
• All necessary mounting hardware

Note
Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings

Recommended Spring Rates

Front Weight – Spring Rate
1,100 lbs    – 200 lbs
1,200 lbs    – 200 to 225 lbs
1,300 lbs    – 225 to 250 lbs
1,400 lbs    – 250 to 275 lbs
1,500 lbs    – 275 to 300 lbs
1,600 lbs    – 300 to 325 lbs

Consult your chassis builder for their suggestion

For any questions regarding this package
Please contact a Strange Sales Associate to discuss your vehicle

Description

Alum Strut Pkg / Externally adj eye mount / MD brake kit

Parts List and Installation Guide pdf File
