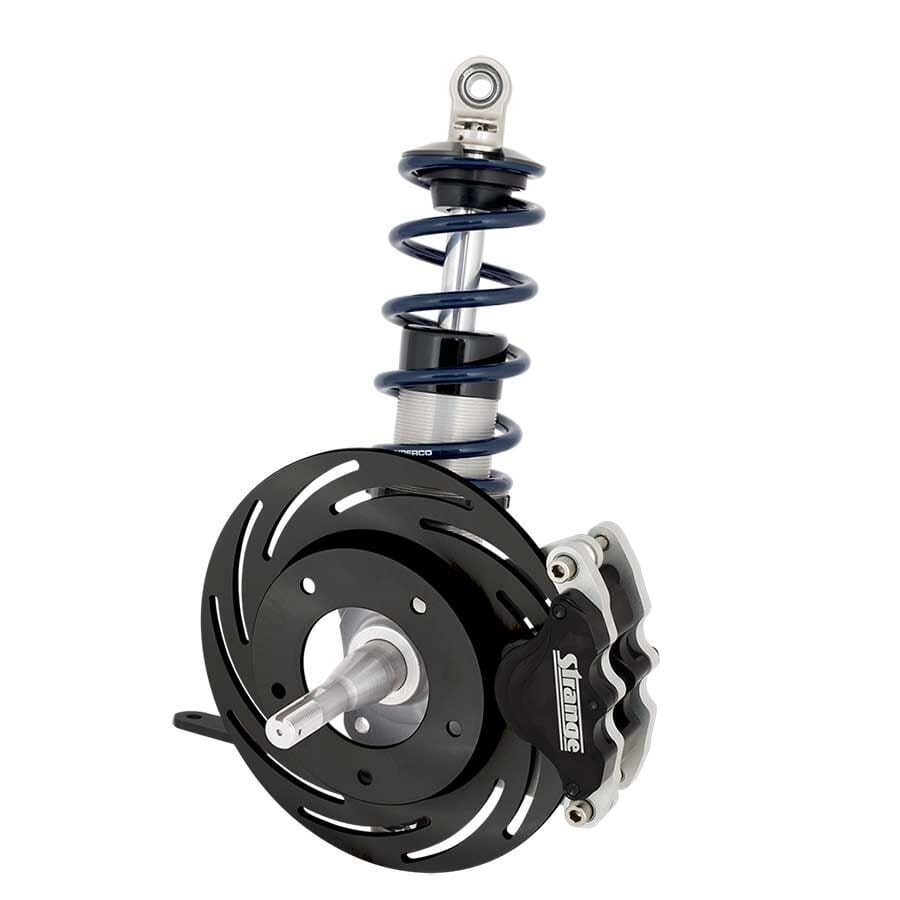

Strange Eye Mount Aluminum Strut Package
Single Adjustable With L/W Brake Kit
For Spindle Mount Wheels

$1,975.00

Part Number: PSS100


Designed Specifically For Drag Racing

For Spindle Mount Wheels
• Requires wheels designed for Strange aluminum strut spindles
• These are not the same as Anglia spindles

Features
Compact lightweight design sheds front end weight
Externally adjustable for rate of extension
Allows fine tuning of front suspension

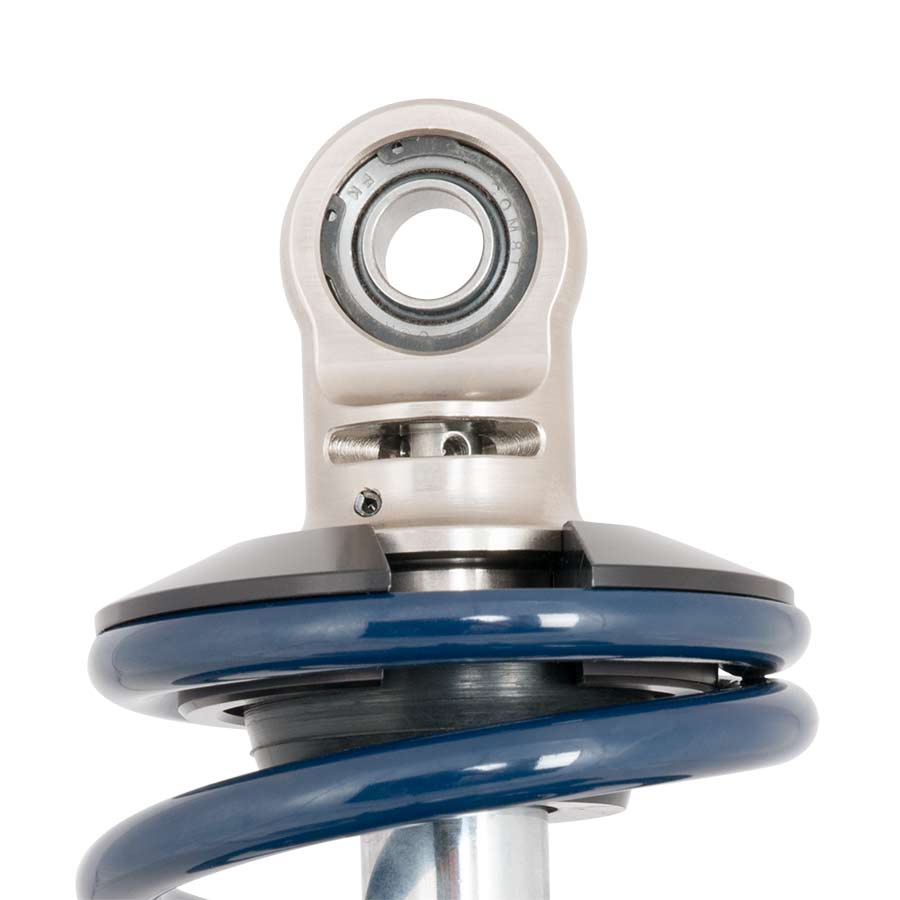

Eye Mount Struts
• Forged 2014-T4 aluminum bodies
• Stainless steel spindles
• 2 1/2″ stroke (with bumper installed)
• Externally adjustable for extension rate
• Valved specifically for Drag Racing
• Custom valving available on request
• Forged in the USA
• Designed, machined, & assembled by Strange Engineering

Lower Control Arm EndsS3750
• 4130 chrome moly
• LH & RH with 45° integral weld bung
• 4130 chrome moly male clevises
• Teflon® lined spherical LCA bearings
• Spirolox® retaining rings
• Grade 8 bolts, flanged locking Jet nuts, & 3AN washers

Lower Control Arm Tube KitS3420 / S3421
• 4130 seamless chrome moly tubing
• Teflon® lined chrome moly rod ends with jam nuts
• Choice of ball size to suit 7/16″ or 1/2″ bolts

Hyperco Springs (Blue) / Eibach Springs (Red or Silver)
• Chrome silicone steel
• Powder coated for corrosion resistance
• Choice of spring rate

Spring Manufacturer Dependent on Availability
If manufacturer or color is important, please specify
Not all rates are available in all three colors

Spring Seat Bearing KitS1409
• Allows smooth height adjustment
• Eliminates spring bind during turns

Spindle Mount Brake KitB4597WC / B4598WC
• One piece forged slotted steel rotors
• Choice of 1″ or 1 1/2″ offset rotors
• Single 1 3/4″ piston billet aluminum calipers
• Slider assemblies featuring Garlock bearings
• Soft metallic brake pads
• Billet aluminum caliper mounts

Brake Hoses And Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings

Brake Upgrades*
Two piece rotors – OPRB01
Evolution brake kit – OPRB01E

* For 1 piece billet or forged aluminum wheels

Recommended Spring Rates

Front Wt – Spring Rate
1,100 lbs – 200 lbs
1,200 lbs – 200 to 225 lbs
1,300 lbs – 225 to 250 lbs
1,400 lbs – 250 to 275 lbs
1,500 lbs – 275 to 300 lbs
1,600 lbs – 300 to 325 lbs

Consult Your Chassis Builder For Their Suggestion

For any questions regarding this package
Please contact a Strange Sales Associate to discuss your vehicle


Description

Alum Strut Pkg / Externally adj eye mount / LW brake kit

Parts List and Installation Guide pdf File
