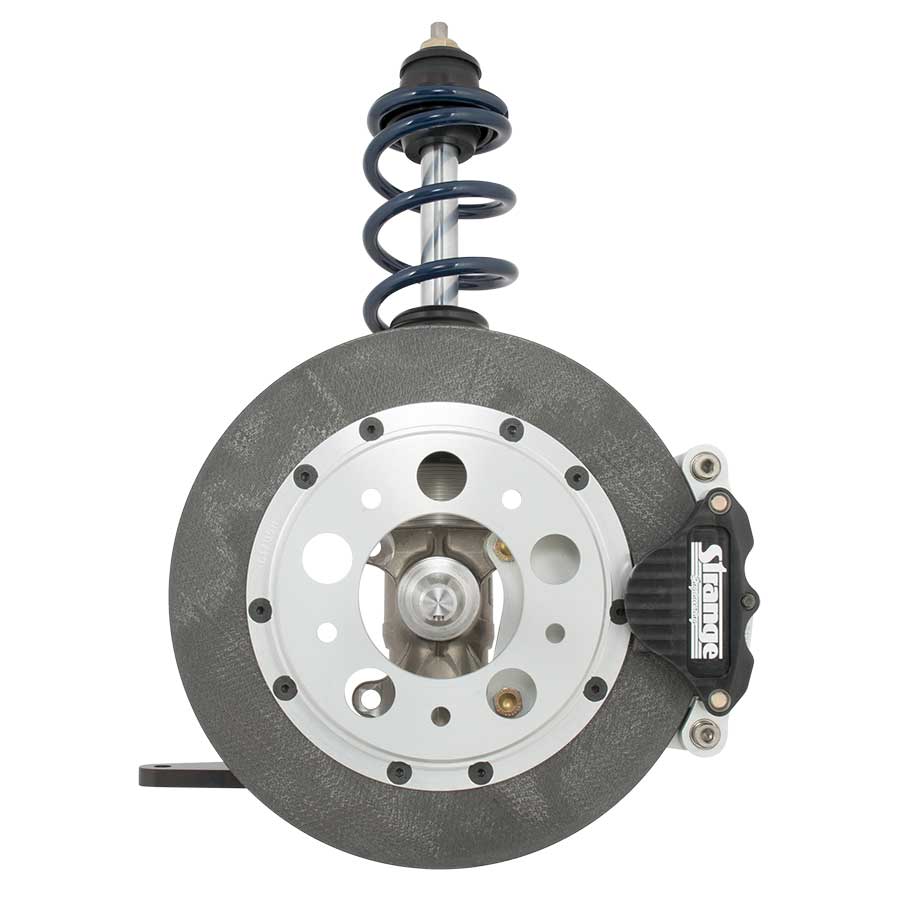

Strange Ultra Strut Package                                                                     Externally Adjustable                                                                                 Lightweight Carbon Brake Kit For Spindle Mount Wheels

/, Drag Race, Shocks / Struts / Springs, Ultra Strut Packages/

Strange Ultra Strut Package                                                                     Externally Adjustable                                                                                 Lightweight Carbon Brake Kit For Spindle Mount Wheels

Strange Ultra Strut Package                                                                     Externally Adjustable                                                                                 Lightweight Carbon Brake Kit For Spindle Mount Wheels

$4,600.00

Part Number: PSS210

Drag Race Use Only


For Spindle Mount Wheels

Require Wheels Designed For Anglia Spindles
These are not the same as Strange aluminum strut spindles


Features

Compact design suits low profile body styles
Integral body & spindle allows piston to travel below spindle center-line
Provides additional stroke in a confined space and greater shaft stability

Externally adjustable for rate of extension
Allows fine tuning of front suspension


Strut Package Includes

Stud Mount Ultra Struts
• Stainless steel heat treated bodies – Made in USA
• Externally adjustable for extension rate
• Valved specifically for high horsepower vehicles
• Custom valving available
• Choice of 2.50″ or 3.50″ stroke
• 1″ internal travel limiter available on request
• Designed, machined, & assembled by Strange Engineering

Top Spring Seats with Encased Torrington® Bearings
• Reduces steering friction
• Allows height adjustments without springs binding

Billet Aluminum Steering Arms
• Provides stiffness while remaining lightweight
• Includes chrome moly rod ends for outer tie-rods

Timken® Bearings & Races
• Supplied to adapt Anglia style wheels
• Includes oil seals, washers, cotter pins, and spindle nuts

Lower Control Arm Fabrication Kit – S3418 / S3419
• Semi-finished TIG Welded 4130 lower control arms
• Inner tubing adapters
• Teflon® lined spherical ball LCA bearings
• Choice of 7/16″ or 1/2″ Teflon® lined chrome moly rod ends
• NAS bolts, ESNA flanged locking nuts, & 3AN washers

Premium Hyperco Springs
• Chrome silicone steel
• Magnaflux inspected
• Dark blue powder coated
• Choice of spring rate

Choice of Spindle Mount Carbon Brake Kit

C4600WC
• 10″ carbon rotors
• Billet aluminum hats & retaining rings
• Single 1 3/4″ piston billet aluminum calipers
• Slider assemblies featuring Garlock bearings
• Carbon brake pads
• Billet aluminum caliper mounts

C4690WC *
• 11″ carbon rotors
• Billet aluminum hats & retaining rings
• Single 2″ piston billet aluminum calipers
• Slider assemblies featuring Garlock bearings
• Carbon brake pads
• Billet aluminum caliper mounts
• Provides more starting line holding power and high end braking

* Requires forged or billet wheels due to clearance restraints


Note
Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings


Stroke

3.50″
Provides the most weight transfer

3.50″ With 1″ Internal Travel Limiter – 2.50″ Stroke
When the taller body is preferred, but with less stroke

2.50″
The most compact version of this strut


It is best to consult your chassis builder for their recommendations

For any questions regarding this package, please contact a Strange Sales Associate

Parts List and Installation Guide pdf File

Ultra Strut Instructions

Description

Ultra Strut pkg. / Externally adjustable / carbon brake kit

Additional information

Weight 47.00 lbs
