Strange Lower Control Arm Kit                                                                               For Ultra & Altered Ultra Struts – 1/2″ ID Rod Ends

///, Altered Strut Packages/

Strange Lower Control Arm Kit                                                                               For Ultra & Altered Ultra Struts – 1/2″ ID Rod Ends

Strange Lower Control Arm Kit                                                                               For Ultra & Altered Ultra Struts – 1/2″ ID Rod Ends

$350.00

Part Number: S3419

Application

Ultra Struts
Altered Ultra Struts


Description

Lower Control Arm Kit
For frame tabs using 1/2″ bolts
Provides parts necessary to fabricate lower control arms

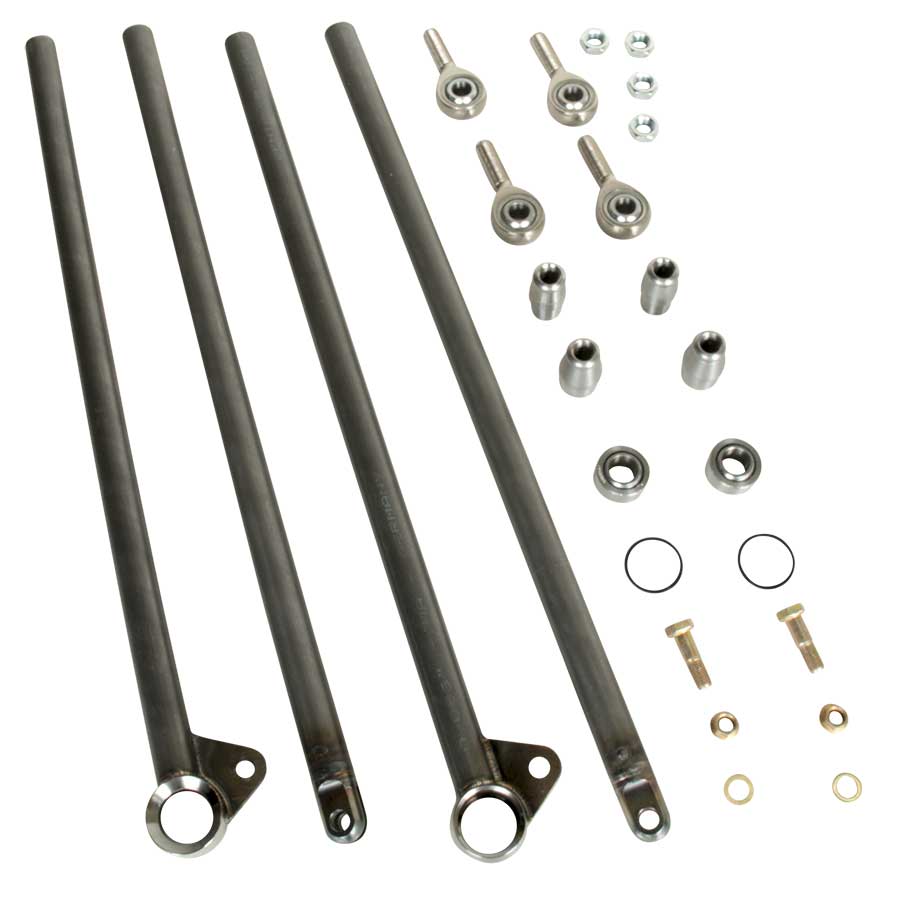

Kit Includes

4130 Chrome Moly Rear Arm
• TIG welded
• Bearing end installed
• Front arm mounting tab
• Left & right hand sides
• .875″ OD x .083″ wall x 20″ long tubing

4130 Chrome Moly Front Arm
• TIG welded
• Clevis installed
• .875″ OD x .058″ wall x 20″ long tubing

4130 Chrome Moly Tube Adapters
• (2) .700″ OD threaded 1/2″-20
• (2) .755″ OD threaded 1/2″-20

Teflon® Lined Bearings
• COM-10 spherical bearings
• Includes Spirolox® retaining rings

Chrome Moly Rod Ends
• 1/2″-20 shank / .500″ ID ball
• Teflon® lined
• Includes jam nuts

Premium Hardware
• 3/8″-24 x 1.215″ air frame bolts
• 3/8″ 3AN washers


Related Components

Tube kit for 7/16″ frame tabs…. S3418



Description

Ultra Strut Lower Control Arm Kit For 1/2″ Frame Tab Bolts

Additional information

Weight 2.00 lbs
