Drag Race Use Only
Requires Specific Aftermarket Components
Case – Designed to utilize 10″ gear sets
Pinion Support – Ability to use 35 spline pinion gear
Housing – Additional clearance provided for 10″ ring gears
Will Not Fit OEM Cases or Housings
The ring gear is manufactured to 10″ specifications before the OD is reduced to 9.4″
Resulting in a much stronger tooth design than possible with 9″ or 9 1/2″ Pro Gears
Machined From 9310 Forged Steel
Heat Treated to Optimize Material Properties

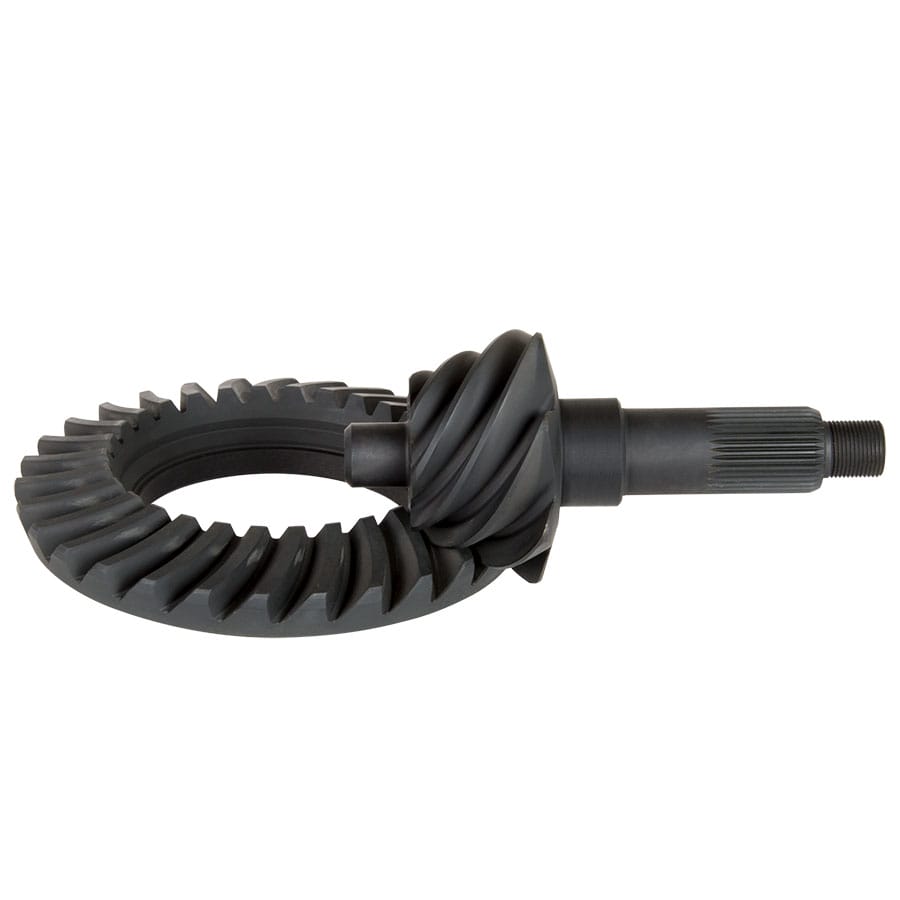

Matched Ring & Pinion Set
Ring Gear
– 9.4″ actual OD
– Tooth count 30
– 10 bolt holes in each bolt size
– 7/16″-20 RH threads & 1/2″-20 RH threads
Pinion
– 35 spline shaft
– Tooth count 7
– 1″-14 RH threads
Unsure about your application?
Please contact a Strange Sales Associate to discuss your vehicle
INSTALLATION KITS
Using Tapered Bearing Pinion Support
Ultra & Billet cases….. R5238UC / R5238UCR
Using Ball Bearing Pinion Support
Ultra & Billet cases… R5238UCB / R5238UCBR
