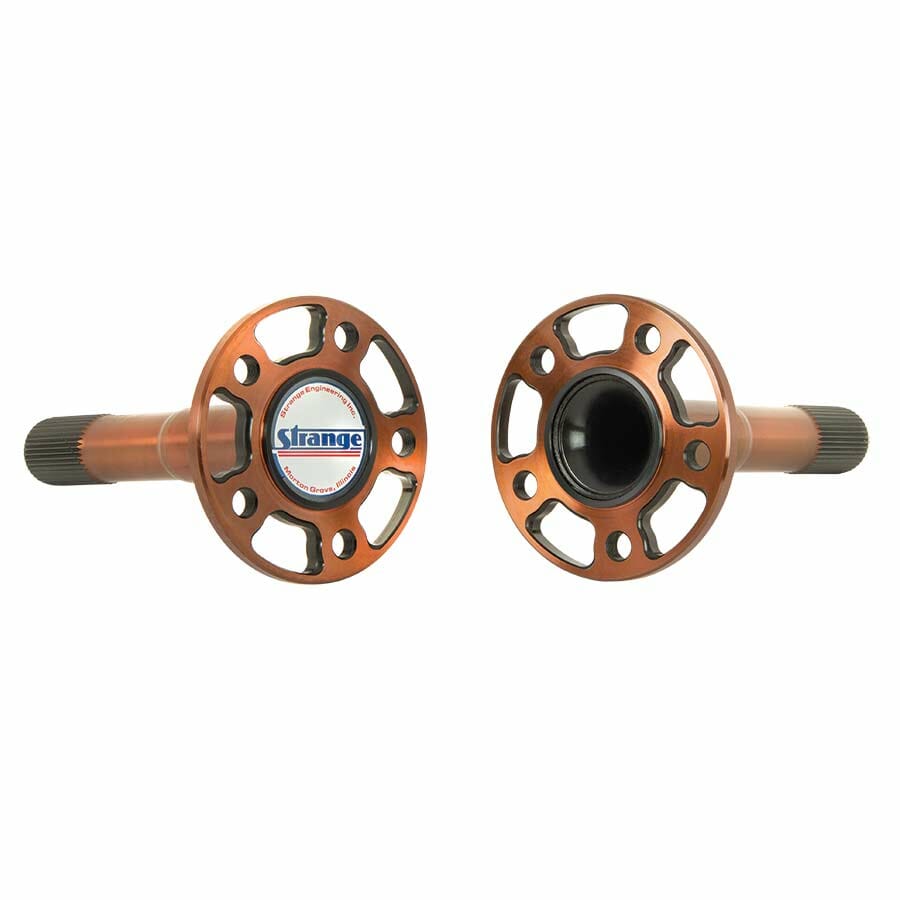

Ultra Lite Axle Flange
For Pro Race Hy-Tuf Axles

$100.00

Part Number: A1006


Optional Service
Available when purchasing related Pro Race axle packages
28, 31, 33, 35 or 40 spline solid axles need to be custom made
Please allow for additional production time

40 Spline Gun Drilled Axles
In-stock with the Ultra Lite Flange option
Flange accepts a 5 lug bolt pattern
Requires bolt circle to be machined
Usually ships in five working days

This machining process removes additional rotational weight from the axle flange
Available for Pro Race axles, this option needs to be chosen when the order is placed
Milling is performed before heat treating and not available for existing axles

Solid axles will lose approximately .85 lbs per axle

Gun drilled axles ordered with this option will have additional material removed from
underneath the logo area, tapering down to the bore similar to the shape of a funnel
Weight savings approximatly 1.5 lbs per axle

It may be possible to have the additional machining performed on solid axles
Availability will be determined by your axle & bearing combination
Please contact a Strange Sales Associate for more information


This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Ultra Light Flange Option for Pro race axles
