Double Adjustable Rear Shock                                                                       1970-1981 Camaro / Firebird / Trans Am

/, GM Bolt-in Shocks / Struts, Street / Track, Street / Track, Shocks / Struts / Springs, GM Bolt-In Shocks / Struts, GM, GM, Shocks / Struts / Springs, Bolt-In Shocks / Struts/

Double Adjustable Rear Shock                                                                       1970-1981 Camaro / Firebird / Trans Am

Double Adjustable Rear Shock                                                                       1970-1981 Camaro / Firebird / Trans Am

$250.00

Part Number: S5068

Applications

1970-1981 Camaro / Firebird / Trans Am


Description

Double Adjustable Aluminum Shock
Rear – Sold as each


Drag Racing
Softening extension allows more downward force on the rear tires
Stiffening compression delays the return to normal ride height


Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics


Rotating Knobs Clockwise Stiffens Valving

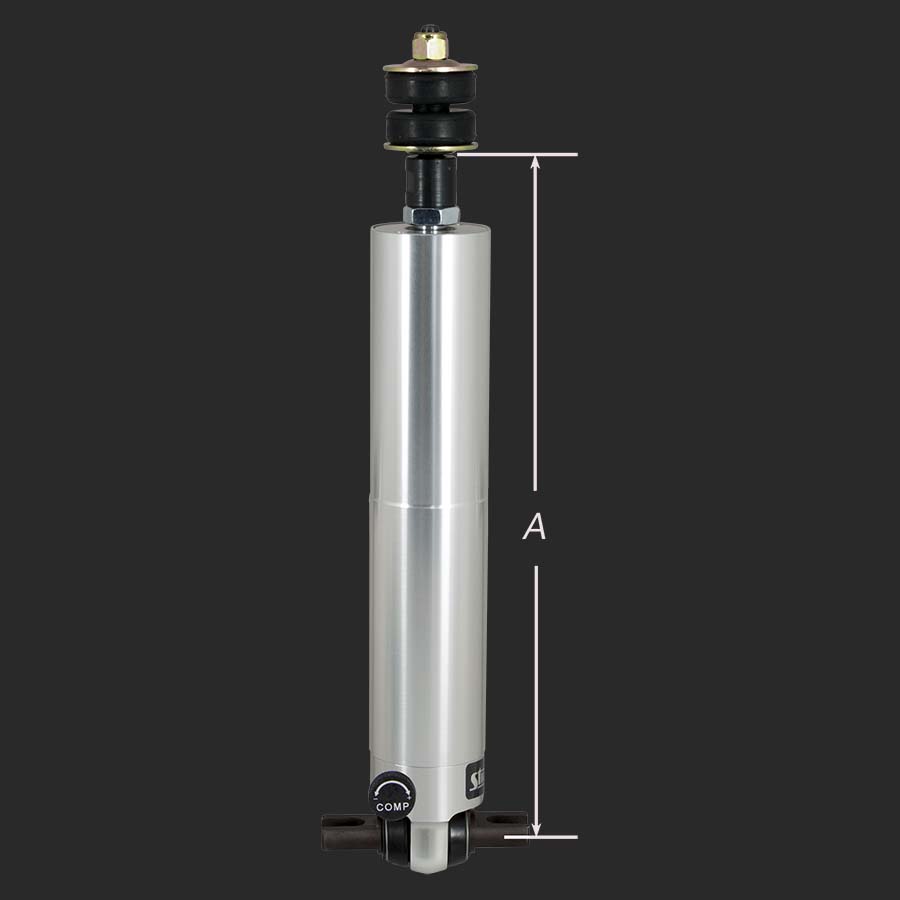

Dimension A

Extended 20.09″ / Compressed 12.88″


Features

• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved


Includes

– Upper stud with rubber cushions
– Concave washers & lock nut
– Lower polyurethane bushing
– Lower heavy duty T-bar


Front Shock

Single adjustable………………….. S5267



Description

GM Double Adjustable Rear Shock

Additional information

Weight 4.40 lbs
