Single Adjustable Front Shock
Multiple GM Applications


Part Number: S5267


1971-1975 Bel Air
1971-1972 Biscayne
1970-1981 Camaro
1971-1996 Caprice
1964-1967 Chevelle / Malibu
1958-1996 Impala

1964-1967 Cutlass / 442

1971-1981 Bonneville
1970-1981 Firebird / Trans Am
1969-1987 Grand Prix
1964-1967 GTO
1964-1967 Tempest / Lemans


Single Adjustable Aluminum Shock
Front – Sold as each

Requires Modification of Stock A-Arms

Soft Settings
For Drag Racing
Allows weight transfer to increase traction

Medium Settings
For Performance Street
Enhances handling & cornering characteristics

Stiff Settings
For Road Racing
Provides very aggressive control over body roll

Rotating Knob Clockwise Stiffens Valving

Dimension A

Extended 14.38″ / Compressed 9.5″


• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control

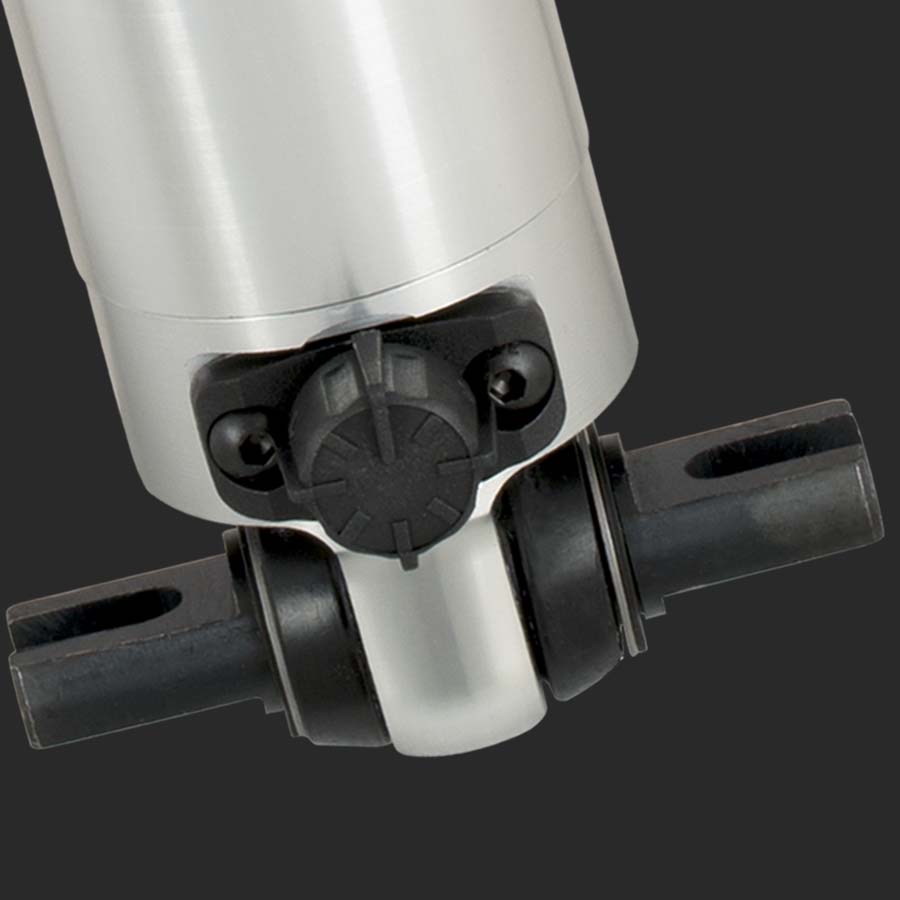

• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved


– Upper stud with rubber cushions
– Concave washers & lock nut
– Lower polyurethane bushing
– Lower heavy duty T-bar



GM Single Adjustable Front Shock

Additional information

Weight 3.50 lbs
