Application
Construction of Housing for 1965-1972 Ford F100 Pick-Up
OEM mount locations
Factory 2″ pinion offset to the passenger side
NOTES:
Shock mounts moved down 1.250″ and forward 2.75″ from factory locations
• Improves geometry for lowered vehicles
• Due to less ground clearance, may create issues in 4×4 applications
Description

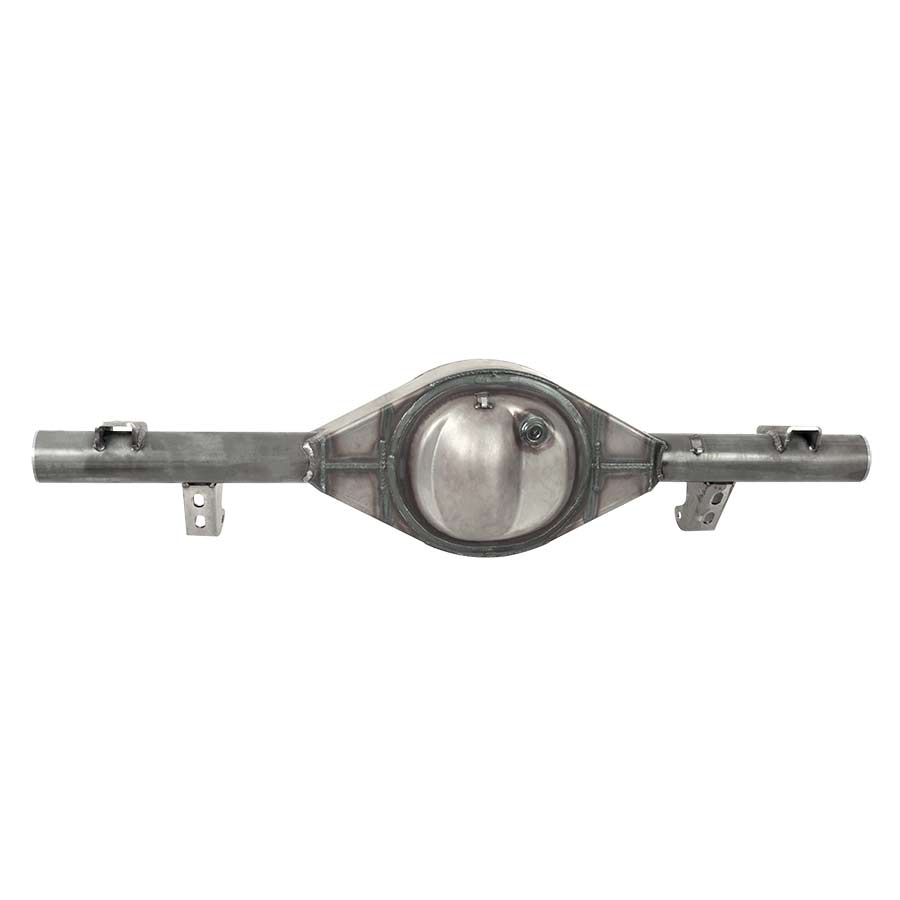

Strange HD Ford 9″ Bolt-in Housing
Perfect base for creating Pro Touring floater housing
Information Required
Housing tube to tube width
Features
Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
Fill & Drain plugs (2) H1117D
• Facilitate fluid changes
Tubing – H1139
• Mild steel
• 3″ OD x .250″ wall
• Brake line tabs
Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity
Ford F100 Mounts
• Heavy duty leaf & shock mounts
Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality
Related Components
Gasket………………………… H1111S
Pro Touring floater kit…………. F5010
See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
