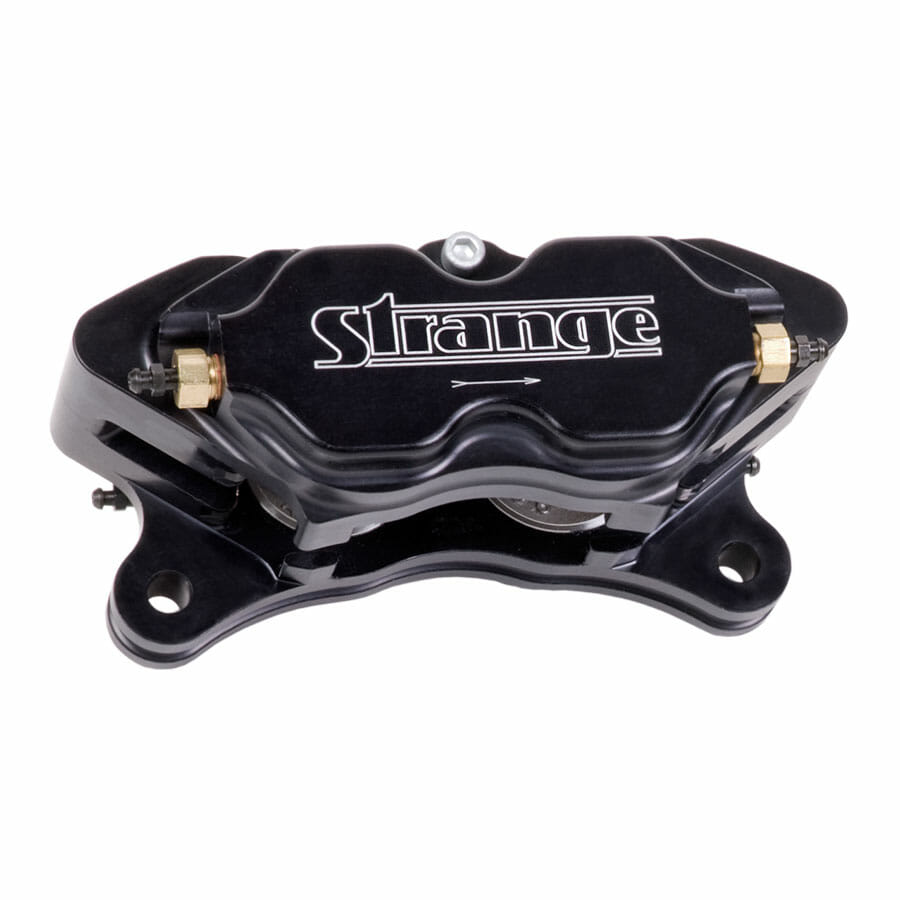

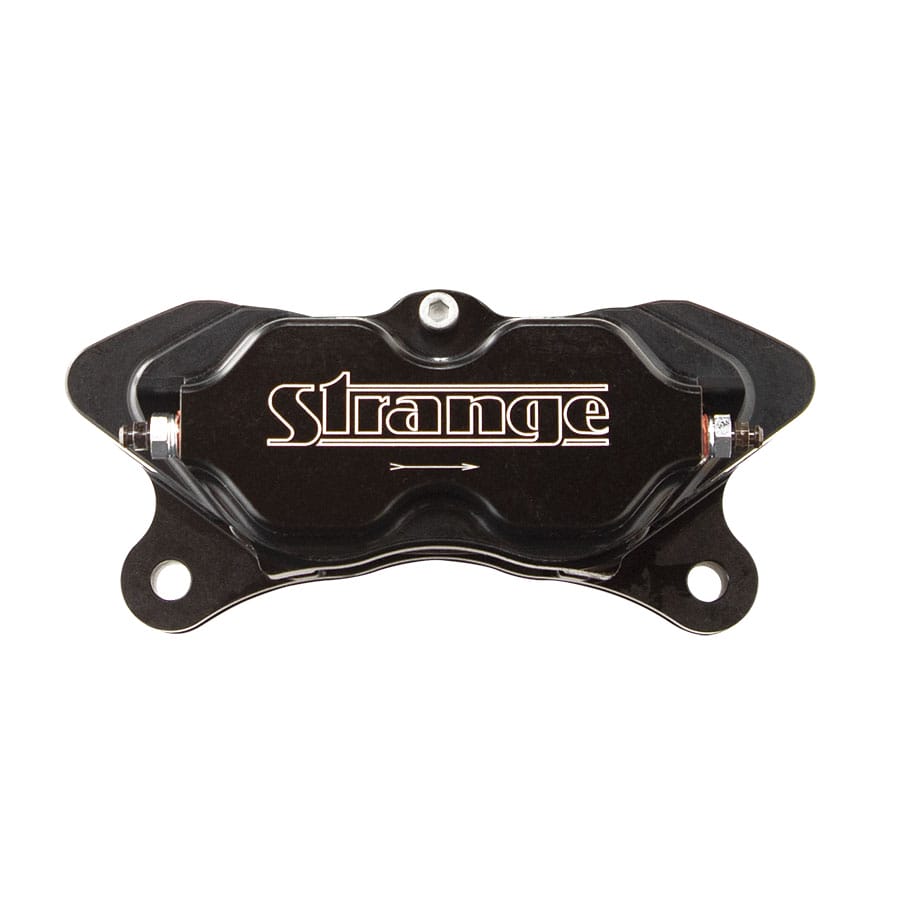

Strange 4 Piston Directional Caliper
Right Hand Side

Application
Strange Brake Kits – Right Hand Side

Four Piston Aluminum Directional Calipers
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise
• Mounting bolt holes are on 5.250″ centers

Brake Fitting, Hose and Line Are Not Included
Caliper is tapped 1/8″ NPT – Fitting available separately

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque to 25 ft lbs

1/8″ NPT x 3 AN Fittings
Straight……………P2316
45° angle………..P2323
90° angle………..P2322

Brake Pads
Soft metallic – B5010
Hard metallic – B5020

Calipers With Pads
B1850 / B1855
