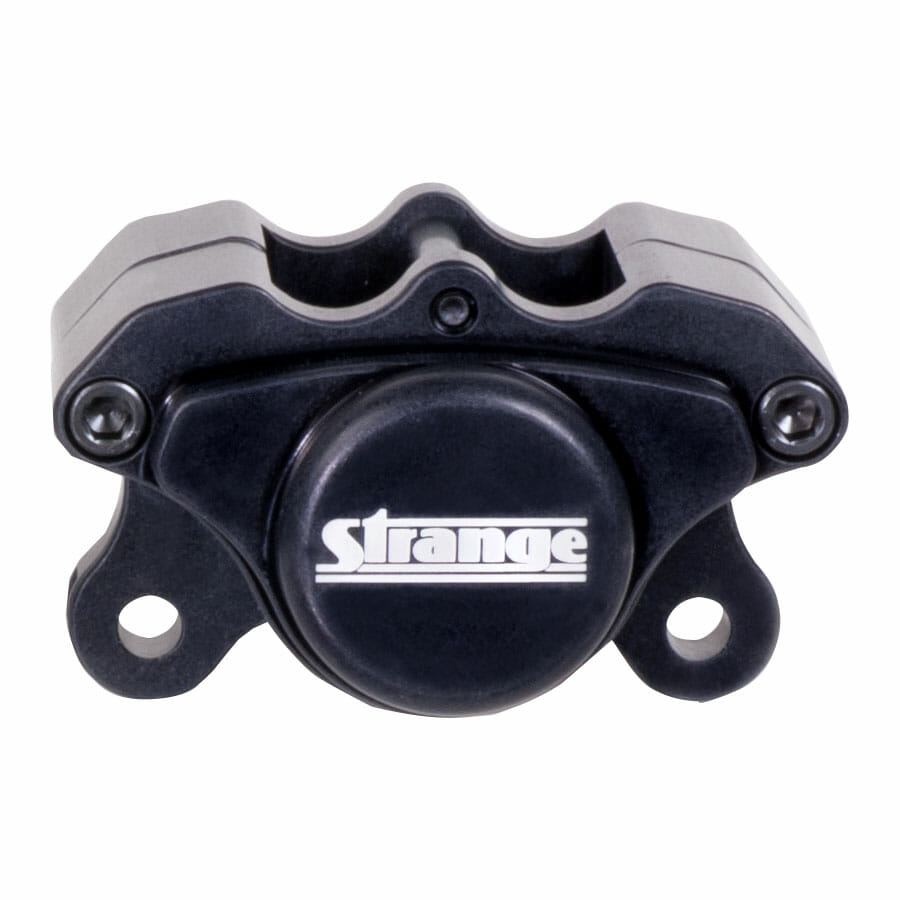

Two Piston Aluminum Caliper
For Strange Medium Duty Brake Kits


Part Number: B2560

Designed Specifically For Drag Racing

Strange Front Medium Duty Brake Kits
B4446WC / B4453WC / B4454WC

Two Piston Billet Caliper
• Billet aluminum body is extremely ridged reducing spread and flex
• 1 3/4″ stainless steel pistons resist corrosion
• Mounting bolt holes are on 3.875″ centers

Brake Fitting and Hose Are Not Included
Caliper is tapped 1/8″ NPT – Fitting available separately

Brake Pad – B2510

1/8″ NPT x 3 AN Fittings
Straight – P2316
45° angle – P2323
90° angle – P2322

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque to 25 ft lbs


Strange 2-piston caliper- ea
