Pro Carbon Caliper Kit With Pads
For Floater Kits, Pro Mod Hsgs, & Live Axles


Part Number: B5045

Designed Specifically For Drag Racing

10 1/2″, 12″, & 12 1/4″ Live Axles
Floater kits & Pro Mod rear ends equipped with carbon brakes

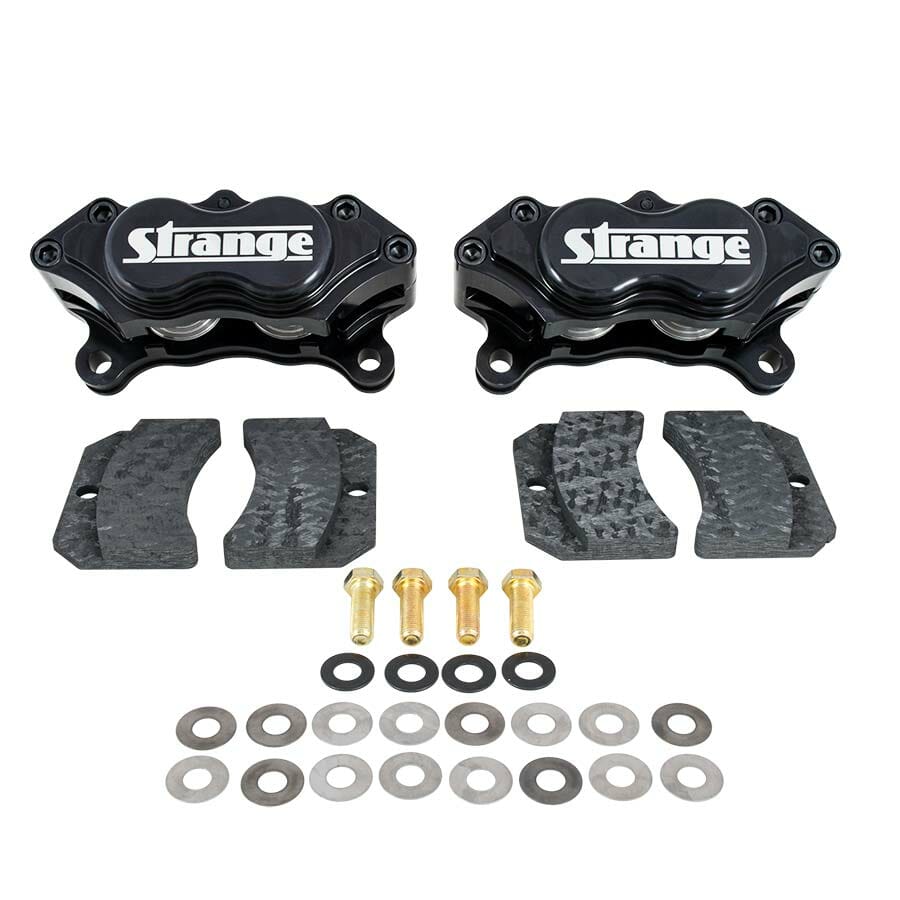

Kit Includes

Four Piston Ultra CalipersB5040
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel

Mounting Bolts
• Four 3/8″-24 x 1.127″ NAS bolts
• Ensures mounting integrity

Carbon PadsL4050H
• Designed for Strange carbon rotors
• Solid surface extends pad life

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque to 25 ft lbs


Four piston carbon caliper kit with standard pads (For Pro carbon brake kits used in floater kits, 10.5, 12, or 12.25 Live Axles)
