Designed Specifically For Drag Racing
Application
Strange front brake kit – B4161WC2
Strange rear brake kits – B1723WC2 / B1724WC2
Steel Rotor
• Internal cogs allow rotor to float
• Allows for expansion variances between aluminum & steel
• Slots reduce rotating weight and increase air flow

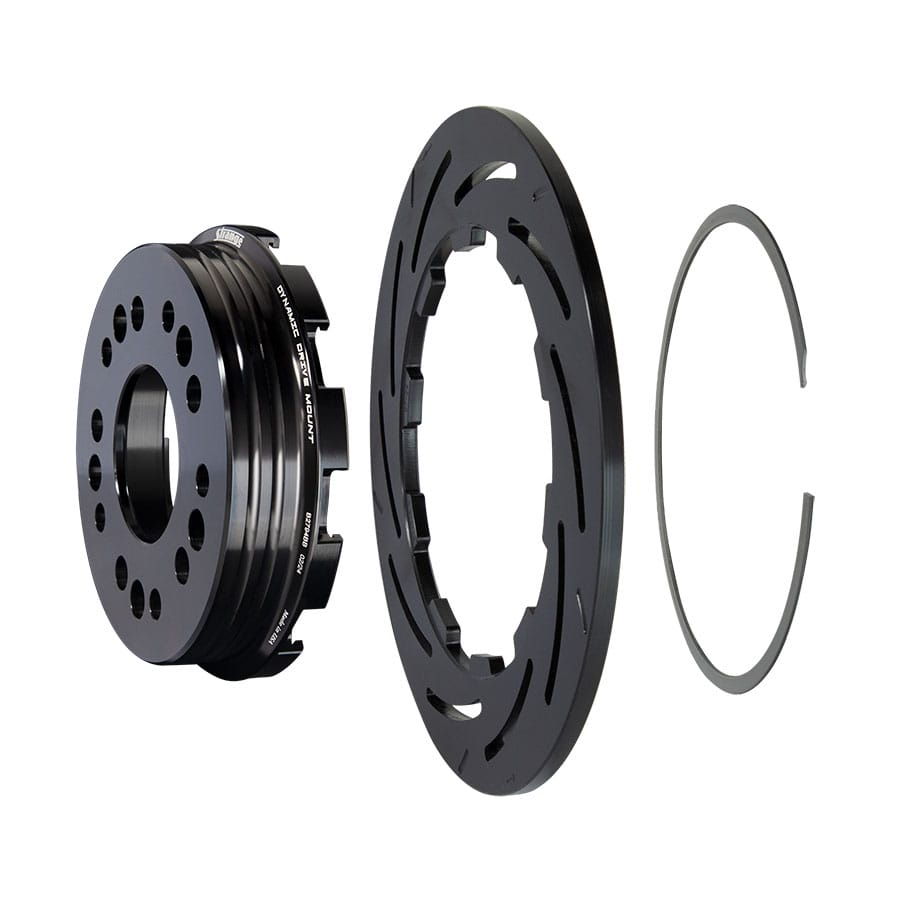

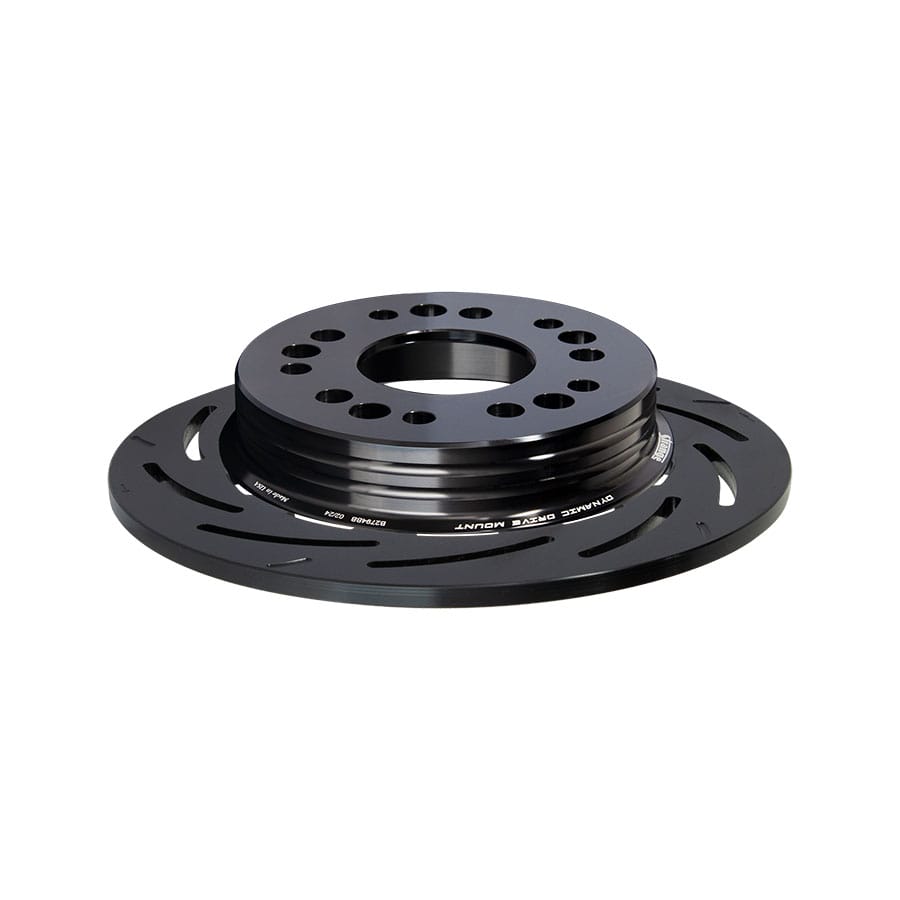

Dynamic Drive Mount (DDM) Billet Aluminum Hat
• DDM system secures the rotor and allows for rotor thermal expansion
• Warping, coning, and cracking are drastically reduced compared to bolt retention designs
• Internal Spirolox eliminates bolts and hardware that require periodic maintenance
• Additionally reduces rotating weight
Rotor
11.250″ O.D. x .355″ thick
Discard at .312″
Hat
6.670″ O.D. x 6.252″ I.D.
.300″ thick mounting face
3.248″ / 2.798″ stepped bore brake register
(5) .567″ holes on 4 1/2″ B.C.
(5) .620″ holes on 120mm B.C.
(5) .488″ holes on 4 3/4″ B.C.
Offset – 1.360″
Measured from inside face of hat to inner pad surface
Assembly Weight
6.6 Lbs
