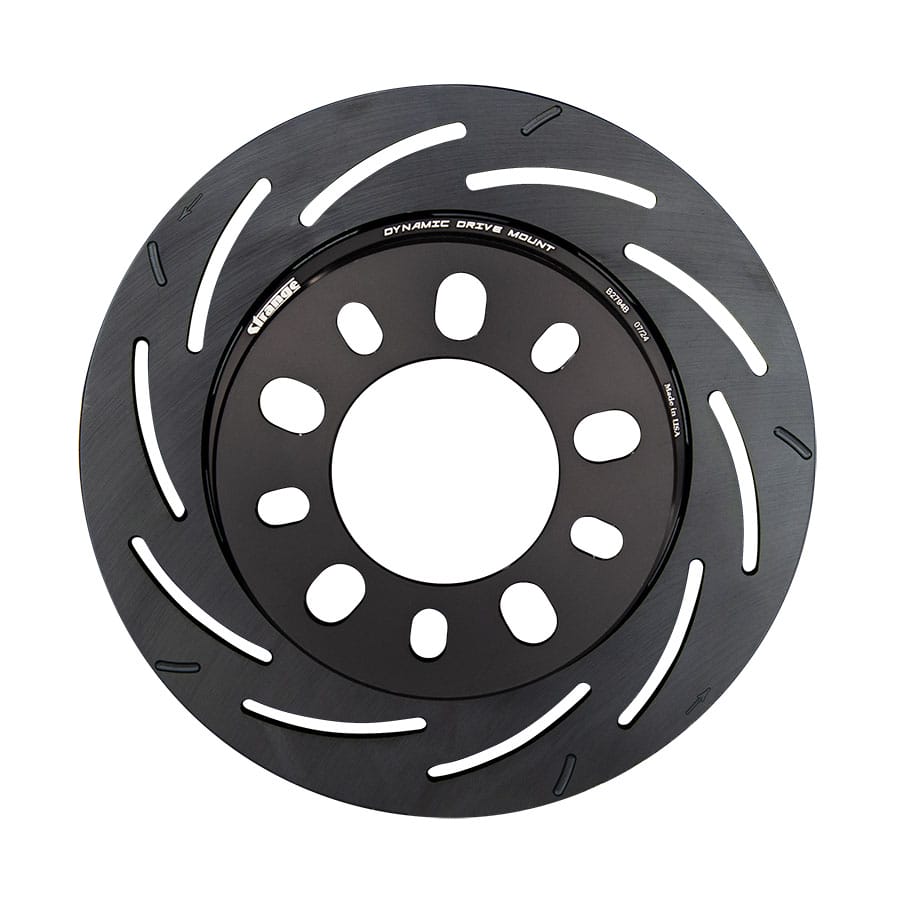

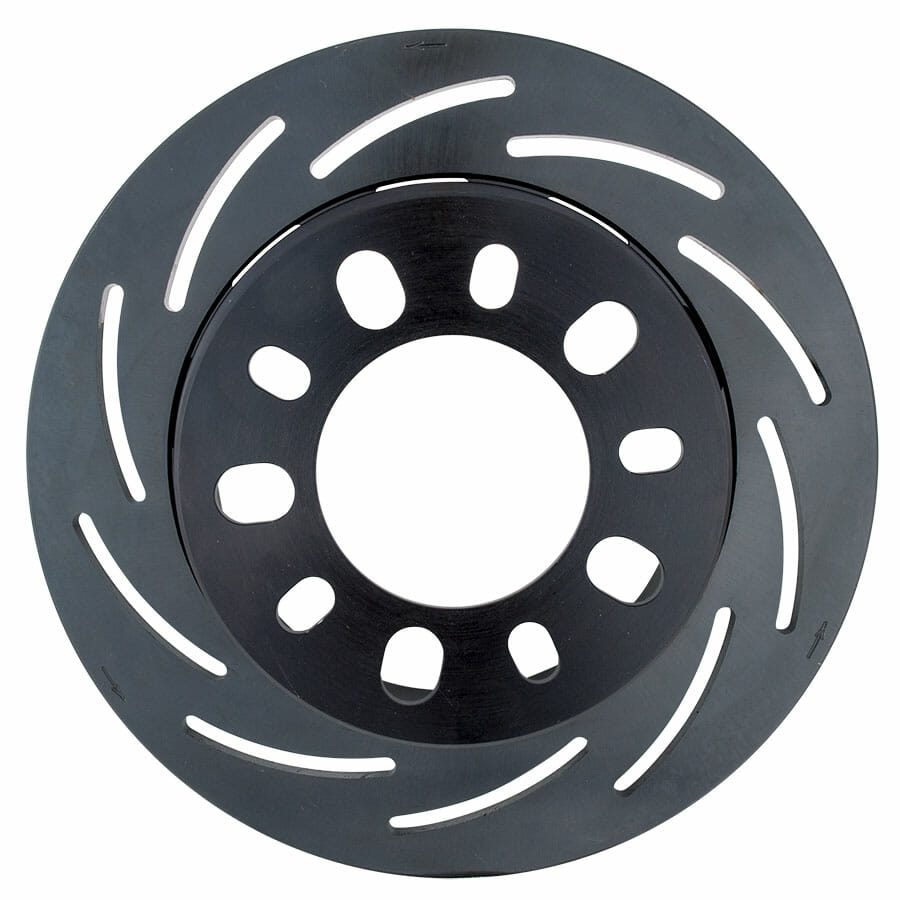

Strange 11.250" 2 Piece Rotor Assembly
For Pro II Brake Kits - Left Hand Side

$225.00

Part Number: B2794L


Designed Specifically For Drag Racing

Application
Strange Pro II Brake Kits – Left Hand Side
Front Pro II Kits with 2 or 4 Piston Calipers
All Rear Pro II Kits

For Pro II Stainless Kits – B2794LS

Benefits
Cogs on rotor & hat engage and a Spirolox® secures the assembly
Allows for axial and radial rotor growth as temperatures increase
Uninfluenced by hat, rotor warping and coning is drastically reduced

Steel Rotor
• Internal cogs allow rotor to float
• Allows for expansion variances between aluminum & steel
• Slots reduce rotating weight and increase air flow

Aluminum Hat
• 6061-T6511 billet aluminum
• Reduces rotating weight
• Cog & ring system secures rotor while allowing for thermal expansion
• Eliminates crack formation common to bolt retention designs

Dimensions

Rotor
11.250″ OD x .355″ thick
Discard at .312″

Hat
6.670″ OD x 6.302″ ID
.250″ thick face
4 1/2″, 4 3/4″, & 5″ Uni-Lug BC
For 1/2″ & 5/8″ wheel studs

Offset
2.225″ – Measured from inside face of hat to inner pad surface

Assembly Weight
6.7 Lbs

Right hand rotor – B2794R
Front brake pad – B2510 / B5010
Rear brake pads – B5010 / B5020 / B5022


Description

Two piece 11.250″ LH steel rotor assembly

Parts List and Installation Guide pdf File

×
