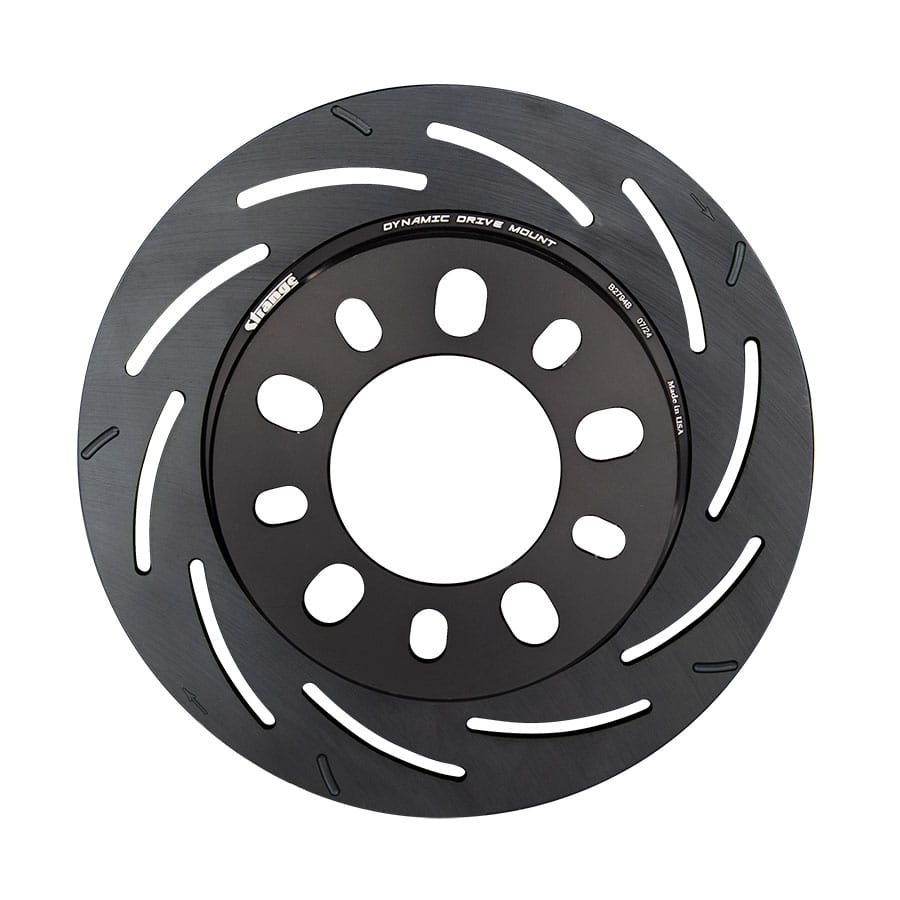

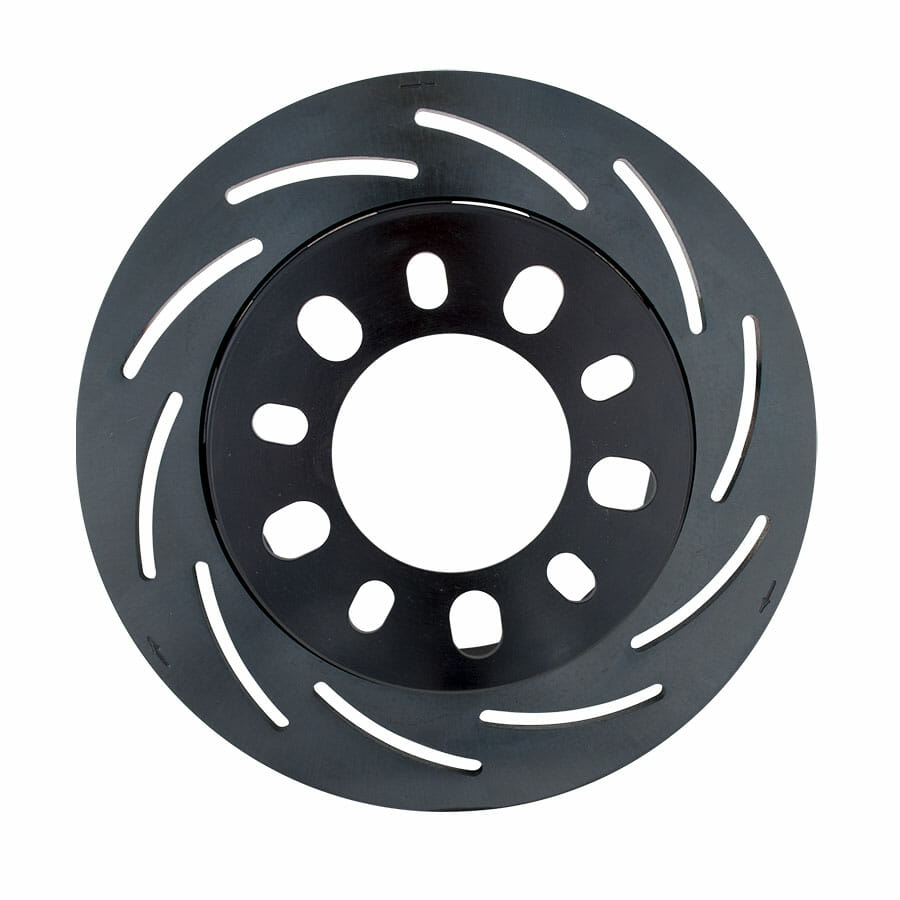

Strange 11 1/4″ 2 Piece Rotor Assembly                                                               For Pro Series II Brake Kits – Right Hand Side

/, Drag Race, Brake Kits / Components, Rotors, Ford, Ford, GM, GM, Rotors, Mopar, Mopar, Rotors/

Strange 11 1/4″ 2 Piece Rotor Assembly                                                               For Pro Series II Brake Kits – Right Hand Side

Strange 11 1/4″ 2 Piece Rotor Assembly                                                               For Pro Series II Brake Kits – Right Hand Side

$195.00

Part Number: B2794R

Applications

Strange Pro Series II Brake Kits – RH Side
Front Kits with 2 or 4 Piston Calipers
All Rear Kits

Benefits
Mating cogs on rotor and hat engage while a Spirolox® secures assembly
Design allows for axial and radial rotor growth as temperatures increase
Uninfluenced by hat, rotor warping and coning tendencies are drastically reduced

Steel Rotor
– Internal cogs allow rotor to float
– Allows for expansion variances between aluminum & steel
– Slots reduce rotating weight and increase air flow

Aluminum Hat
– 6061-T6511 billet aluminum
– Reduces rotating weight
– Cog & ring system secures rotor while allowing for thermal expansion
– Eliminates crack formation common to bolt retention designs

Dimensions

Rotor
11.250″ OD x .355″ thick
Discard at .312″

Hat
6.670″ OD x 6.302″ ID
.250″ thick face
4 1/2″, 4 3/4″, & 5″ Uni-Lug BC
For 1/2″ & 5/8″ wheel studs

Offset
2.225″
Measured from inside face of hat area to inner pad surface

Assembly Weight – 6.7 Lb



Related Components

Left hand rotor………………. B2794L
Stainless steel……….. B2794RS / B2794LS
Front brake pad……………… B2510
Rear brake pads… B5010 / B5020 / B5022

Parts List and Installation Guide pdf File

Description

Two piece 11.250″ RH steel rotor assembly

Additional information

Weight 7.80 lbs
