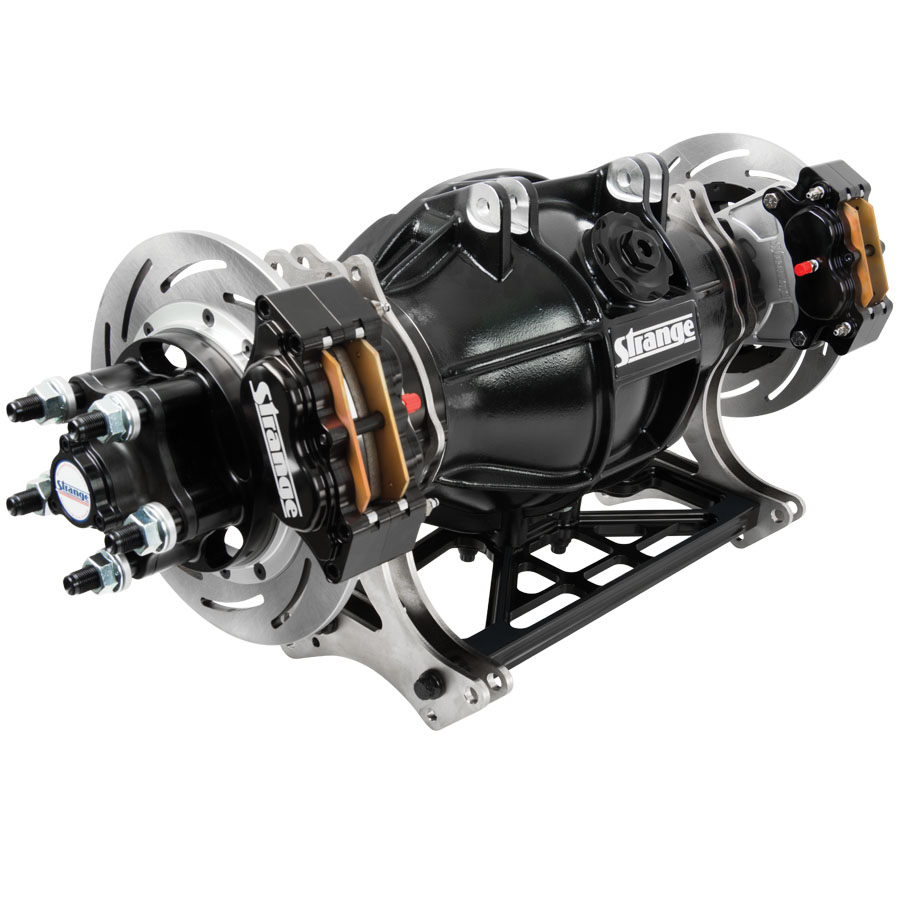

Strange Pro Mod Aluminum Housing
16", 17", 18", 19", 20", 21", 22", or 23" Four Link Centers
Includes Stainless Steel Dynamic Drive Mount Brake Kit

$7,550.00

Part Number: H1182

Pro Mod Floater Housing
Includes stainless steel brake kit
• Available in 16″, 17″, 18″, 19″, 20″, 21″, 22″, or 23″ 4-link centers
• Choice of 4 3/4″, 5″, or 5 1/2″ bolt circle

4-Link Plates, Axles, & Center Section Sold Separately

Advantages
• Housing supports weight, bending loads, and tire shake
• Axle shafts only requirement is to transfer torque
• Prevents the possibility of axle flange breakage
• Extremely rigid assembly increases gear life
• Lighter than comparable fabricated steel housings

Available Wheel to Wheel Widths
16″ 4-Link Centers
31.750″ / 32.750″ / 33.250″ / 33.750″ / 34.250″ / 34.750″ / 41.00 *, 42.00 *

17″ 4-Link Centers
32.750″ / 34.250″ / 34.750″ / 42.00 *

18″ 4-Link Centers
33.750″ / 34.750″ / 35.250″ / 35.750″ / 36.250″ / 36.750″ / 43.00 *, 44.00 *

19″ 4-Link Centers
34.750″ / 36.250″ / 36.750″ / 44.00 *

20″ 4-Link Centers
35.750″ / 36.750″ / 37.250″ / 37.750″ / 38.250″ / 38.750″ / 45.00 *, 46.00 *

21″ 4-Link Centers
36.750″ / 38.250″ / 38.750″ / 46.00 *

22″ 4-Link Centers
37.750″ / 38.750″ / 39.250″ / 39.750″ / 40.250″ / 40.750″ / 47.00* , 48.00 *

23″ 4-Link Centers
38.750″ / 40.250″ / 40.750″ / 48.00 *

* 4 3/4″ & 5″ Bolt Circles Only
Call For Other Possibilities

Housing
• 206-T4 cast aluminum
• Hot Isostatic Pressed to ensure casting integrity
• Black Enduraguard® finish
• Large fill cap allows for gear inspection
• Magnetic drain plug
• Lug design prevents plate & tube rotation
• Integral upper wheelie bar mounts
• Designed & machined by Strange
• Material made in USA

Four Link Spacer Plates
• 6061-T6511 billet aluminum
• Pockets engage housing lugs
• Lightened for weight reduction
• O-rings ensure sealing integrity
• Black anodized

Bottom Four Link Brace
• 6061-T6511 billet aluminum
• Eliminates lower 4 link plate welding
• Lightened for weight reduction
• Black anodized finish

Next Generation Floater Spindles
• 4130 chrome moly
• Increased wall thickness
• Machined with large inner bearing radius
• Vastly increases bending load strength
• Prevents spindle elongation
• Press fit into housing tubes
• Inner end secured by internal locking nut

Housing Tube Ends
• 6061-T651 billet aluminum
• Internal pockets engage housing lugs
• Prevents tube rotation
• Black anodized finish

Solid Preload Spacer
• Stainless steel
• Machined to precise width
• Prevents excessive bearing preload

Spindle Lock System
• Billet heat treated spindle nuts
• Threaded & non-threaded holes
• Dog pilot set screws engage washer
• Washer indexes on spindle keyway
• Maintains consistent bearing preload

Timken® Bearings & Races
• Oversized to increase load capacity
• Ensures long bearing life
• Proven quality from a trusted manufacturer

DDM Floater Hubs
• 2024-T351 billet aluminum
• Choice of 4 3/4″, 5″ or 5 1/2″ bolt circle
• Integral Dynamic Drive Mount (DDM)
• Secures rotor & allows for thermal expansion
• Drastically reduces rotor warping, coning & cracking common with other systems
• Black anodized finish

Press-in Wheel Studs
• 8740 chrome moly steel
• Anti-rotational head design
• 5/8″-18 available in two lengths *
• Aluminum anti-marring washers
• Flanged steel lug nuts

* Please supply wheel thickness

Drive Plates
• 8620 chrome moly steel
• 40 spline with 45° pressure angle
• Scalloped to remove unnecessary weight

Choice Of Stainless Steel Rotors
• Stainless steel is highly resistant to heat and corrosion
• Exhibits 48% greater yield strength at 1,000° F compared to carbon steel
• Fully ground surface

Evolution S StainlessF2098NL / F2098NR
• Unique Aero Slot design reduces rotating weight and promotes even heat dissipation
• Scalloped design further reduces rotating weight
• Machined for Dynamic Drive Mount system
• 11.500″ O.D. – .355″ Thick
• 4.6 lbs

Heavy Duty StainlessF2056NL / F2056NR
• Directional slots reduce rotating weight
• Greater rotor mass for the most extreme conditions
• Machined for Dynamic Drive Mount system
• 11.500″ O.D. – .355″ Thick
• 5.3 lbs

Four Piston Billet Evolution 4 CalipersB1900
• Stainless steel pistons mitigate heat transfer to brake fluid
• Reverse dish pressure vessel piston maximizes stiffness
• High retraction piston and O-ring design to eliminate drag during acceleration
• Computer finite element analysis (FEA) optimized and field-tested calipers- Evolution 4 design improves piston retraction, pedal feel, and stiffness resulting in improved pad wear and exemplary braking efficiency
• All pistons are 1.750″ for increased clamping force

DRM-35 Metallic Brake PadsB5020
• Provides high resistance to brake fade
• Recommended for vehicles going over 150 MPH in the 1/4 mile
• Maintains decent starting-line cold holding capabilities
• May leave pad residue on rotors when not using parachute
• While common, it’s recommended to remove when installing new pads

Includes
• Premium LubeLocker® center section gasket
• 3/8″-24 self-locking jet nuts
• 3/8″ 3AN washers

Options
Supply 4-Link plates – OPRH40
Supply HD 4-link plates – OPRH44
Supply HD 4-link plates with adjustable shock mounts – OPRH45*

* Allows Ride Height Adjustments Without Affecting Stroke

Related

Gun Drilled Floater Axles
Hy-Tuf 24″ or less – A2040H24
Hy-Tuf 24 1/8″ to 28″ – A2040H28

300M 20″ or less – A2040M
300M 20 1/8″ to 24″ – A2040M24
300M 24 1/8″ to 28″ – A2040M28

Solid Floater Axles
These axles are not stocked
Please allow extra time for manufacturing

Center Section
Ultra – PRF225 / PRF225-10
Billet – PRF425 / PRF425-10

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Pro Mod Aluminum Housing

Strange’s Pro Mod Aluminum Housing are designed to accept an Ultra Case, HD Pro, or most heavy duty aftermarket cases. The housing has clearance to use 9”, 9 1/2”, and 10” development ring gears. The huge filler cap opening allows for inspection of the ring gear teeth without removing the center section. The drain plug features a magnet to retain harmful metallic particles. The upper wheelie bar mounts are cast directly into the main housing.

These housings are available in 16”, 17”, 18”, 19”, 20”, 21”, 22”, & 23” 4-Link centers. Chrome moly 4-Link mounts are not included but are available separately. The included floater hubs and drive plates can be ordered in 4 3/4”, 5”, or 5 1/2” bolt circle. Carbon brake housings come complete with 11” rotors, caliper mounts, calipers, and pads. Steel brake housings now have 11.5” stainless steel rotors, caliper mounts, calipers, and brake pads. Floater axles are in the Floater Kit section, while center sections choices are listed with the HD Pro, Ultra, & Billet Case assemblies.

Designed for the most brutal Drag Race applications.

Full Floaters place the weight of the vehicle on the housing leaving the axle itself free to deliver power to the wheel. The weight-bearing role is taken care of by a spindle that is attached to the tube of the housing. The spindle, hub and a set of bearings are responsible for supporting the weight of the vehicle.
