Strange Pro Mod Aluminum Housing With Carbon Brakes
16", 17", 18", 19", 20", 21", 22", or 23" Four Link Centers

$8,250.00

Part Number: H1180

Application

Pro Mod Vehicles
Using 16″, 17″, 18″, 19″, 20″, 21″, 22″, or 23″ 4-link centers


Description

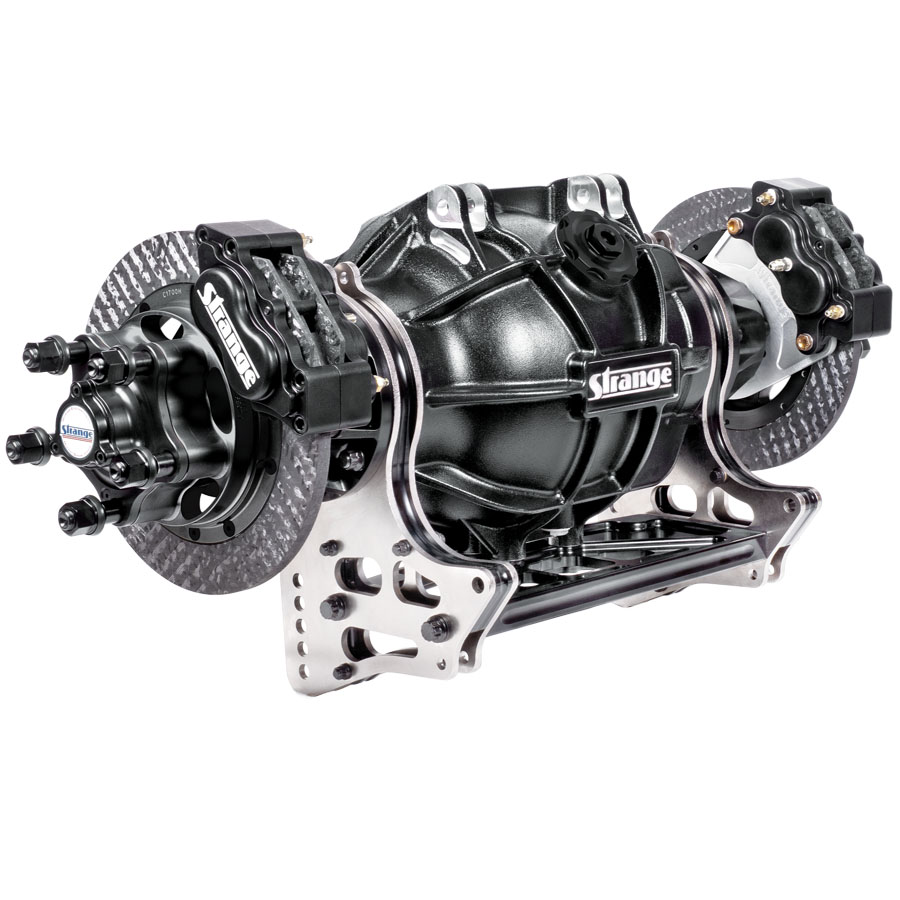

Ultra 4-Link Modular Floater Housing Assembly
Includes Pro Carbon brake kit
Choice of 4 3/4″, 5″, or 5 1/2″ bolt circle

Note
4-Link Plates, Axles, & Center Section Sold Separately


Available Wheel to Wheel Widths

16″ 4-Link Centers
31.750″ / 33.250″ / 33.750″ / 41.00 *

17″ 4-Link Centers
32.750″ / 34.250″ / 34.750″ / 42.00 *

18″ 4-Link Centers
33.750″ / 35.250″ / 35.750″ / 43.00 *

19″ 4-Link Centers
34.750″ / 36.250″ / 36.750″ / 44.00 *

20″ 4-Link Centers
35.750″ / 37.250″ / 37.750″ / 45.00 *

21″ 4-Link Centers
36.750″ / 38.250″ / 38.750″ / 46.00 *

22″ 4-Link Centers
37.750″ / 39.250″ / 39.750″ / 47.00 *

23″ 4-Link Centers
38.750″ / 40.250″ / 40.750″ / 48.00 *

* 4 3/4″ & 5″ Bolt Circles Only

Call For Other Possibilities


Benefits

Safety
• Housing supports weight, bending loads, and tire shake
• Axle shafts only requirement is to transfer torque
• Prevents the possibility of axle flange breakage

Strength
• Extremely rigid assembly increases gear life

Weight
• Lighter than comparable fabricated steel housings


Features

Housing
• 206-T4 cast aluminum
• Hot Isostatic Pressed to ensure casting integrity
• Black Enduraguard® finish
• Large fill cap allows for gear inspection
• Finger grips and hex facilitate cap removal
• Magnetic drain plug
• Lug design prevents plate & tube rotation
• Integral upper wheelie bar mounts
• Designed & machined by Strange
• Material made in USA

Four Link Spacer Plates
• 6061-T6511 billet aluminum
• Pockets engage housing lugs
• Lightened for weight reduction
• O-rings ensure sealing integrity
• Black anodized

Bottom Four Link Brace
• 6061-T6511 billet aluminum
• Eliminates lower 4 link plate welding
• Lightened for weight reduction
• Black anodized finish

Next Generation Floater Spindles
• 4130 chrome moly
• Increased wall thickness
• Machined with large inner bearing radius
• Vastly increases bending load strength
• Prevents spindle elongation
• Press fit into housing tubes
• Inner end secured by internal locking nut

Housing Tube Ends
• 6061-T651 billet aluminum
• Internal pockets engage housing lugs
• Prevents tube rotation
• Black anodized finish

Solid Preload Spacer
• Stainless steel
• Machined to precise width
• Prevents excessive bearing preload

Spindle Lock System
• Billet heat treated spindle nuts
• Threaded & non-threaded holes
• Dog pilot set screws engage washer
• Washer indexes on spindle keyway
• Maintains consistent bearing preload

Timken® Bearings & Races
• Oversized to increase load capacity
• Ensures long bearing life
• Proven quality from a trusted manufacturer

Wheel Hub
• 2024-T351 billet aluminum
• Scalloped with integral rotor mount
• Reduces weight and additional parts
• Lug design allows rotor to float
• Same hub as used for steel brakes
• Simplifies later brake conversions

Press-in Wheel Studs
• 8740 chrome moly steel
• Anti-rotational head design
• 5/8″-18 available in two lengths
• Aluminum anti-marring washers
• Flanged steel lug nuts

Drive Plates
• 8620 chrome moly steel
• 40 spline with 45° pressure angle
• Scalloped to remove unnecessary weight

Carbon Brake Kit
• 11″ OD carbon rotor – C1790
• Internal lugs mate with aluminum hubs
• Floating design allows for thermal expansion
• Billet aluminum four piston calipers – B5040
• Carbon brake pads – L4050H
• Aluminum caliper mounts



Options

Supply 4-Link Plates
Standard………………………….. OPRH40
Heavy duty……………………….. OPRH44
HD w/adj shock mnts……….. OPRH45 *

* Allows Ride Height Adjustments Without Affecting Stroke

Related Components

Floater Axles
Hy-Tuf…………………… A2040H24 / A2140H24
300M…………………….. A2040M24 / A2140M24

Center Section
Ultra case…………………. PRF225 / PRF225-10
Billet case…………………. PRF425 / PRF425-10



This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-7618 or Email Us

Parts List and Installation Guide pdf File

Description

Pro Mod aluminum housing with Pro carbon brake kit

Additional information

Weight 0.01 lbs
