Aluminum 4-Link Housing, 2pc Axles, & Pro Carbon Brakes                        16″, 17″, 18″ or 19″ Four Link Centers                                                                  20″, 21″, 22″, & 23″ Available In March 2018

/, Drag Race, Complete Rear End Assemblies, Aluminum Modular 4-Link, Housings / Components, Aluminum Modular 4-Link/

Aluminum 4-Link Housing, 2pc Axles, & Pro Carbon Brakes                        16″, 17″, 18″ or 19″ Four Link Centers                                                                  20″, 21″, 22″, & 23″ Available In March 2018

Aluminum 4-Link Housing, 2pc Axles, & Pro Carbon Brakes                        16″, 17″, 18″ or 19″ Four Link Centers                                                                  20″, 21″, 22″, & 23″ Available In March 2018

$7,435.00

Part Number: H1190

Out of stock

Application

Drag Race Vehicles with 16″, 17″, 18″ or 19″ 4-Link Centers
20″, 21″, 22″ & 23″ will become available in March 2018

Centered Pinion

Choice of 4 3/4″ or 5″ bolt circle


Description

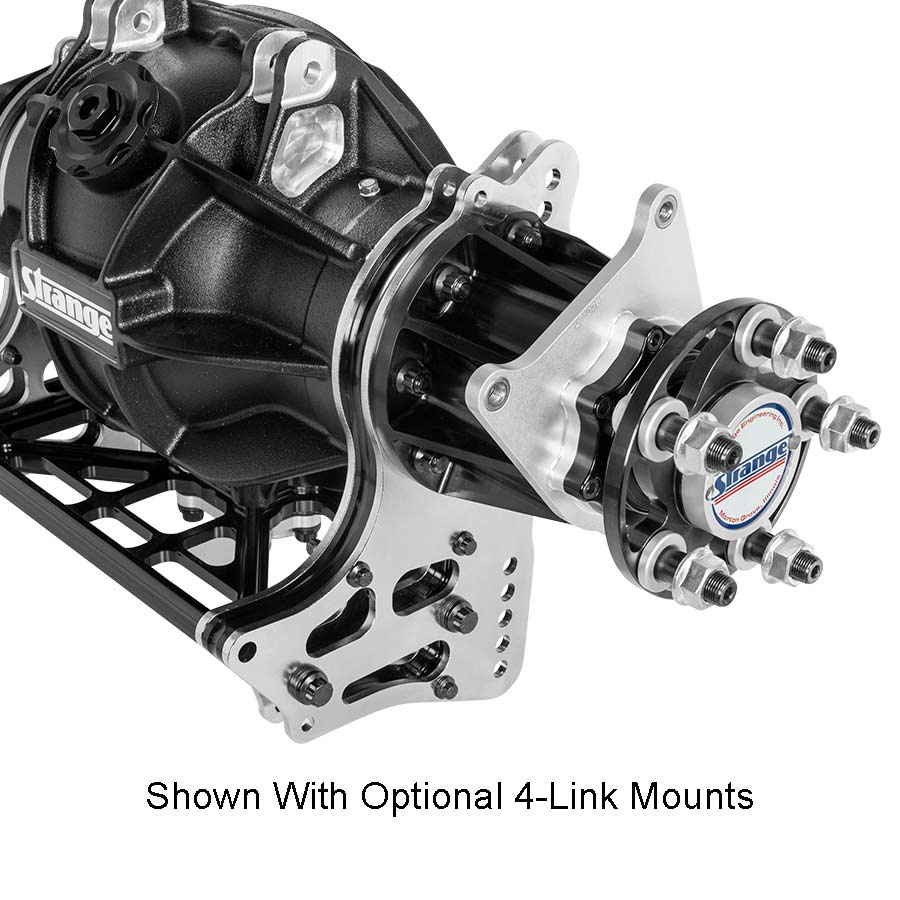

Strange Ultra 4-Link Modular Housing Package
Includes two piece axles & carbon brake kit

Note
4-Link Plates & Center Section Sold Separately


Available Wheel to Wheel Widths

16″ 4-Link Centers
31.50″ / 32.50″

17″ 4-Link Centers
32.50″ / 33.50″

18″ 4-Link Centers
33.50″ / 34.50″

19″ 4-Link Centers
34.50″ / 35.50″

20″ 4-Link Centers *
35.50″ / 36.50″

21″ 4-Link Centers *
36.50″ / 37.50″

22″ 4-Link Centers *
37.50″ / 38.50″

23″ 4-Link Centers *
38.50″ / 39.50″

* Available March 2018

Call For Other Possibilities


Features

Housing
• 206-T4 cast aluminum
• Hot Isostatic Pressed to ensure casting integrity
• Black Enduraguard® finish
• Large fill cap allows for gear inspection
• Magnetic drain plug
• Lug design prevents plate & tube rotation
• Integral upper wheelie bar mounts
• Designed & machined by Strange
• Material made in USA

Four Link Spacer Plates
• 6061-T6511 billet aluminum
• Pockets engage housing lugs
• Lightened for weight reduction
• O-rings ensure sealing integrity
• Black anodized

Bottom Four Link Brace
• 6061-T6511 billet aluminum
• Eliminates lower 4 link plate welding
• Lightened for weight reduction
• Black anodized finish

Housing Tube Ends
• 6061-T651 billet aluminum
• Internal pockets engage housing lugs
• Prevents tube rotation
• Black anodized finish

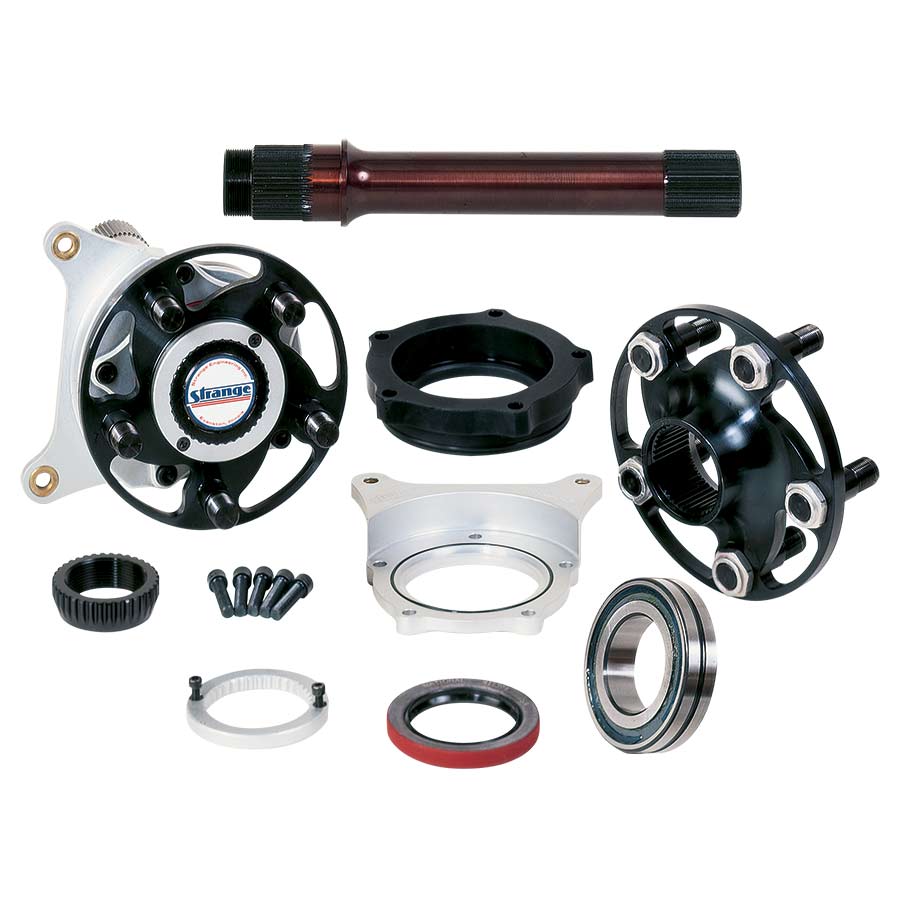

Two Piece Axle Package – P1020
• 300M gun drilled axle shafts
• Independent 4 3/4″ or 5″ BC axle flanges
• Double row ball bearings
• Billet caliper mounts

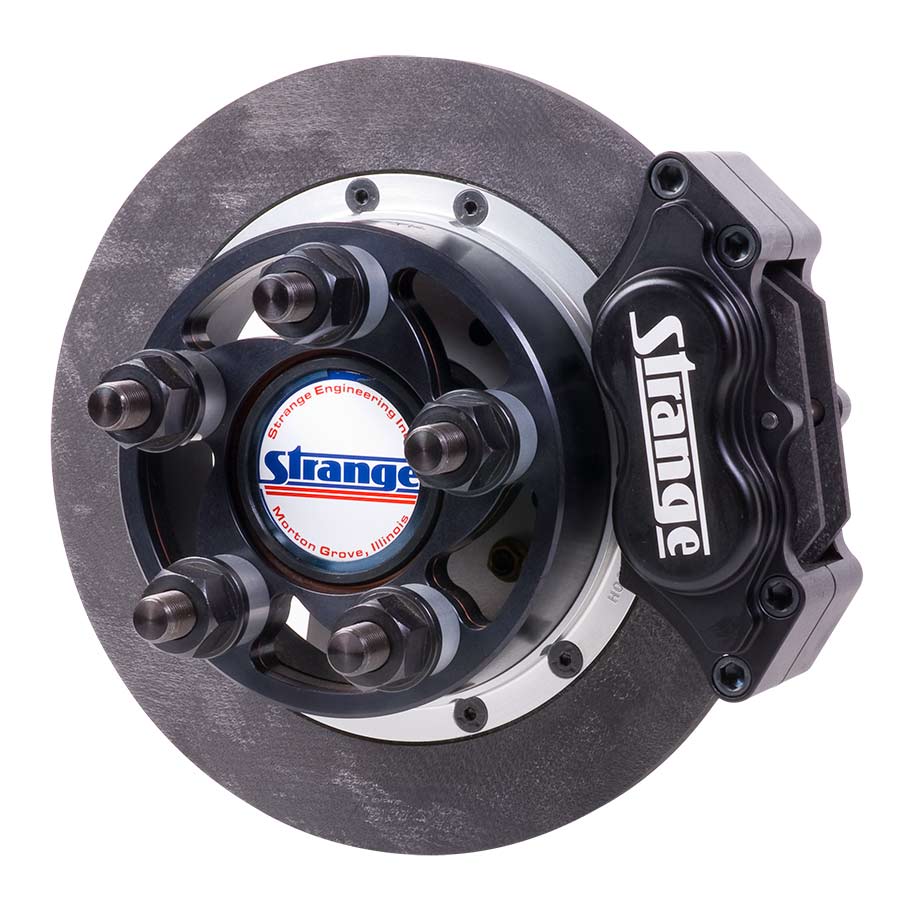

Pro Carbon Brake Kit – C18104DBUC / C18105DBUC
• 11″ carbon rotors
• Four piston billet calipers
• Slotted carbon brake pads



Related Components

4-Link Plates
Standard Duty….. H1180MP1A
Heavy Duty……… H1180MP1HD

Center Sections
HD Pro Case………… PRF192
Ultra Case……………. PRF225
Billet Case……………. PRF425



This product is only available from an Authorized Strange Dealer or Factory Direct Call - 847.663.1701 or Email Us

Description

4-Link Modular Alum Housing With Strange 2 Piece Axles Includes Carbon Brake Kit

Additional information

Weight 0.01 lbs
