Application
Drag Race Vehicles
Description

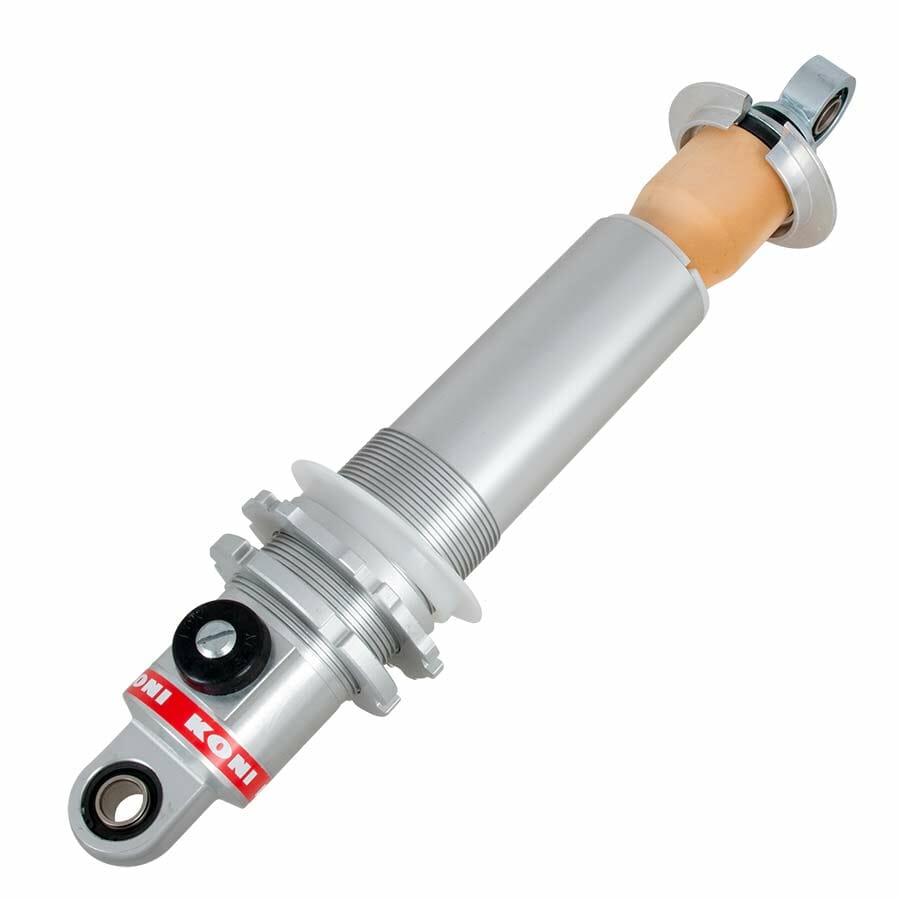

Double Adjustable Coil-Over Shock
Sold as each
Dimension A
Stroke 6.00″ / Extended 17.50″ / Compressed 11.50″
With 2.1875″ Bump Rubber Installed
Stroke 3.8125″ / Compressed 13.6875″
Accepts 12″ x 2.5″ ID spring – Sold separately
Features
• Lightweight aluminum body
• 12 extension & compression settings
• Provides a wide range of control
• Independent external adjustments
• Coil-over design simplifies changes to ride height
• .500″ wide spherical rod ends
Adjustments
Compression
Screw driver adjustable at bottom
Twelve possible positions
Rotating clockwise stiffens valving
Extension
Upper eye slot for pin
Twelve possible sweeps
Rotating from left to right stiffens valving
