Application
1979-2004 Mustang
Description
Single Adjustable Coil-Over Shock
Rear – Sold as each
Coil-Over Benefits
• Compact & lightweight
• Allows adjustments to ride height
• Wide range of spring rates available
Soft Settings
For Drag Racing
Allows more downward force applied to the rear tires
Medium Settings
For Performance Street
Enhances handling & cornering characteristics
Stiff Settings
For Road Racing
Provides very aggressive control over body roll

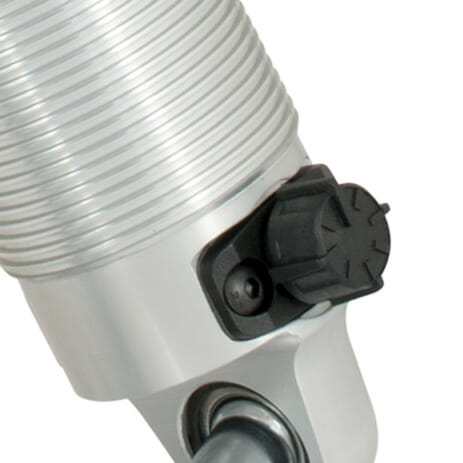

Rotating Knob Clockwise Stiffens Valving

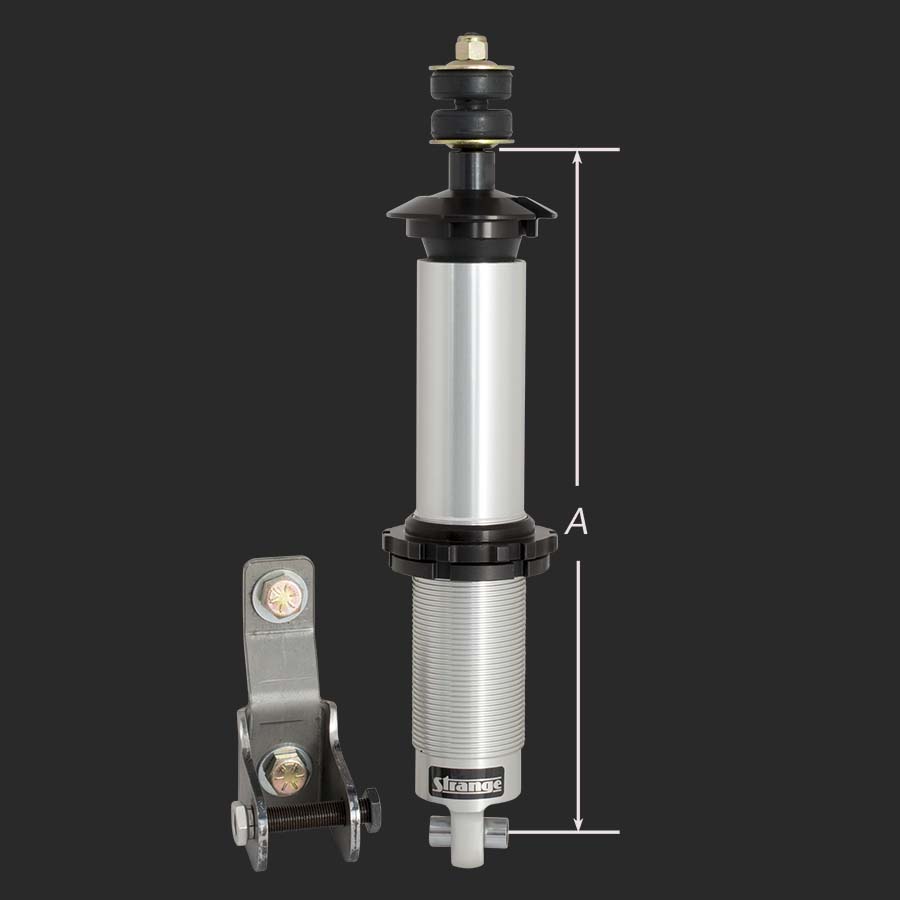

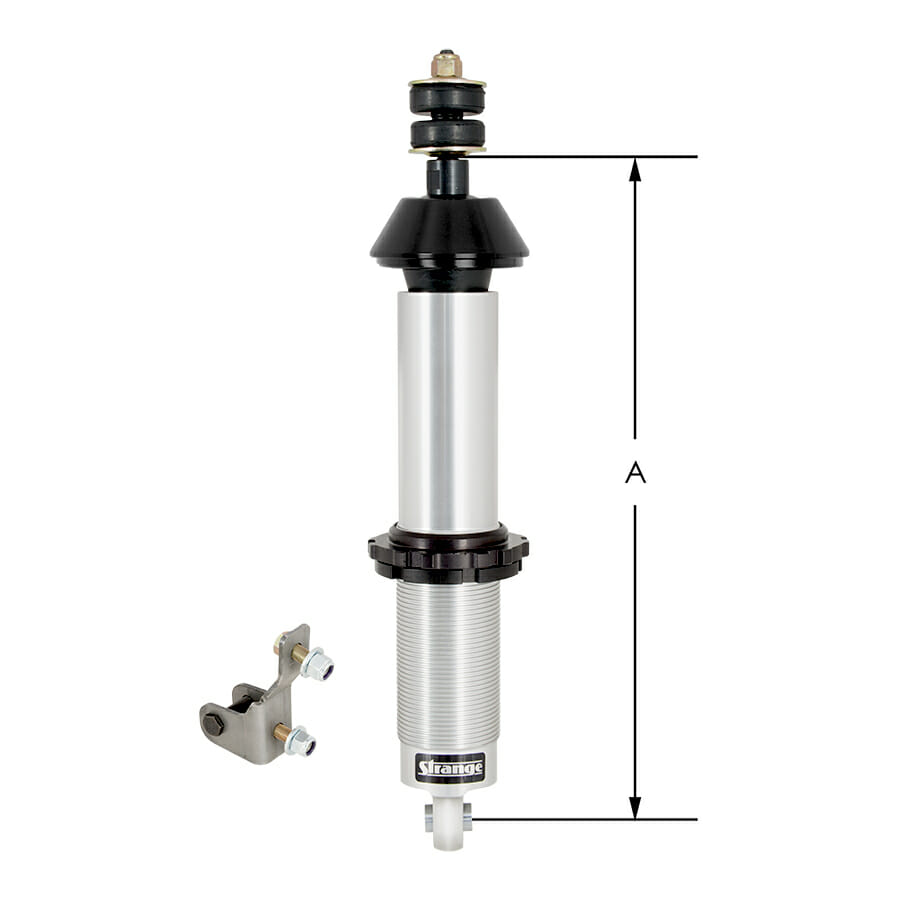

Dimension A
Extended 18.71″ / Compressed 12.2″
Features
• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control
• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Includes
– Upper & lower spring seats
– Lower seat jam nut
– Upper stud with rubber cushions
– Concave washers & lock nut
– Lower spherical ball bearing
– Lower bracket – Drilling required
– Mounting hardware
Spring – Sold Separately
Recommendation
14″ x 2.5″ ID spring
Drag Race………. 125 lbs
Street / Track…. 150 lbs
Some builders may use a 12″ spring
Consult your chassis builder for their suggestion
Related Components
Double adjustable…………. S5048
Springs
14″ 125 lbs…………………… SP14125
14″ 150 lbs…………………… SP14150
Spring seat bearing kit….. S1409
Adjuster wrench……………. S1413
Front Struts
Single Adjustable
1987-1993…………………… S6001EM
1994-2004…………………… S6005LM
Double Adjustable *
1987-1993……………………… S2041
1994-2004……………………… S2043
Strut package………………. S2000FM
* Drag Race Only – Vehicles lowered up to 1 1/2″
