Buick
1973-1981 Century
1982-1987 Grand National
1973-1987 Regal
1975-1979 Skylark
Chevrolet
1973-1977 Chevelle
1973-1987 El Camino
1973-1983 Malibu
1973-1988 Monte Carlo
1975-1979 Nova
Chevrolet Truck
1982-2004 S10 Truck 2WD
1982-2004 S10 Blazer 2WD
GMC
1982-2004 S15 Truck 2WD
1982-2004 S15 Jimmy 2WD
Oldsmobile
1973-1980 442
1973-1988 Cutlass
1975-1979 Omega
Pontiac
1973-1987 Grand Prix
1973-1974 GTO
1973-1977 Lemans
1974-1977 Ventura

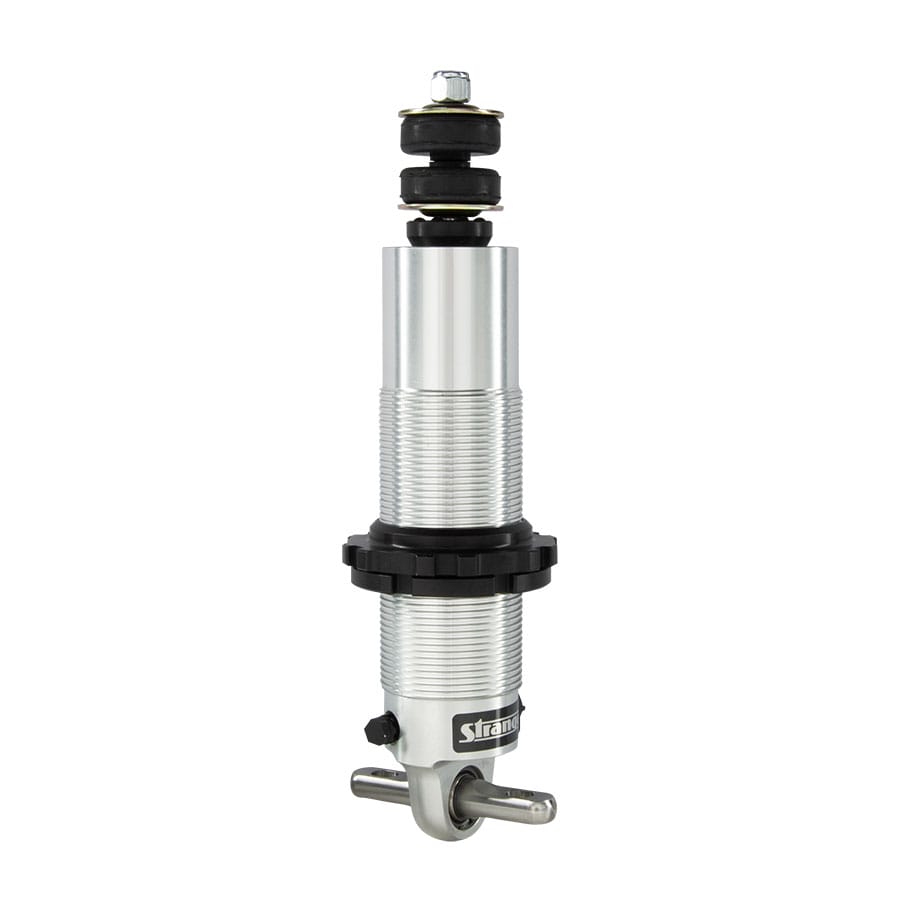

Front Double Adjustable Coil-Over Shocks – (2) S5065
• Compact & lightweight
• Allows adjustments to ride height
Features
• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible external adjustment knobs
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Lower Spherical Bearings
• Bottom T-bar allowed to pivot during shock travel
• Ensures smooth and consistent operation
Includes
• Lower spring seats & jam nuts
• Upper studs with rubber cushions
• Concave washers & lock nuts
• Lower spherical ball bearings
• Mounting hardware
• 10″ 400 lbs Conical springs – SPK10C400
• Spring seat bearing kit – S1409
Drag Racing
Softening extension allows for more weight transfer
Stiffening compression further aides in weight transfer
Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics
Rotating Knobs Clockwise Stiffens Valving

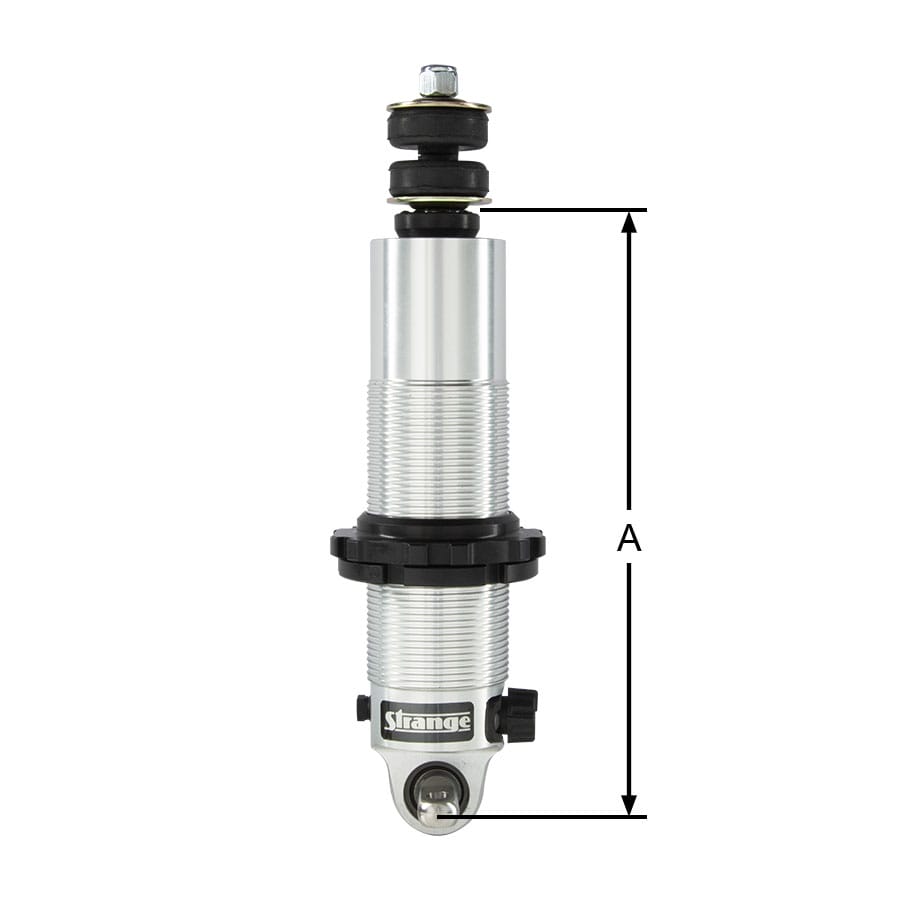

Dimension A
12.50″ Extended / 8.83″ Compressed with bump rubber
Packages With Other Springs
350 lbs springs – S5065P10C350
450 lbs springs – S5065P10C450
Single Adjustable Shock Packages
350 lbs springs – S5265P10C350
400 lbs springs – S5265P10C400
450 lbs springs – S5265P10C450
Spring Seat Adjuster Wrench – S1413
