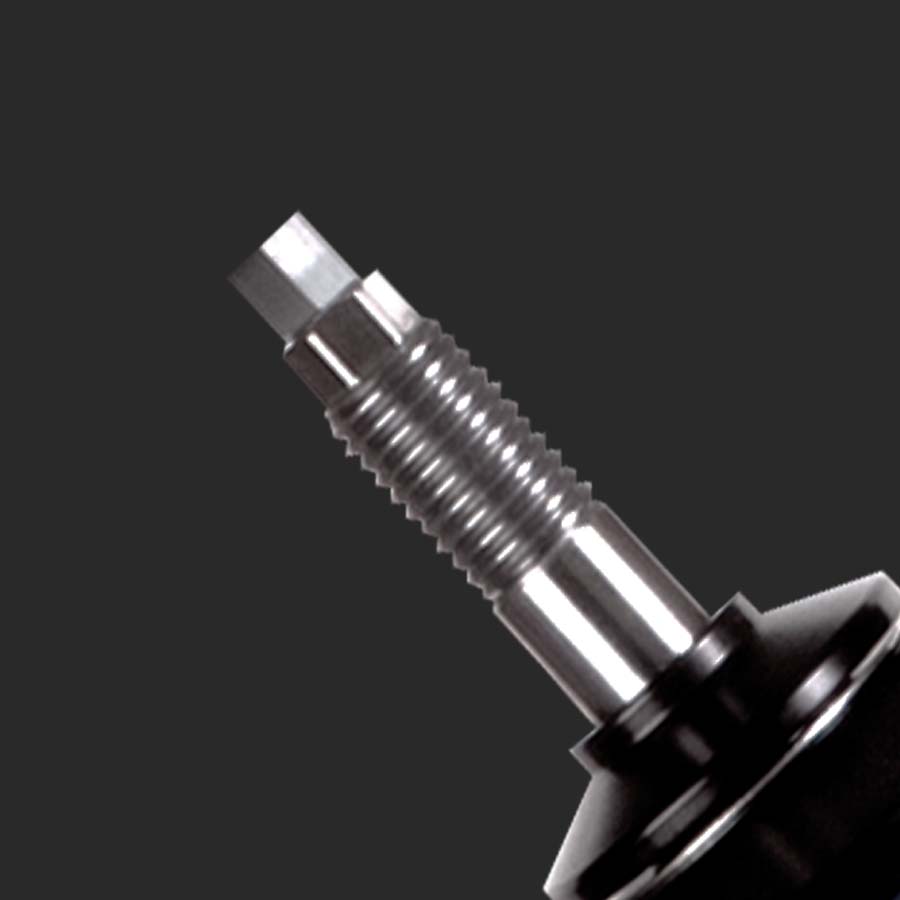

Double Adjustable Coil-Over Strut 2015-2023 Mustang - Drag Race Only

Application

2015-2023 Mustang

Description

Double Adjustable Steel Strut
Drag Race Only – Sold as each

Struts are not equipped with tabs for sway bar, brake lines, or ABS sensors
Insufficient clearance for GT500 Shelby wheels

Requirements

Caster / Camber Kit
14″ x 2.5″ ID Spring

Adjustments

Extension Settings
Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times

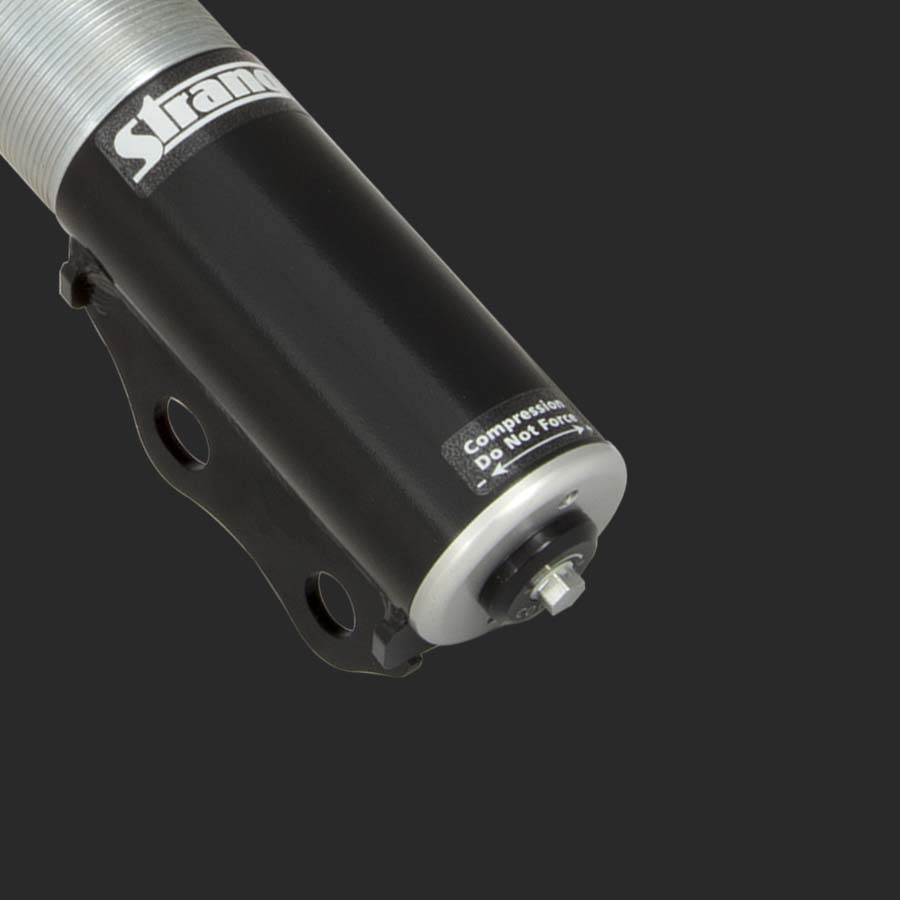

Compression Settings
Softer – Improves reaction to bumps in the track
Stiffer – Dampens impact forces from wheel stands

Features

• Independent external adjusters
• 3 1/8 turns of extension adjustment
• 13 compression settings
• Provides a wide range of control
• Allows quick adjustments for varying conditions
• Integral coil-over body
• Permits easy changes in ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved

Spring – Sold Separately

Recommendation
14″ x 2.5″ ID spring – 150 lbs

Some builders may prefer a different rate or 12″ spring
Consult your chassis builder for any suggestions

Related Components

14″ x 150 lbs springs……………… SP14150

Spring seat bearing kit……………. S1409
Spring seat adjuster wrench……… S1413

Double Adjustable Rear Shock…… S5052
