Applications
1982-2002 Camaro / Firebird / Trans Am
Description

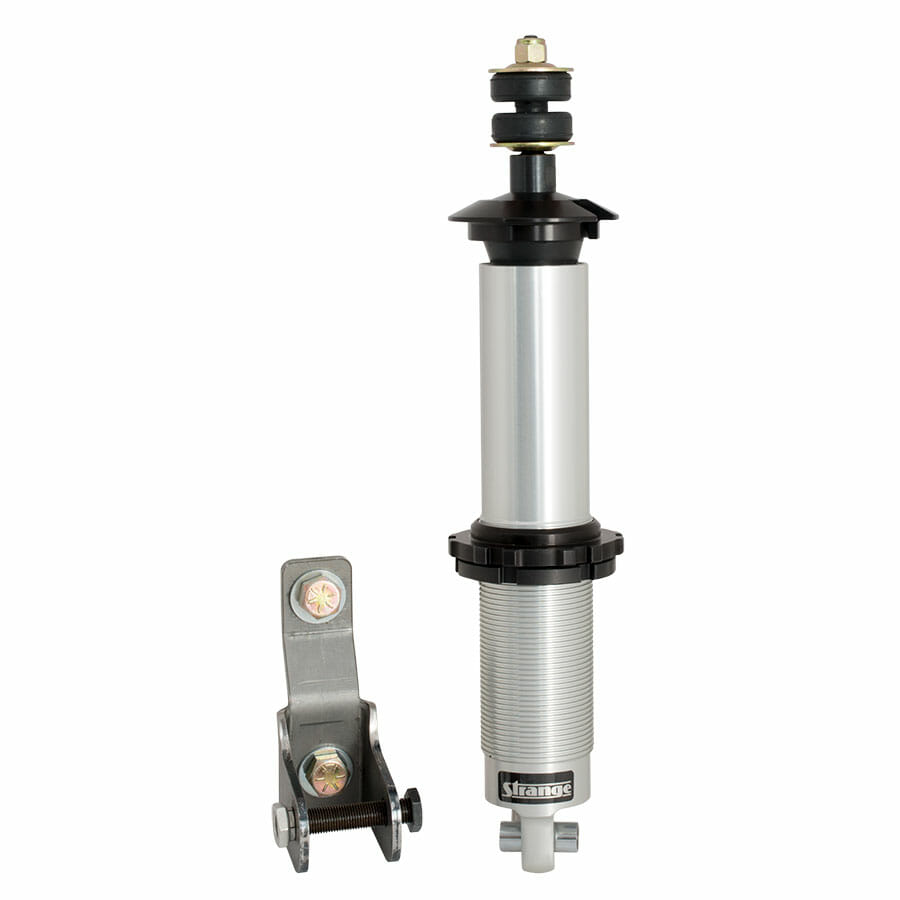

Single Adjustable Coil-Over Shock
Rear – Sold as each
Coil-Over Benefits
• Compact & lightweight
• Allows adjustments to ride height
• Wide range of spring rates available
Soft Settings
For Drag Racing
Allows more downward force applied to the rear tires
Medium Settings
For Performance Street
Enhances handling & cornering characteristics
Stiff Settings
For Road Racing
Provides very aggressive control over body roll
Rotating Knob Clockwise Stiffens Valving
Dimension A
Extended 18.71″ / Compressed 12.2″
Features
• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control
• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Includes
– Upper & lower spring seats
– Lower seat jam nut
– Upper stud with rubber cushions
– Concave washers & lock nut
– Lower spherical ball bearing
– Lower bracket – Drilling required
– Mounting hardware
Spring – Sold Separately
Recommendation
14″ x 2.5″ ID spring
125-138 lbs
Consult your chassis builder for their suggestion
Related Components
Double adjustable………………… S5084
Non Coil-Over Rear
Single adjustable………………….. S5270
Double adjustable………………… S5070
1993-2002 Front Coil-Over *
Single adjustable………………….. S5271
Double adjustable………………… S5071
* Drag Race Only
Springs
14″ 125 lbs………………………….. SP14125
14″ 138 lbs………………………….. SP14138
Spring seat bearing kit…………. S1409
Adjuster wrench…………………… S1413
