5/8″ Stud Kit with 1.500″ Wide Shank                                                             Includes Lug Nuts & .688″ Thick Washers

/, Drag Race, Custom Axle Packages / Components, Stud Kits, Street / Track, Street / Track, Axle Packages / Components, Stud Kits, Ford, Ford, Stud Kits, GM, GM, Axle Packages / Components, Stud Kits, Mopar, Mopar, Stud Kits/

5/8″ Stud Kit with 1.500″ Wide Shank                                                             Includes Lug Nuts & .688″ Thick Washers

5/8″ Stud Kit with 1.500″ Wide Shank                                                             Includes Lug Nuts & .688″ Thick Washers

$90.00

Part Number: A1039L

For Axles Drilled And Tapped 5/8″-18

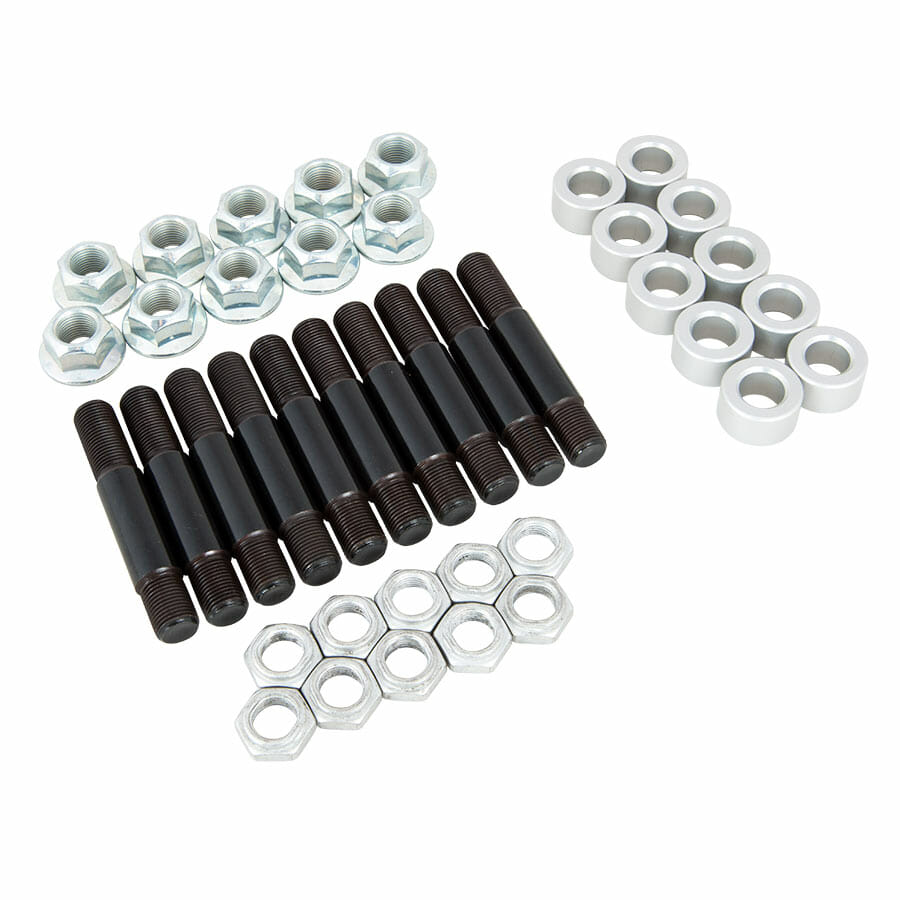

Kit Includes:

5/8″-18 Chrome Moly Studs
– Threads are rolled for maximum strength
– Internal 1/4″ hex to facilitate installation
– Zinc Phosphate coated to resist corrosion
– .686″ OD x 1.500″ wide shoulder to properly locate wheel

Rotor hat width & wheel thickness will determine proper shoulder length
Shoulder should exceed combination but not beyond washer width

Thin Head Self-Locking Nuts
– Ensures positive retention of wheel stud
– Provides additional backside clearance
– 15/16″ wrench size

.688″ Wide Aluminum Washers
– Reduces marring on wheel face from flanged lug nut
– Keeps lug nut from bottoming-out on stud shoulder

5/8″-18 Flanged Lug Nuts
– Provides secure clamping force
– 15/16″ wrench size

* Rotor hat width & wheel thickness will determine proper shoulder length
– Shoulder should exceed combination but not beyond washer width

Additional Kits

Different Width Washers
For .250″……………. See A1039S
For .438″……………. See A1039

Other Shank Lengths
For 0.775″…….. See A1036
For 0.875″…….. See A1037
For 0.875″…….. See A1037MD (For Strange 2 pc Pro Stock axles)
For 1.188″…….. See A1038
For 1.875″…….. See A1041

Parts List and Installation Guide pdf File

Description

5/8 x 18 stud kit with 1.500 shank (.688 washer)

Additional information

Weight 5.25 lbs
