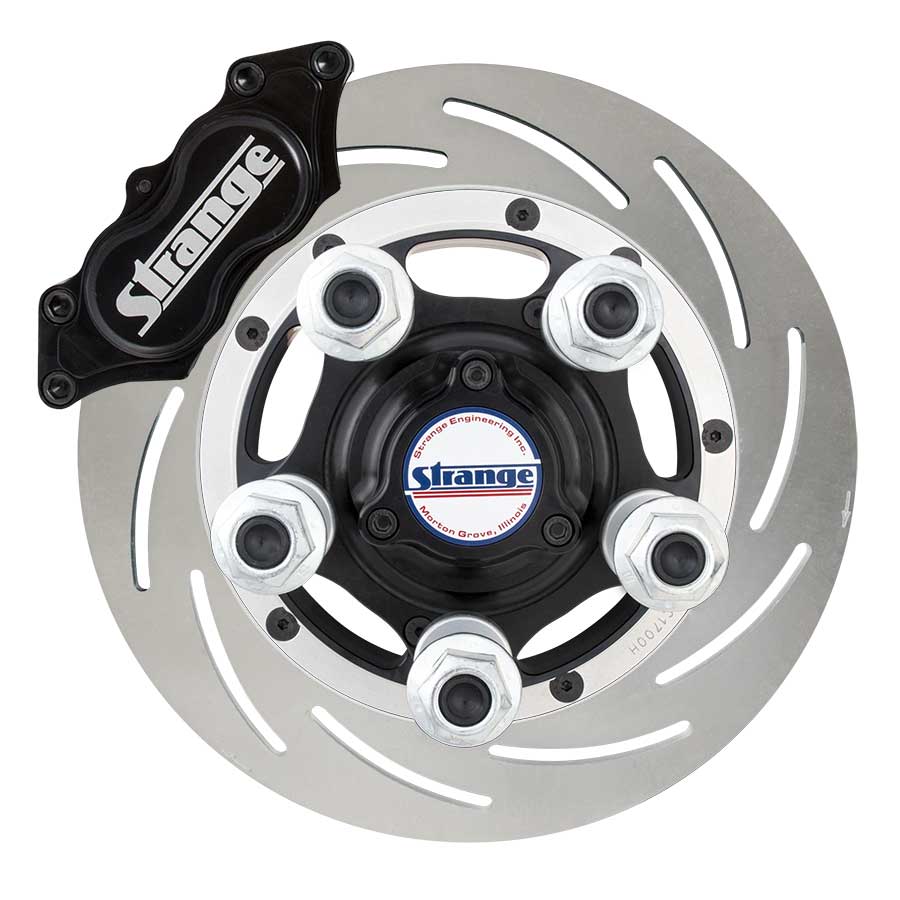

Drag Race 40 Spline Floater Kit
5" Bolt Circle With Stainless Steel Brake Kit

$3,250.00

Part Number: F22065


Designed Specifically For Drag Racing

Requires
Housing with 3 1/4″ or 3 1/2″ O.D. tubing
40 spline floater axles

Safety
Housing supports weight, bending loads, and tire shake
Axle shafts only requirement is to transfer torque
Prevents the possibility of axle flange breakage

Floater Spindles
• 4130 chrome moly
• Machined with large inner bearing radius
• Vastly increases bending load strength
• Provides rigid support for hubs & bearings
• Designed for 3 1/4″ or 3 1/2″ O.D. housing tubing
• 3.00″ O.D. tube end *

* Requires finish turning to suit axle tube I.D.

Spindle Radii Rings
• Mates with large spindle radius
• Creates positive inner bearing seat
• Machined from stainless steel
• Provides corrosion resistant sealing surface

Aluminum Hub / Rotor Adapters
• 2024-T351 billet aluminum
• Machined for 5″ bolt circle
• Integral cogged rotor mount
• Lug design allows rotors to float
• Allows for thermal expansion
• Black anodized finish

Stainless Steel RotorsF2056NL / F2056NR
• Highly resistant to warpage at elevated temperatures
• 11 1/2″ O.D. with directional slots & internally cogged

Four Piston Billet Calipers with Stainless Steel PistonsB1900 / B1900-RD
• Billet aluminum bodies are extremely ridged & reduce weight
• Stainless steel pistons are corrosion resistant
• All pistons are 1.750″ to provide maximum clamping force
• Choice of black or red finish

Choice of Brake Pads
• High Temp – B5022
• Hard – B5020
• Soft – B5010

Caliper Mounts
• 6061-T6511 aluminum
• Clear anodized
• 3/8″-24 press nuts installed

Press-in Wheel Studs
• 8740 chrome moly
• Anti-rotational designed head
• .6865″ shank / 5/8″-18 threads
• Two lengths available *

* Please supply wheel thickness

Lug Nuts
• Flanged steel nuts
• Includes aluminum anti-marring washers

Steel Drive Plates
• 8620 hardened steel
• Scalloped design removes unnecessary weight
• Designed for 40 spline shaft with 45° pressure angle *
• Black oxide finish

* Inner axle splines can be made to suit other spools

Timken® Tapered Bearings & Races
• Premium components from a trusted name
• Ensures proper fit & long bearing life

Solid Preload Spacer
• Prevents excessive preload
• Maintains consistency

Spindle Nut Retention System
• Heat treated spindle nut tapped for set screws
• Twin tab nut retainer securely engages spindle
• Dog point set screws prevent nut rotation
• Ensures proper bearing preload is maintained

Mounting Hardware
• All premium grade
• Provides safety and security

Axles Below Sold Separately

Gun Drilled Axles
Hy-Tuf axles 24″ or less – A2040H24
Hy-Tuf axles 24 1/8″ to 28″ – A2040H28
Hy-Tuf axles 28 1/8″ to 32″ – A2040H32
Hy-Tuf axles 32 1/8″ to 36″ – A2040H36

300M axles 20″ or less – A2040M
300M axles 20 1/8″ to 24″ – A2040M24
300M axles 24 1/8″ to 28″ – A2040M28
300M axles 28 1/8″ to 32″ – A2040M32
300M axles 32 1/8″ to 36″ – A2040M36

Solid Axles
Hy-Tuf axles 24″ or less – A2140H24
Hy-Tuf axles 24 1/8″ to 28″ – A2140H28
Hy-Tuf axles 28 1/8″ to 32″ – A2140H32
Hy-Tuf axles 32 1/8″ to 36″ – A2140H36

300M
300M axles 20″ or less – A2140M
300M axles 20 1/8″ to 24″ – A2140M24
300M axles 24 1/8″ to 28″ – A2140M28
300M axles 28 1/8″ to 32″ – A2140M32
300M axles 32 1/8″ to 36″ – A2140M36

Additional Kits
4 3/4″ bolt circle & steel brakes – F22064
5 1/2″ bolt circle & steel brakes – F2206

4 3/4″ bolt circle & carbon brakes – F22064WC
5″ bolt circle & carbon brakes – F22065WC
5 1/2″ bolt circle & steel brakes – F2206WC


This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

40 spline floater kit for 5″ BC with stainless steel brake kit

Floater Kits NEW GEN

Parts List and Installation Guide pdf File
