Application – Drag Racing
Requirements
Housing with 3 1/4″ or 3 1/2″ OD tubing
Custom floater axles – Sold Separately
Safety Benefits
Housing supports weight, bending loads, and tire shake
Axle shafts only requirement is to transfer torque
Prevents the possibility of axle flange breakage
Features
Floater Spindles
• 4130 chrome moly
• Machined with large inner bearing radius
• Vastly increases bending load strength
• Provides rigid support for hubs & bearings
• Designed for 3 1/4″ or 3 1/2″ OD housing tubing
• 3.00″ OD tube end *
* Requires finish turning to suit axle tube ID
Spindle Radii Rings
• Mates with large spindle radius
• Creates positive inner bearing seat
• Machined from stainless steel
• Provides corrosion resistant sealing surface

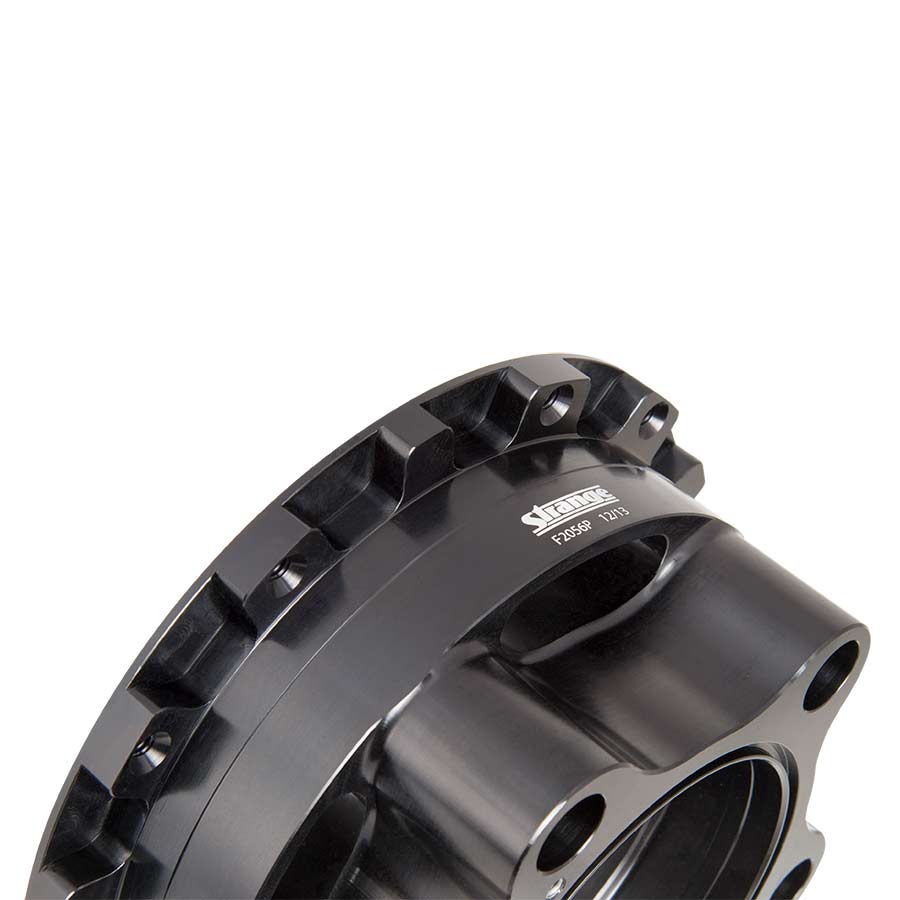

Aluminum Hub / Rotor Adapters
• 2024-T351 billet aluminum
• Machined for 5″ bolt circle
• Integral cogged rotor mount
• Lug design allows rotors to float
• Allows for thermal expansion
• Black anodized finish

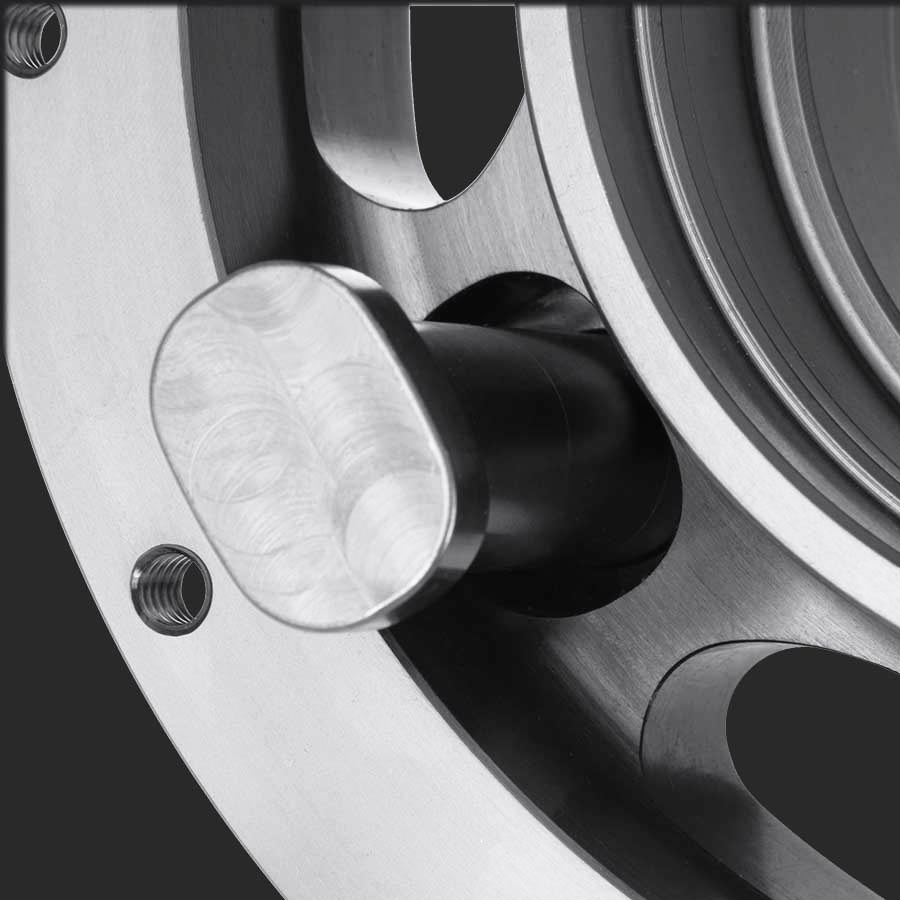

Press-in Wheel Studs
• 8740 chrome moly
• Anti-rotational designed head
• .6865″ shank / 5/8″-18 threads
• Two lengths available *
* Please supply wheel thickness
Choice of Lug Nuts
• Steel with aluminum anti-marring washers
• Aluminum with encapsulated washer
Steel Drive Plates
• 8620 hardened steel
• Scalloped design removes unnecessary weight
• Designed for 40 spline shaft with 45° pressure angle *
• Black oxide finish
* Inner axle splines can be made to suit other spools
Timken® Tapered Bearings & Races
• Premium components from a trusted name
• Ensures proper fit & long bearing life
Solid Preload Spacer
• Prevents excessive preload
• Maintains consistency

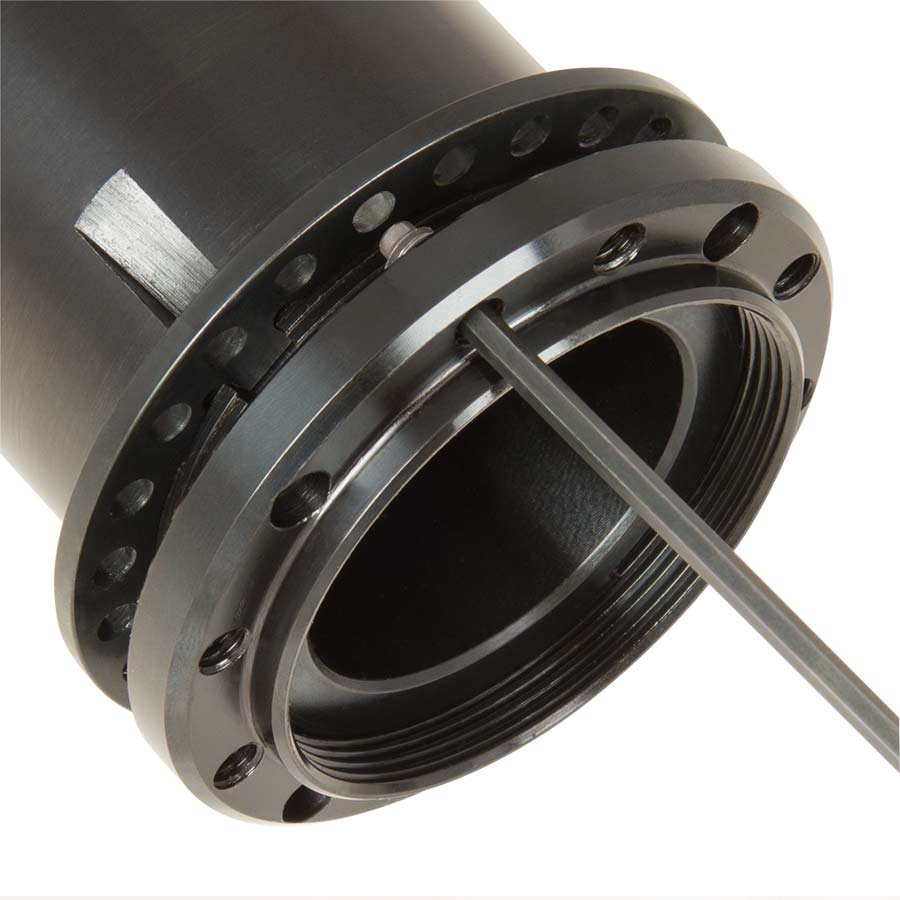

Spindle Nut Retention System
• Heat treated spindle nut tapped for set screws
• Twin tab nut retainer securely engages spindle
• Dog point set screws prevent nut rotation
• Ensures proper bearing preload is maintained

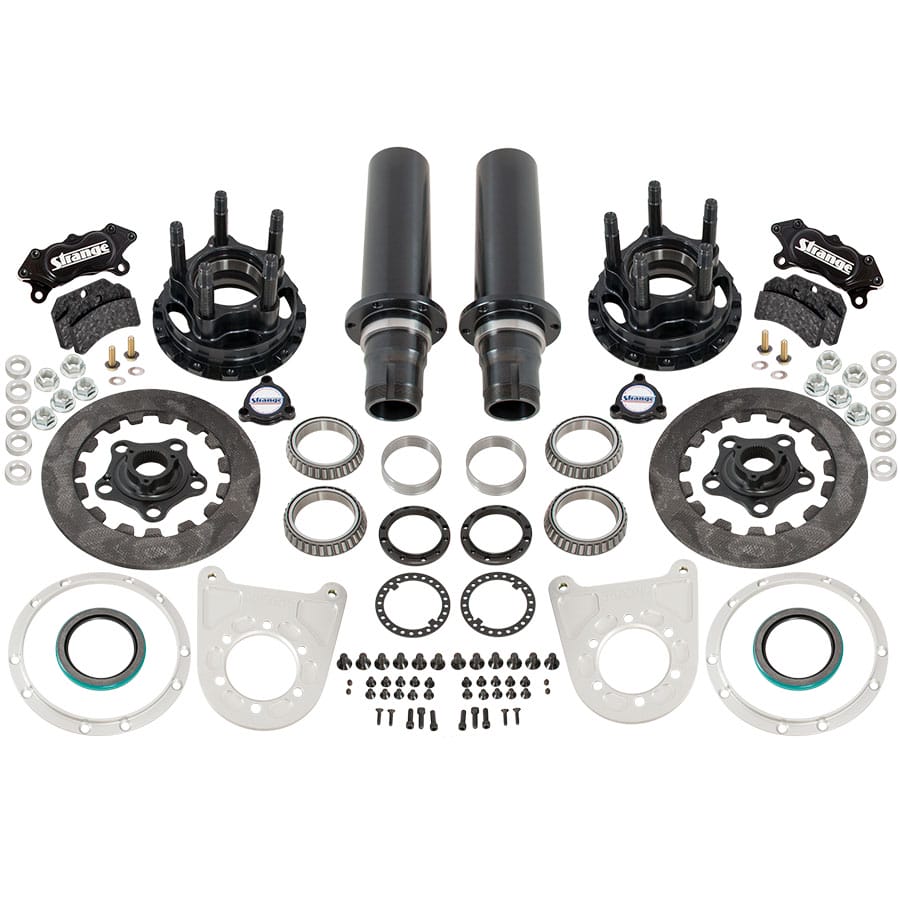

Pro Carbon Brake Kit – C2000WC
• 11″ carbon rotors
• Billet aluminum four piston calipers
• Carbon brake pads
• Aluminum mounting plates
Mounting Hardware
• All premium grade
• Provides safety and security
Other Floater Kits
Carbon
4 3/4″ bolt circle….. F22064WC
5 1/2″ bolt circle…… F2206WC
Steel
4 3/4″ bolt circle…….. F22064
5″ bolt circle…………… F22065
5 1/2″ bolt circle……… F2206
Pro Touring
4 1/2″, 4 3/4″, or 5″….. F5010
Gun Drilled Floater Axles
Hy-Tuf
24″ or less………….. A2040H24
24 1/8″ to 28″……… A2040H28
28 1/8″ to 32″……… A2040H32
32 1/8″ to 36″……… A2040H36
300M
20″ or less…………….. A2040M
20 1/8″ to 24″……… A2040M24
24 1/8″ to 28″……… A2040M28
28 1/8″ to 32″……… A2040M32
32 1/8″ to 36″……… A2040M36

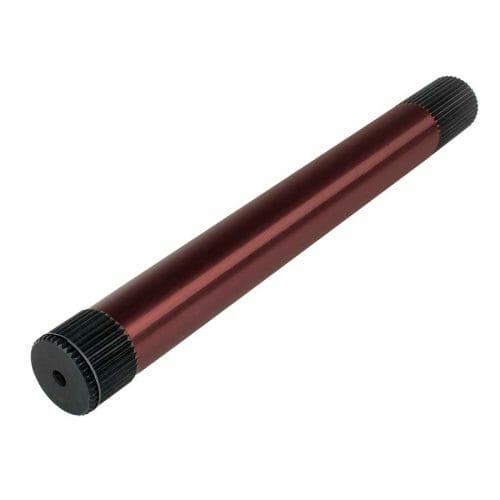

Solid Floater Axles
Hy-Tuf
24″ or less………….. A2140H24
24 1/8″ to 28″……… A2140H28
28 1/8″ to 32″……… A2140H32
32 1/8″ to 36″……… A2140H36
300M
20″ or less…………….. A2140M
20 1/8″ to 24″……… A2140M24
24 1/8″ to 28″……… A2140M28
28 1/8″ to 32″……… A2140M32
32 1/8″ to 36″……… A2140M36
