Strange Ultra Case and Support Package                                                           3.812″ Bore Case & Tapered Bearing Support                                               With Installation Kit For 9″ or 9 1/2″ 35 Spline Pro Gears

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Aluminum Cases, Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Aluminum Cases/

Strange Ultra Case and Support Package                                                           3.812″ Bore Case & Tapered Bearing Support                                               With Installation Kit For 9″ or 9 1/2″ 35 Spline Pro Gears

Strange Ultra Case and Support Package                                                           3.812″ Bore Case & Tapered Bearing Support                                               With Installation Kit For 9″ or 9 1/2″ 35 Spline Pro Gears

$949.00

Part Number: P3812LT

Applications

Pro Mod
Alcohol Funny Car
Top Dragster
Drag Radial
Outlaw 632
Radial vs The World


Additional Parts Required

Strange HD 40 spline spool
9″ or 9 1/2″ Pro gear set
35 spline yoke or coupler
Gasket

This Case May Not Fit Your Housing

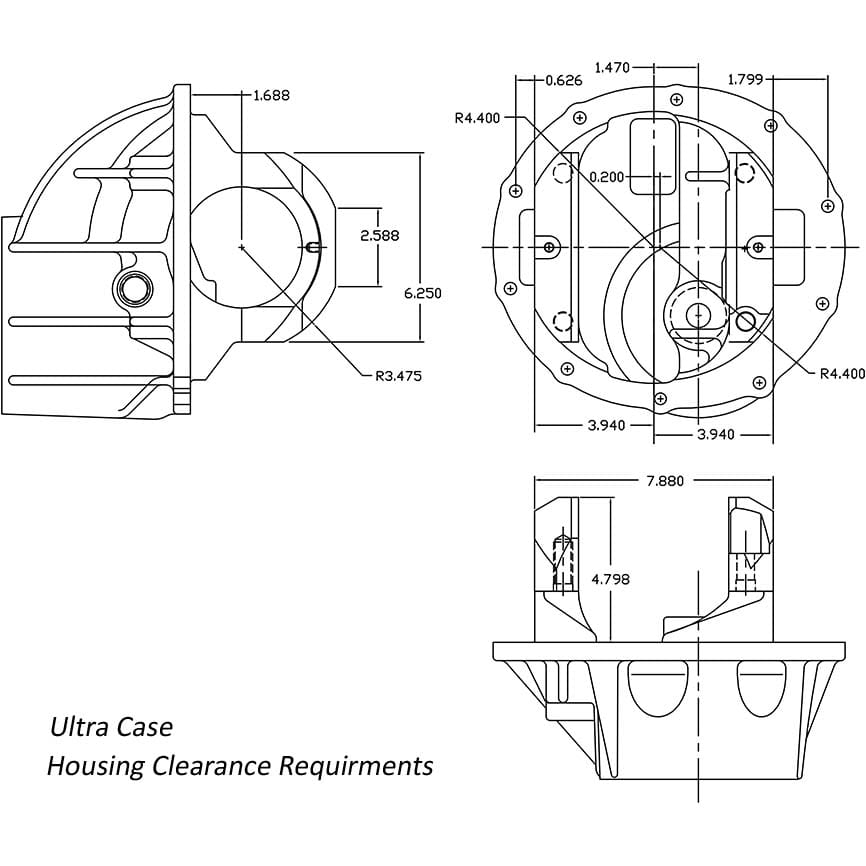

Please refer to housing clearance diagram

Using 9 1/2″ Gear Set ?
Also check gear diagram

Can use 10″ gears with optional spacer kit
For 10″ gears exclusively – See 10″ package below


Package Includes

N1912

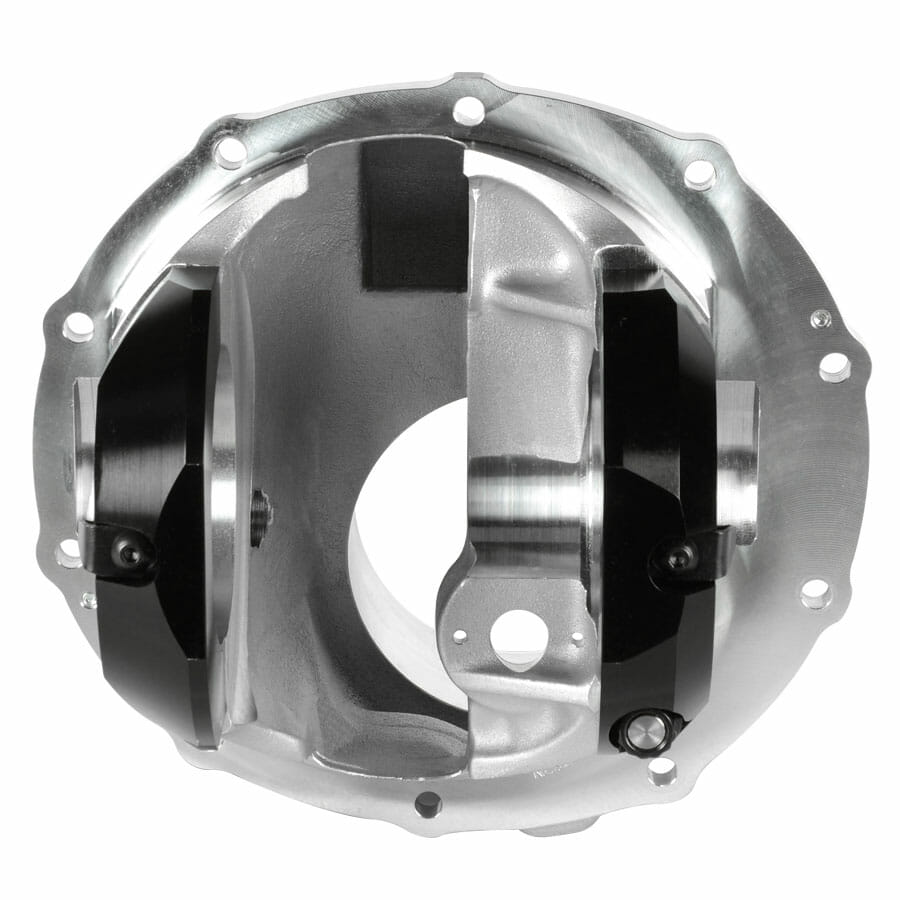

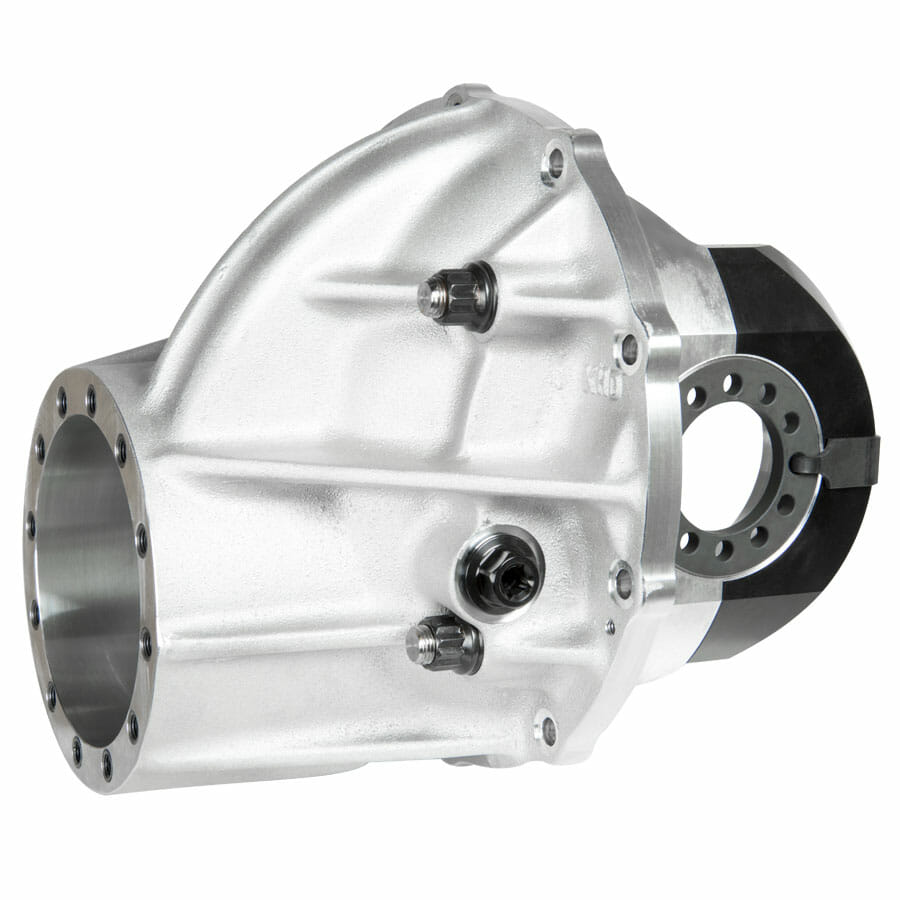

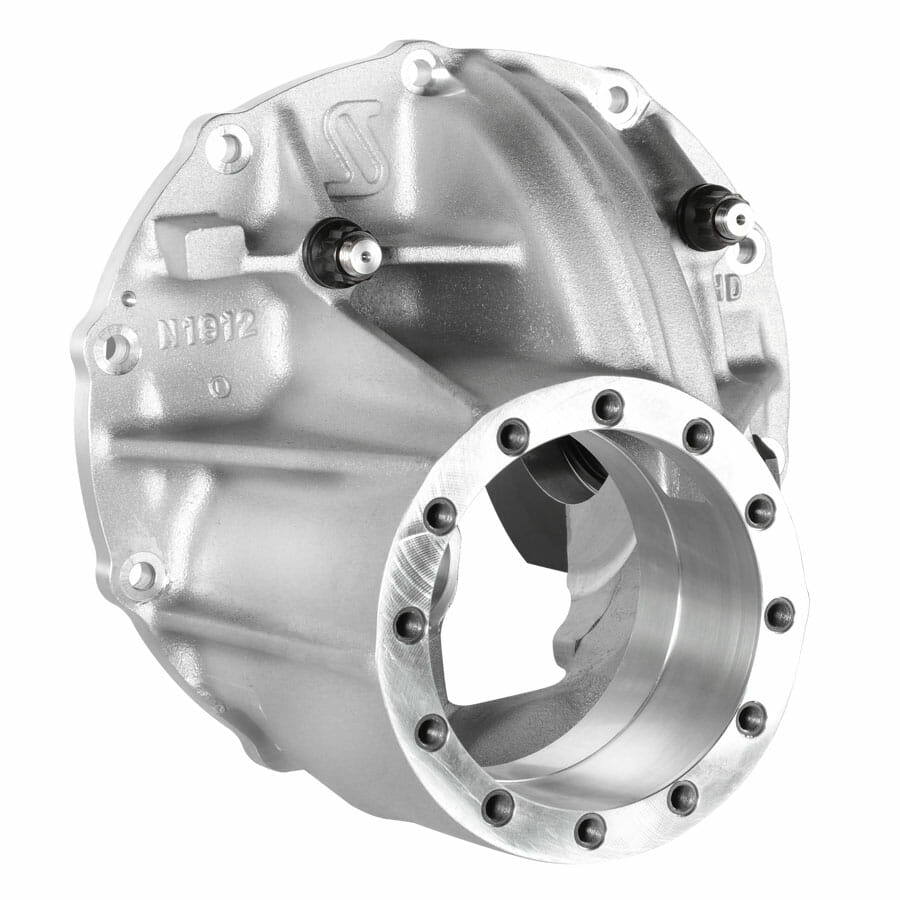

• Ultra Case 3.812″ bore
• 206-T4 aluminum
• Extra large oil channel
• Critical areas heavily reinforced
• Billet aluminum main caps
• Solid steel adjuster nuts
• Designed & machined by Strange
• Cast in the USA

N1950A
• 6061-T6511 billet aluminum tapered bearing support
• Tapped for 5/16″-24 sensor in two locations
• Clear anodized finish

Remaining Components
• Timken® front and rear pinion bearings & races
• One piece solid preload spacer – Machine to fit
• Rear bearing shim
• Pinion depth shim kit
• Support bolts, washers, and o-ring
• Pinion seal & flanged locking nut
• Oversize tail bearing with retainer plate and screws
• Timken® side bearings and races
• ARP 7/16″ & 1/2″ ring gear bolts


Related Components

HD 40 spline spool………………………. D2002

Load bolt…………………………………….. N1910H

Yoke / Coupler………………………. U1604 / U3629

Gasket………………………………….. H1111 / H1111S

10″ gear spacer kit……………………… N1950HK


Additional Packages

With ball bearing support….. P3812LB / P3812LBHD

For 28 Spline pinion……………………. P3812ST

For 10″ gear sets only………………. P3812LT-10



Parts List and Installation Guide pdf File

Parts List and Installation Guide pdf File

Description

Ultra Case package with 3.812″ bore case / Tapered Brg Support / For 35 spline pinion

Additional information

Weight 35.55 lbs
