1978-1988 G-Body Bolt-In Housing
Strange Ultra Fab 9" Housing With Mounts,
Housing Ends, Fill, Drain, & Vent

$1,850.00

Part Number: HF9GGMEUF


Strange Ultra Fab Ford 9″ Bolt-In Housing
No additional charge for custom width

1978-1988 GM G-Body
• Monte Carlo
• Regal
• Grand National
• Grand Prix
• Cutlass & 442
• Hurst Olds

1978-1987 GM G-Body
• Malibu
• Lemans
• El Camino

Features
• Heavy duty upper control arm mounts
• Upper mounts raised 1.125″ provides additional traction
• OEM lower control locations with multiple height mounting holes
• Further enhances chassis tuning abilities
• Factory .500″ pinion offset to passenger side

Information Needed
Type of housing ends
Housing width

DOMEX 100XF Material
• Extra high strength cold formed steel
• Utilized in top tier NASCAR housings
• Equivalent strength of chromoly
• Less prone to fatigue cracking than chromoly
• Highly ductile in the weld zone affected by heat
• Low carbon easily MIG or TIG welded

Features
• Triangulated Ridge Design
• Constructed From .125″ material
• Heavy Duty .375″ Face Plate

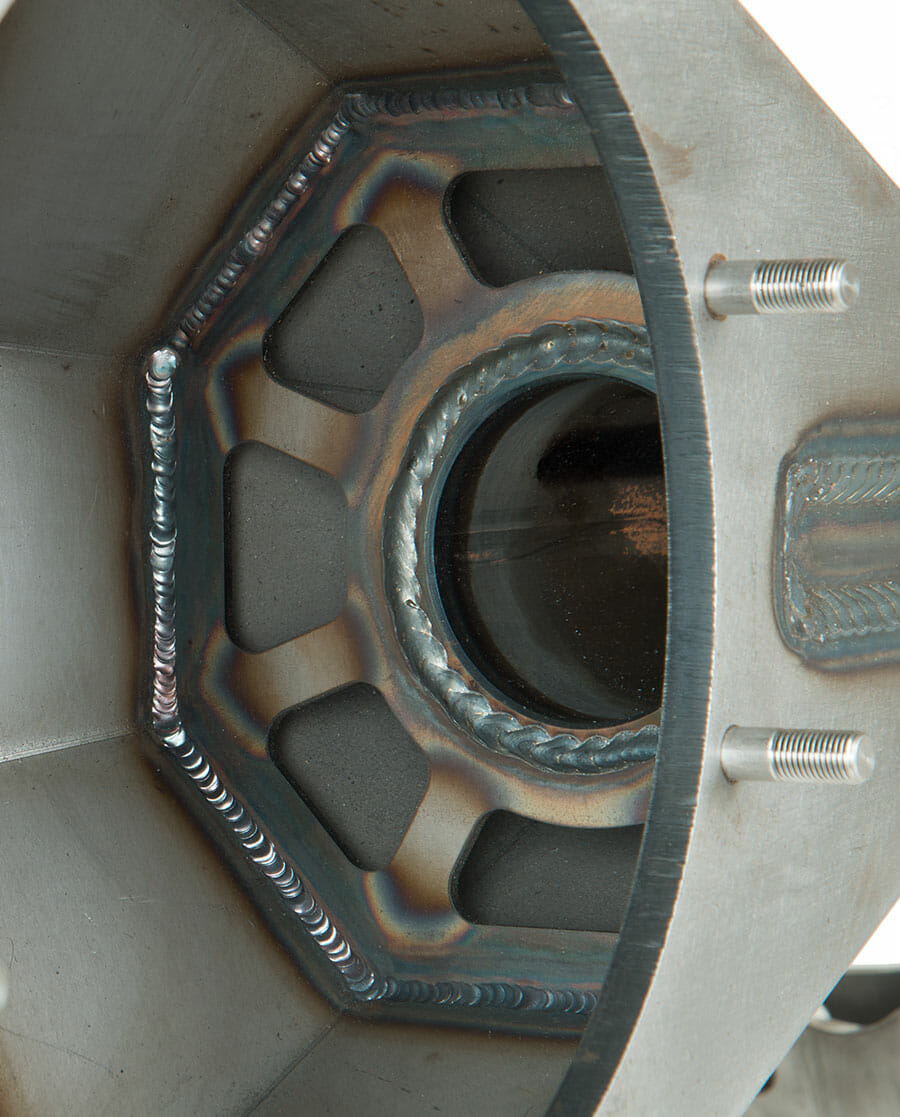

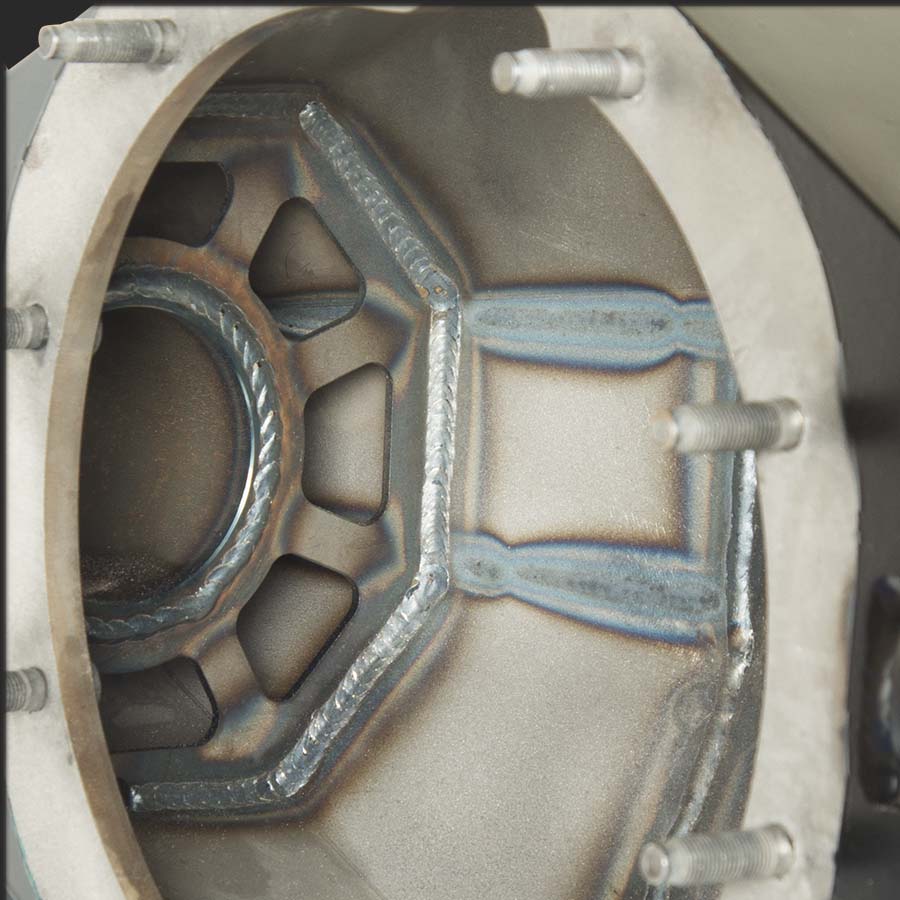

• Internal Radial Gusset Plates
• Tube locations Slotted & Welded For 5″
• Clearance Provided For Cases With HD Main Caps
• Housing Will Accept 9″, 9 1/2″, or 10″ Development Gear Sets

Fill & Drain plug
• Facilitate fluid changes
• Allows for inspection of ring gear

Housing Tubing
• DOM 1026 steel
• 3.00″ OD x .250″ wall thickness

Vent
• Prevents build-up of internal pressure
• Ensures sealing integrity

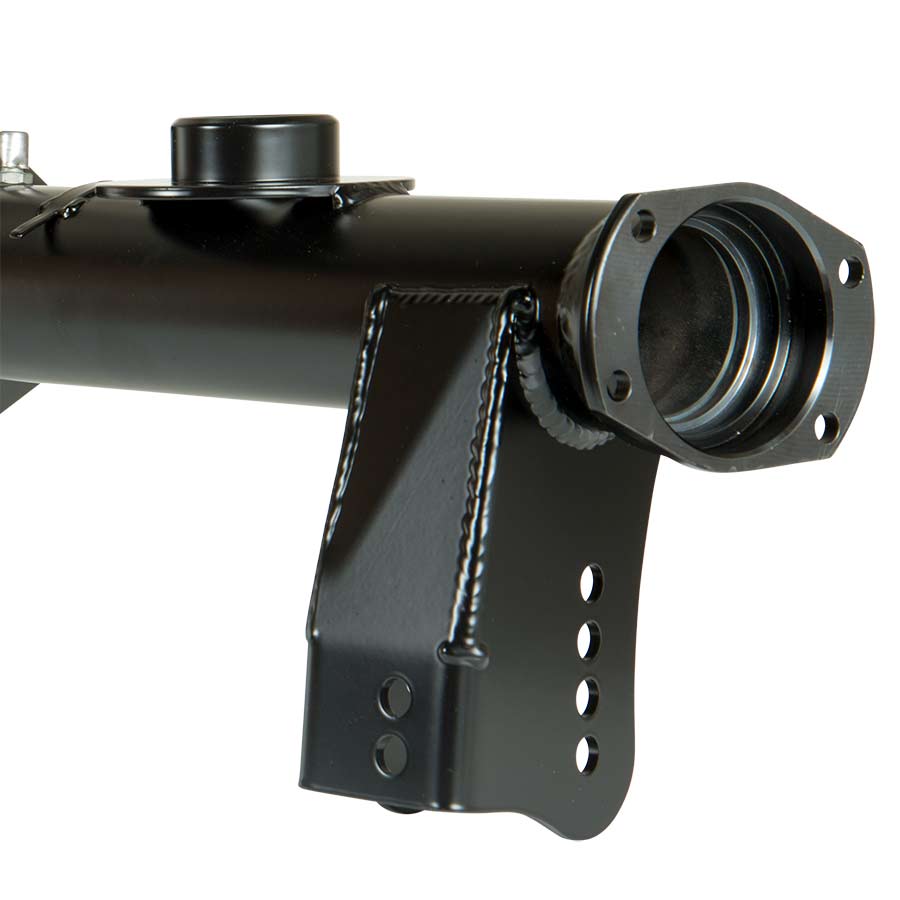

Multiple Lower Control Arm Mounting Holes
• Provides additional chassis tuning abilities

Housing Ends
• Forged steel
• Choice of Strange end

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity

Options

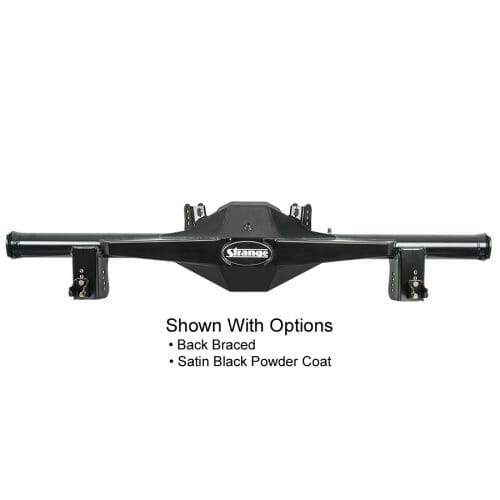

Powder coat housing satin black – H1199P-BLK
Install back brace – H1128N

Related
Gasket – H1111S

Alloy axle package – P3102 / P3104
Pro Race axle package – P1007 / P1008 / P1014 / P1016

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles


This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Strange Ultra Fab 9″ Housing W/Mounts, Ends, Fill & Drain GM G-Body

×
