Strange 10 1/2″  Top Load Live Axle Assembly                                                   Equipped With 11 1/2″ Carbon Brakes

Strange 10 1/2″  Top Load Live Axle Assembly                                                   Equipped With 11 1/2″ Carbon Brakes

$11,350.00

Part Number: L7000

Out of stock

Application

Alcohol Dragster & Funny Car


Description

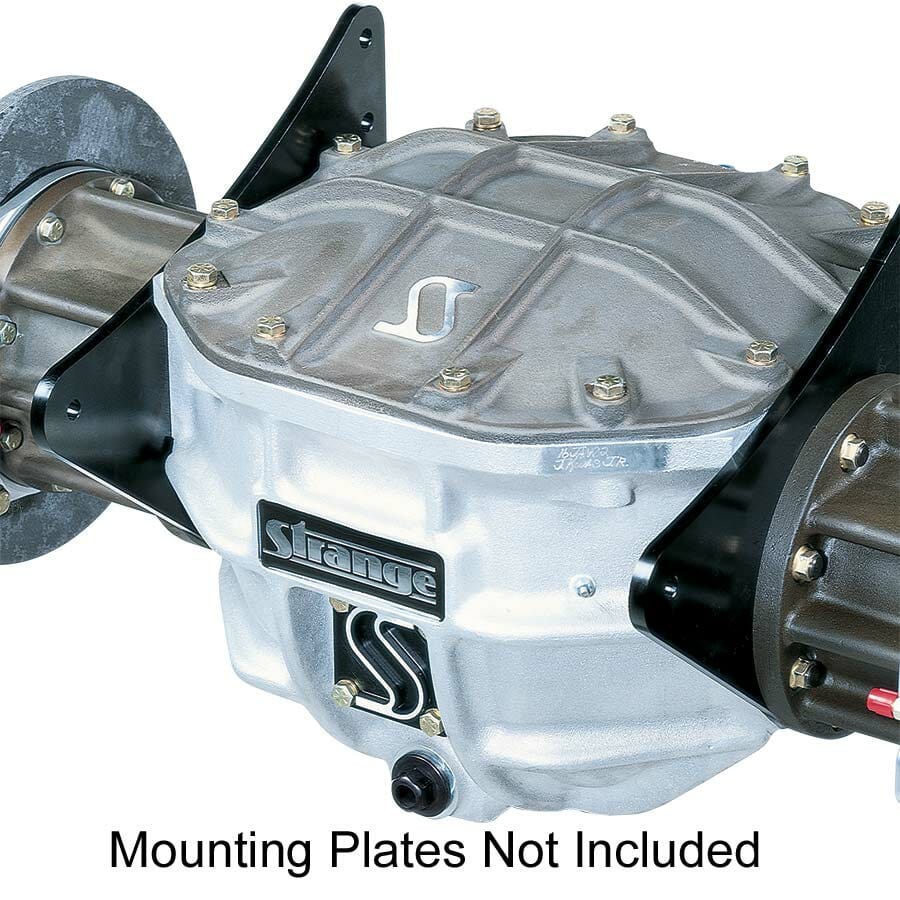

Complete 10 1/2″ Top Load Live Axle Assembly
Includes 11 1/2″ carbon brake kit

Mounting Plates Are Not Included


Quick Specs

5 1/2″ bolt circle
10 1/2″ Pro gear
Choice of 2.91 or 4.11 ratio
32 1/2″ wheel to wheel
14 3/8″ between mounting plates


Features

Case
• 206-T4 premium aluminum
• Cast in the USA
• Black Enduraguard® finish (Not shown)
• Designed & machined by Strange

Cover
• AZ91E-T6 Magnesium
• Lightweight
• Ribbing increase stiffness
• Black Enduraguard finish (Not shown)

Spool
• 7075-T6 billet aluminum
• 36 spline 30° pressure angle
• Black anodized

Axle
• 300M chrome moly steel
• 2.063″ gun drilled
• Thru hardened
• Straightened to .005″ TIR
• Magnafluxed
• Shot peened
• 36 spline 3.113″ OD – Spool
• 34 spline 2.920″ OD – Hubs

Tube Ends
• AZ91E-T6 magnesium
• Ribbed to increase stiffness
• Black finish

Hubs
• 2024-T4 billet aluminum
• 5 on 5 1/2″ bolt circle
• 34 spline 30° pressure angle
• Clear anodized

Wheel Studs
• 8740 chrome moly steel
• Heat treated
• 11/16″-18 press-in design
• Black oxide finish

Lug Nuts
• 7075-T6 aluminum
• 11/16″-18 thread
• Black anodized finish
• 1.302″ OD integral anti-marring washer

Oil Pump
• Ensures constant bearing lubrication
• Jets provide pressurized oil to gear contact area

Gear Set
• 10 1/2″ Pro gear
• 2.91 or 4.11
• Retained by (20) ARP bolts

Carbon Brake Kit
• 11 1/2″ carbon rotors
• Carbon brake pads
• 4 piston billet aluminum calipers
• Equipped with insulated pistons

Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings



Oil Capacity

6 – 7 quarts
Requires external oil lines – Not supplied


Mounting Plates

Semi-finished mounting plates…. L7000MP


Replacement Parts

2.91 gear…………. R7091
4.11 gear…………. R7111
Rotor……………… L4050B
Pad………………… L4050H
Lug nut…………. L7010NY



This product is only available from an Authorized Strange Dealer or Factory Direct Call - 847.663.1701 or Email Us

Description

Strange Top Loader 10.5″ Live Axle assembly with carbon brakes

Additional information

Weight 0.01 lbs
