Application
Construction of Housing for 1971-1976 GM B-Body Vehicles
Impala & Caprice
(Except Station Wagons)
Description

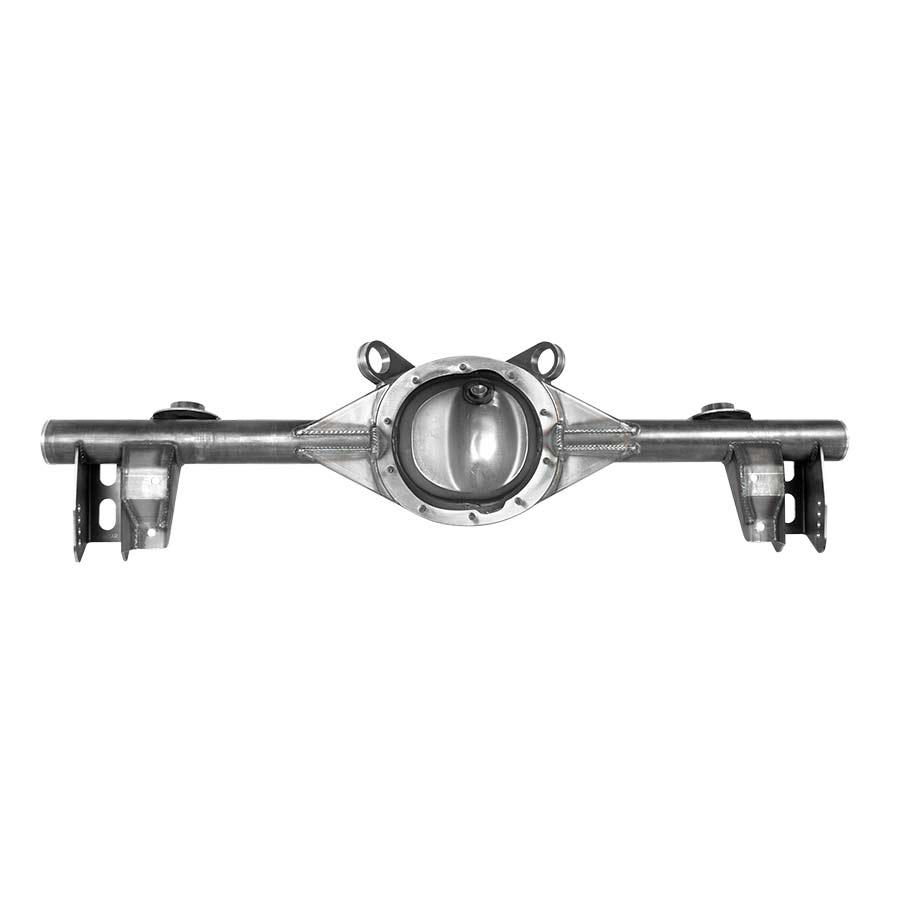

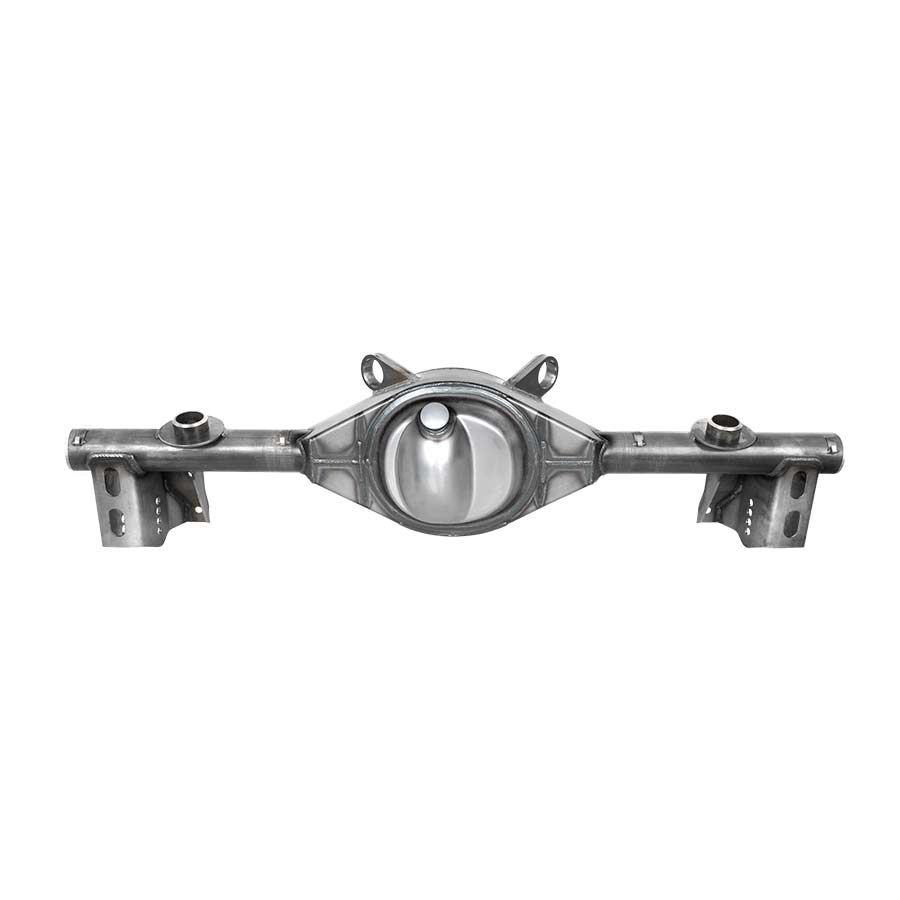

Strange HD Ford 9″ Bolt-in Housing
Perfect base for creating Pro Touring floater housing
Information Required
Housing tube to tube width
Features
Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
Fill & Drain plugs H1116 / H1117D
• Facilitate fluid changes
Tubing – H1139
• Mild steel
• 3″ OD x .250″ wall
• Brake line tabs
Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity
GM B-Body Mounts
• Heavy duty upper & lower control arm mounts
Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality
Related Components
Gasket…………………………. H1111S
Pro Touring floater kit………… F5010
See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
