Double Adjustable Front Shock 1993-2002 Camaro, Firebird, & Trans Am Street / Track - Requires Special Spring


Part Number: S5069


1993-2002 Camaro / Firebird / Trans Am


Double Adjustable Coil-Over Front Shock
Street / Track – Sold as each

Requires Special Spring – Sold Separately

Coil-Over Benefits

• Compact & lightweight
• Allows adjustments to ride height

Drag Racing
Softening extension allows for more weight transfer
Compression controls returns from wheel stands & reaction to bumps

Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics

Rotating Knobs Clockwise Stiffens Valving

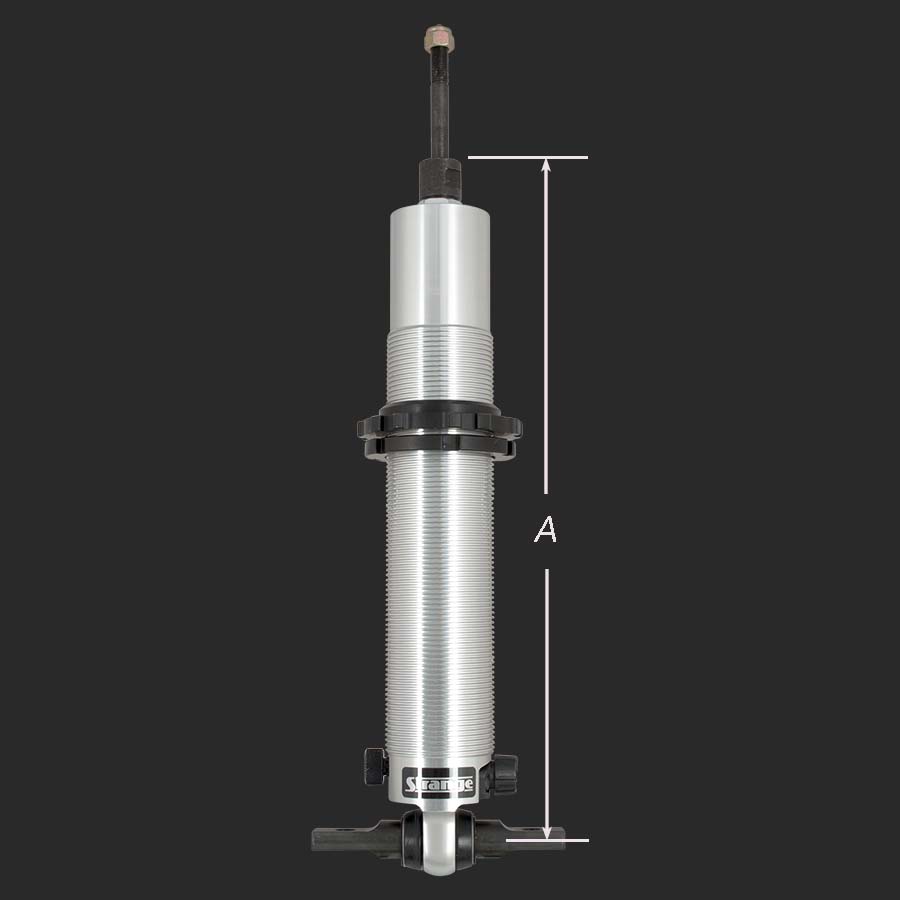

Dimension A

Extended 18.66″ / Compressed 13.96″


• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Independent external adjustment knobs
• Allows quick adjustments for varying conditions
• Integral coil-over body
• Permits simple changes to ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved

Related Components


Custom 300 lbs…………….. SPC300

Rear Shock

Single adjustable…………… S5270
Double adjustable…………. S5070



GM double adjustable coil-over front shock for 1993-2002 Camaro (Spring sold separately)

Parts List and Installation Guide pdf File
