$2,200.00

Part Number: PSS100DBL

Drag Race Use Only


For Spindle Mount Wheels

Require wheels designed for Strange spindles
These are not the same as Anglia spindles


Features

Compact lightweight design sheds front end weight
Allows for maximum control of the front suspension
External independent adjustments for both directions of movement

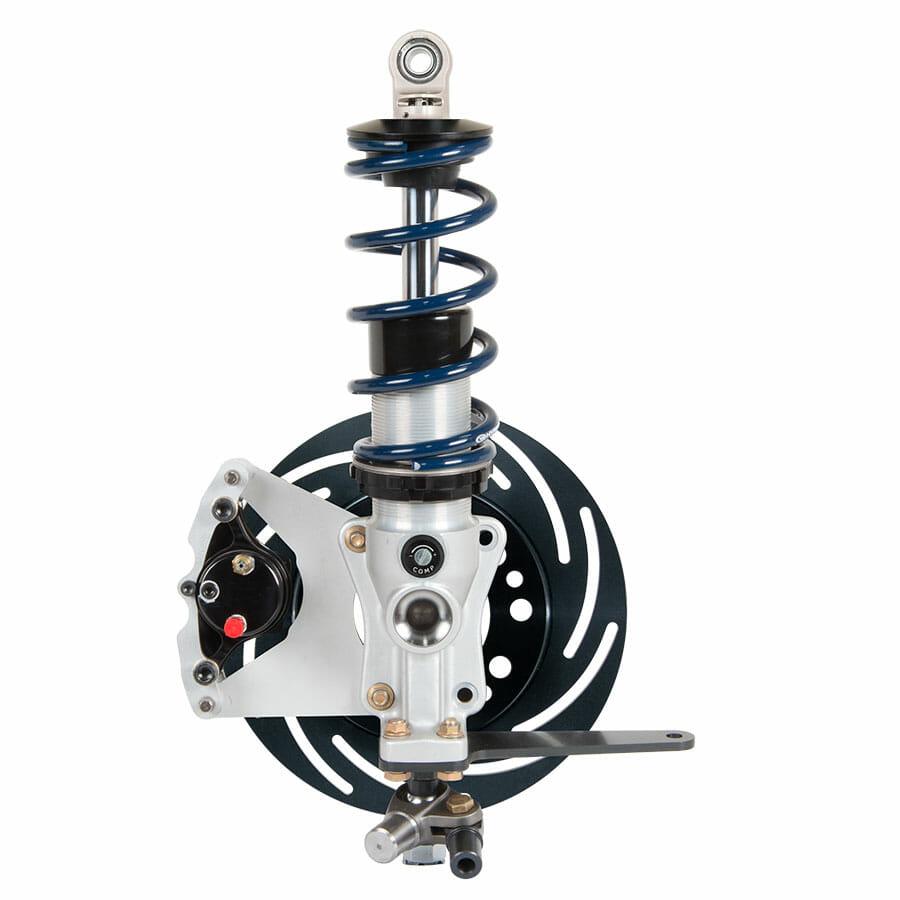

Strut Package Includes

Double Adjustable Eye Mount Struts
• Forged 2014-T4 aluminum bodies
• Stainless steel spindles
• 2 1/2″ stroke (with bumper installed)
• Separate adjustments for extension & compression rate
• Valved specifically for Drag Racing
• Custom valving available on request
• Forged in the USA
• Designed, machined, & assembled by Strange Engineering

Lower Control Arm Ends – S3750
• 4130 steel A-Arm ends with clevises
• Teflon® lined spherical ball LCA bearings
• Grade 8 bolts, flanged locking ESNA nuts, & 3AN washers

Control Arm Tubing Kit – S3420 / S3421
• 4130 seamless tubing
• Tubing adapters
• Choice of 7/16″ or 1/2″ Teflon® lined chrome moly rod ends

Premium Hyperco Springs
• Chrome silicone steel
• Magnaflux inspected
• Dark blue powder coated
• Choice of spring rate

Spring Seat Bearing Kit – S1409
• Allows smooth height adjustment
• Eliminates spring bind during turns

Spindle Mount Brake Kit – B4597WC / B4598WC
• One piece forged slotted steel rotors
• Choice of 1″ or 1 1/2″ offset rotors
• Single 1 3/4″ piston billet aluminum calipers
• Slider assemblies featuring Garlock bearings
• Soft metallic brake pads
• Billet aluminum caliper mounts


Note
Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings


Recommended Spring Rates

Front Weight – Spring Rate
    1,100 lbs    – 200 lbs
    1,200 lbs    – 200 to 225 lbs
    1,300 lbs    – 225 to 250 lbs
    1,400 lbs    – 250 to 275 lbs
    1,500 lbs    – 275 to 300 lbs
    1,600 lbs    – 300 to 325 lbs

Consult your chassis builder for their suggestion


For any questions regarding this package
Please contact a Strange Sales Associate to discuss your vehicle


Description

Alum. Strut pkg. / Double ext. adj. eye mount / L.W. brake kit

Additional information

Weight 48. lbs
