Application
Drag Race Vehicles
Short Stroke
2.62″ thru 3.86″ – A-Arm Systems
3.86″ – Some Dragster 4-Link Systems
Long Stroke
4.64″ thru 8.15″ – 4-Link & Ladder Bar Systems
Description
Single Adjustable Coil-Over Shock
Sold as each

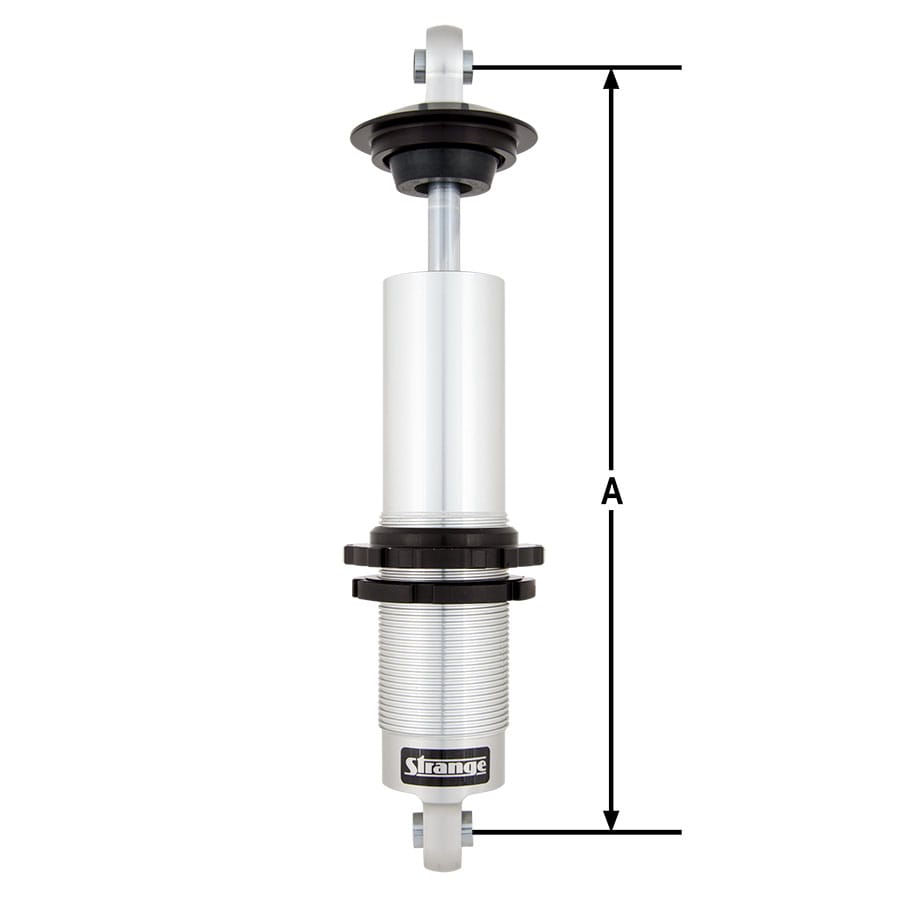

Dimension A
Stroke 3.86″ / Extended 13.84″ / Compressed 10.00″
With .563″ Bump Rubber Installed
Stroke 3.297″ / Compressed 10.563″
Recommended Ride Height
11.75″ – 12.125″
Accepts 10″ x 2.5″ ID spring – Sold separately
Features
• Lightweight aluminum body
• External adjustment knob
• Provides 10 extension settings
• Allows quick adjustments for varying conditions
• Coil-over design permits easy changes to ride height
• 1.00″ wide high misalignment spherical rod ends
• Ability to be rebuilt or revalved
Options
– .500″ or 1.500″ wide spherical bearings
– Polyurethane bushings with steel sleeves *
– Upper stud mount with rubber cushions *
– Custom valving *
* To Order Shock With These Options Please Call
Not available for online orders
Front Shock Adjustments
Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times
Rotating Knob Clockwise Stiffens Valving
Related Components
Spring seat bearing kit………………. S1409
Spring seat adjuster wrench……… S1413
Double Adjustable……………………. S5004A
Double Adjustable Package………. S5004
