Single Adjustable Rear Shock
GM Truck


Part Number: S5298


Chevy Truck – Rear
1969-1972 Full Size Blazer (2 Wheel Drive)
1967-1972 C10 Pick-up (2 Wheel Drive)

GMC Truck – Rear
1967-1972 Sierra (2WD Coil Spring Rear)
1969-1972 Full Size Jimmy (2 Wheel Drive)



Single Adjustable Aluminum Shock
Rear – Sold as each

Drag Racing
Softening extension allows more downward force on the rear tires

Performance Street / Road Racing
Stiffening extension reduces body roll
Enhances handling & cornering characteristics

Rotating Knob Clockwise Stiffens Valving

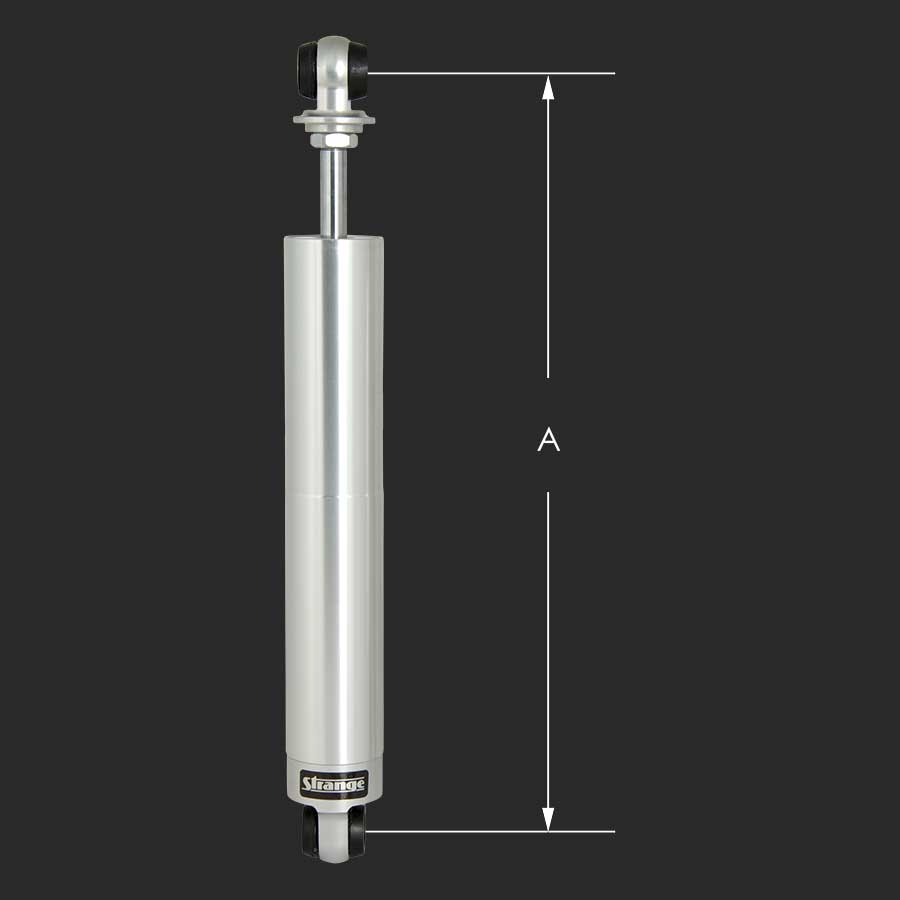

Dimension A

Extended 17.15″ / Compressed 11.64″


• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control

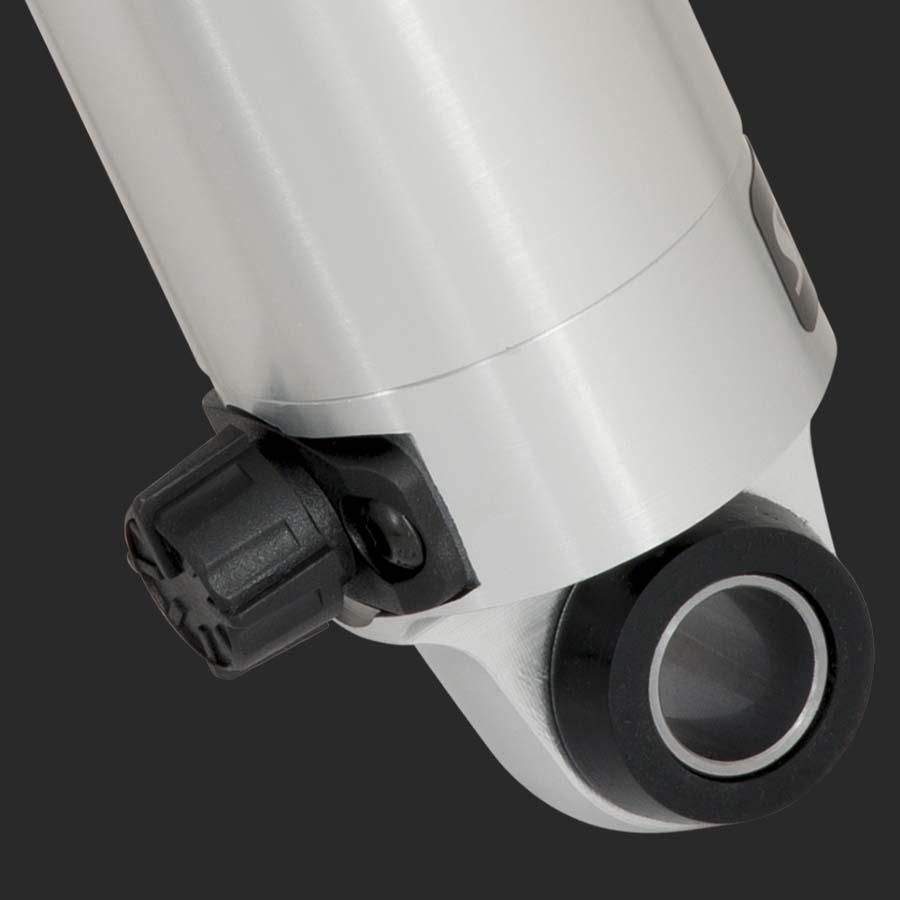

• Easily accessible independent external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved


– Upper & Lower polyurethane bushings
– 3/4″ 5/8″ ID x 1.200″ steel sleeves



GM Single Adjustable Rear Shock

Additional information

Weight 4.5 lbs
