S60 GM F-Body Housing With Tubes Installed - No Mounts or Housing Ends

Application – GM F-Body housing fabrication

Description
Strange S60 F-Body housing
Tubed – No mounts or housing ends

Information Required – Tube to tube width

Features
Nodular Iron Center – H1105A
– Integral torque arm provision
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Three channel sensor hole
– Accepts Dana 60 internal components *

* Uses different side bearing races

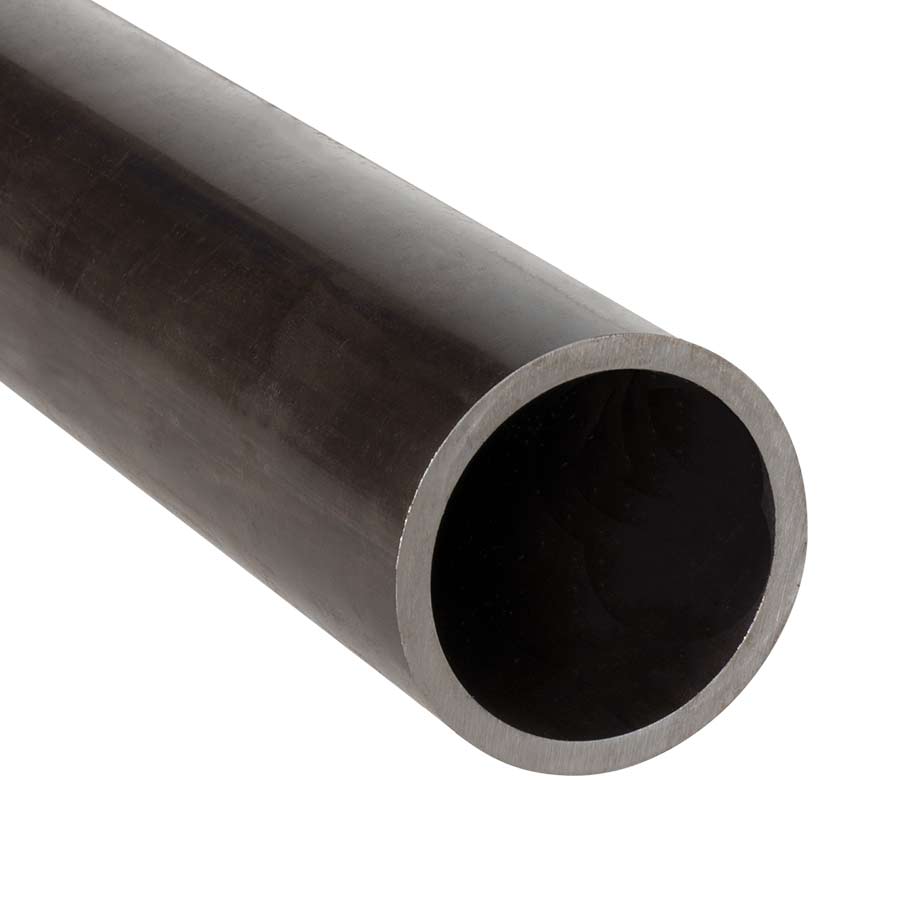

3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel

Choice Of Tube To Tube Width
– Factory width
– Custom width at no additional charge

Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues

Notes
Specify if using 3 channel, 4 channel, or no ABS
3 channel ABS utilizes OEM sensor

Rear End Covers
Aluminum covers will not fit due to limited vehicle clearances

Related Components
Adjuster nut wrench…………….. H1109D
Steel cover…………………………….. D3505
Strange aluminum cover……….. D3517
LPW HD aluminum cover………. D3509
Cover gasket…………………… D3508 / D3508F
Gear install kit……………………….. D3512
