Strange S60 Independent Rear End Bolt-in Assembly for 2010-2015 Camaro

$3,995.00

Part Number: H1400

Application
2010-2015 Chevrolet Camaro with V8 engine

Description
Bolt-in S60 rear end assembly

Requirements
Custom driveshaft
Aftermarket axle half shafts

Gear Ratio Selection
3.54 / 3.73 / 4.10 / 4.30

Features

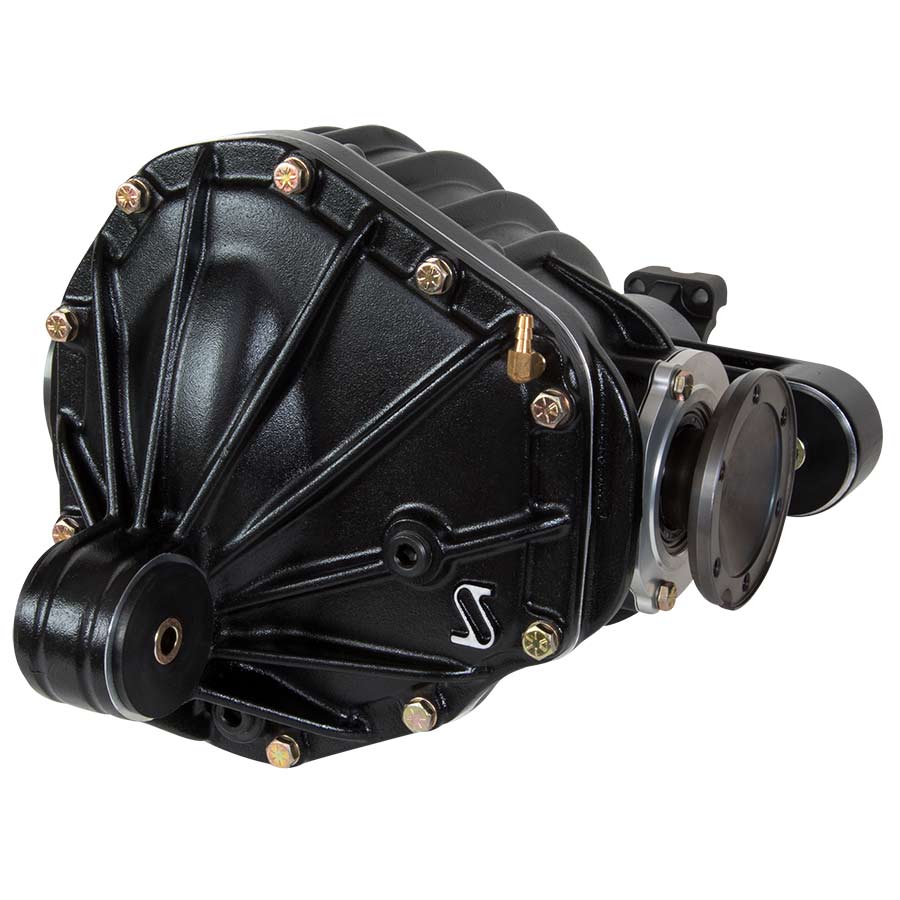

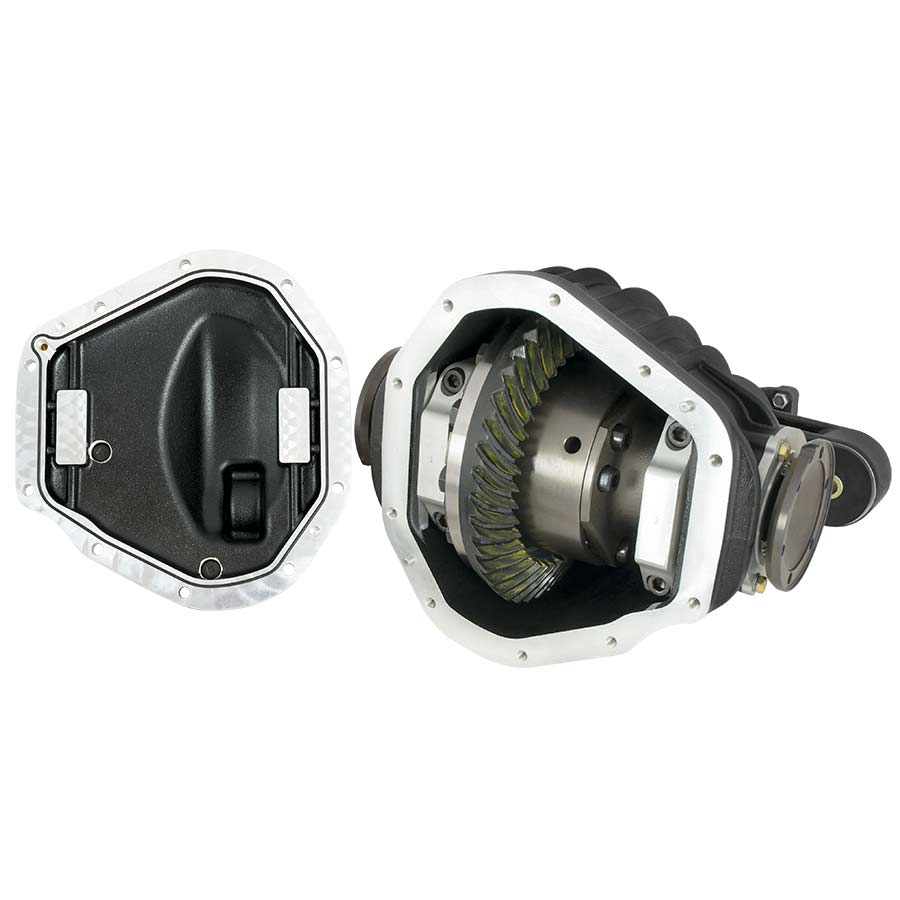

206-T4 Aluminum Housing & Cover
– Fins add rigidity and supplement cooling
– Cover offers additional support to main caps
– Fill and magnetic drain plug facilitate oil changes
– Black Enduraguard™ coating for extensive surface protection

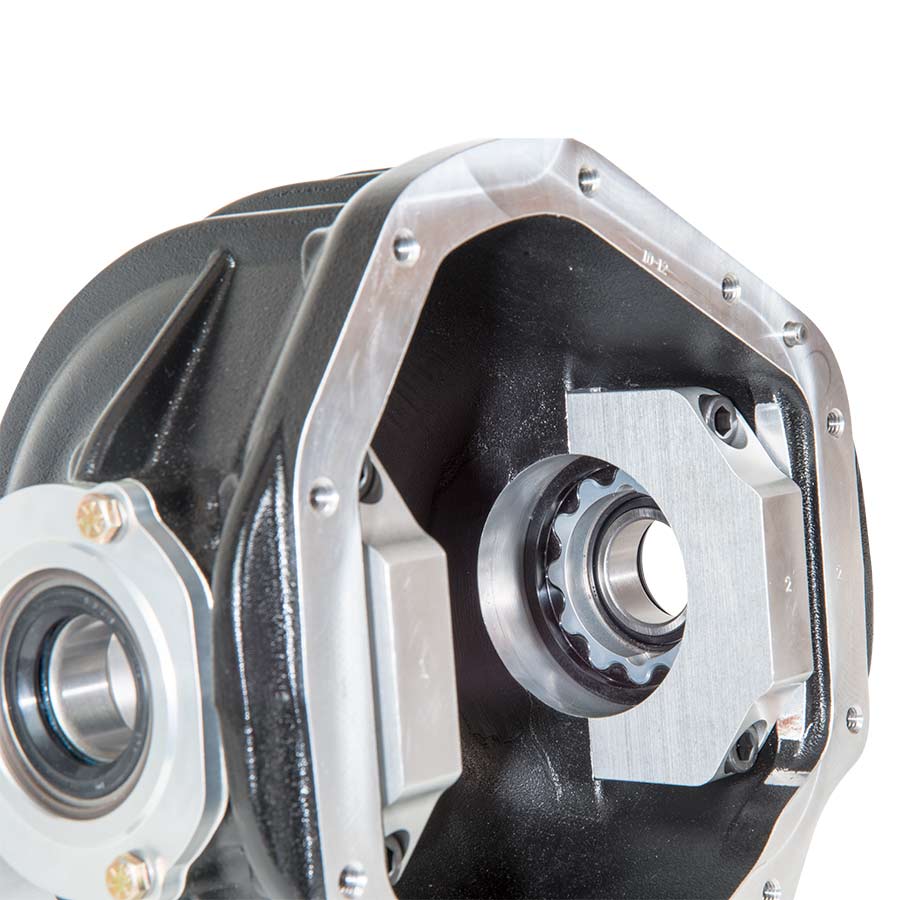

2024-T351 Billet Aluminum Main Caps & Steel Adjuster Nuts
– Maintains proper engagement of ring and pinion
– Allows for easy and precise gear set-up

Dana 60 Ring Gear
– Large 9 3/4″ diameter ring gear provides exceptional strength
– More efficient than a Ford 9″ gear set

Strange S-Trac Differential – D3523
– Extremely strong and dependable unit
– Offers smooth and progressive power transfer

1350 Series Yoke & U-Bolts – U1600 / U1610
– Accepts much larger u-joint than OEM
– Ability to handle greater torque loads

Hy-Tuf 35 Spline Stub Axles
– Ultimate in torsional strength

Utilizes Dana 60 Components
– Proven for their strength and durability
– Maintenance parts are easily accessible

Polyurethane Bushing Kit
– Completes seamless installation
– Will also accept factory and aftermarket bushings

Upgrade
Chrome moly yoke… OPRS18

Notes
Accepts GForce Engineering & Driveshaft Shop replacement half shafts
Call companies above for more details

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

9.75in S60 Independent Rear End 2010 – 2015 Camaro.

Is your 5th Gen Camaro ready for the next step in making it the most capable vehicle on the street or strip? Then you are ready for an upgrade to a 9.75-inch aluminum independent rear end from Strange Engineering.

The Strange 9.75in S60 Independent Rear End utilizes proven components- including the Strange 35-spline S-Trac (helical design) and Hy-Tuf axle shafts. Manufactured from lightweight 206-T4 aluminum, which provides exceptional strength and toughness at a reduced weight.

Strange designed the 9.75” unit with a radial design for both the main unit and the support cover, which provides outstanding strength and increased rigidity. Aircraft grade 2024-T351 billet aluminum main caps and steel adjuster nuts for easy and precise gear set-up. The main caps are further supported by the cover, increasing strength and decreasing deflection. The S60 Independent Rear is coated with black Enduraguard™ to maintain a clean finish.



2010 9.75 in S60 Independent Camaro Rear End
2011 9.75 in S60 Independent Camaro Rear End
2012 9.75 in S60 Independent Camaro Rear End
2013 9.75 in S60 Independent Camaro Rear End
2014 9.75 in S60 Independent Camaro Rear End
2015 9.75 in S60 Independent Camaro Rear End

Parts List and Installation Guide pdf File
