Application
1982-1992 Camaro
Description

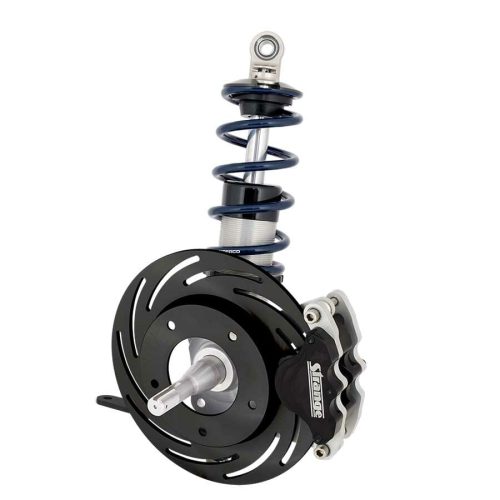

Double Adjustable Steel Strut
Drag Race Only – Sold as each
Requirements
Caster / Camber Kit
14″ x 2.5″ ID Spring
Adjustments
Extension Settings
Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times
Compression Settings
Softer – Improves reaction to bumps in the track
Stiffer – Dampens impact forces from wheel stands
Features
• Independent external adjusters
• 3 1/8 turns of extension adjustment
• 13 compression settings
• Provides a wide range of control
• Allows quick adjustments for varying conditions
• Integral coil-over body
• Permits easy changes in ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved
Spring – Sold Separately
Recommendation
14″ x 2.5″ ID spring
250-275 lbs rate
Some builders may prefer a different rate or 12″ spring
Consult your chassis builder for their suggestion
Related Components
Caster / Camber kit………………. S6003FB82
Springs
250 lbs…………………………………… SP14250
275 lbs…………………………………… SP14275
Spring seat bearing kit…………….. S1409
Spring seat adjuster wrench……. S1413
Strut package………………………… S2000FB
