D3513-Complete Installation Kit For OEM Dana 60 Rear End

Complete Installation Kit For OEM Dana 60 Rear End

$250.00

Part Number: D3513

Application
OEM Dana 60

For Strange S60 – See D3512

Features Timken® Bearings & Races

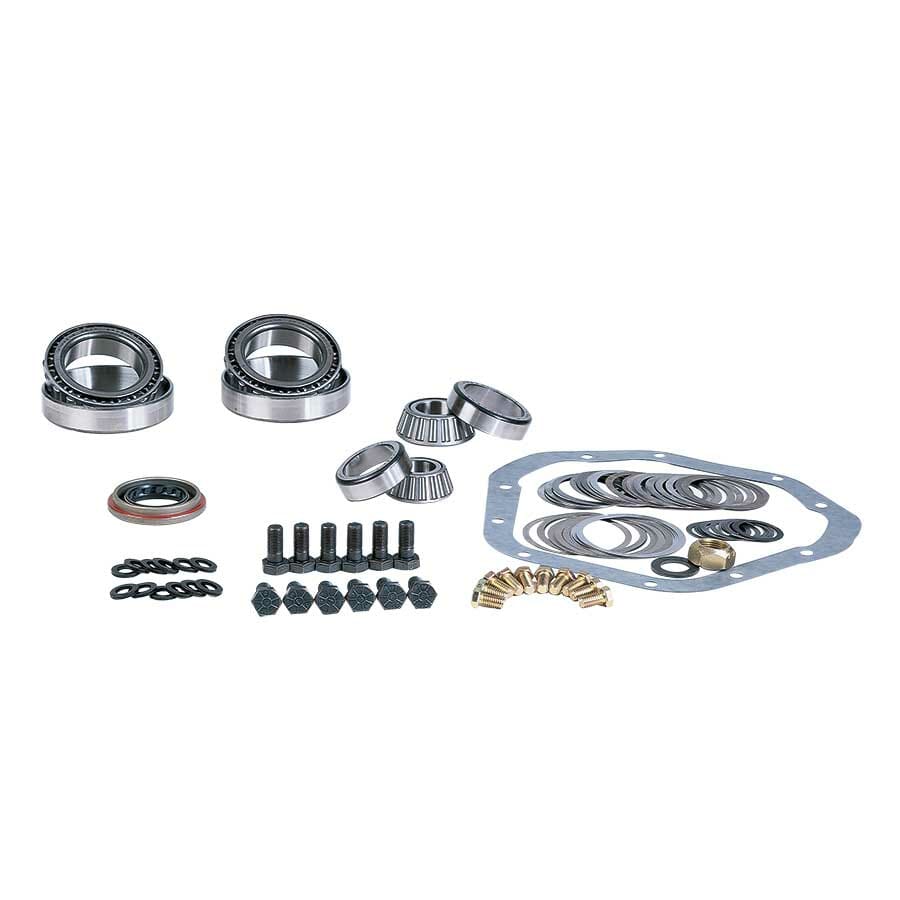

Kit Includes

Front and rear pinion bearings & races
Side bearings and races
Pinion seal, lock nut, & washer
Pinion preload & depth shims
Side bearing preload shims
Ring gear bolts & washers
Cover gasket

Related Components

Strange aluminum cover… D3517
LPW HD aluminum cover… D3509
Spicer steel cover……………. D3505

Description

Dana 60 gear set installation kit
