Strange Ball Bearing Pinion Support                                                             Includes Bearings & Seal For 28 Spline Pinion                                                   Fits 9″ Ford Center Sections Used For Drag Racing

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Pinion Supports, Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Pinion Supports/

Strange Ball Bearing Pinion Support                                                             Includes Bearings & Seal For 28 Spline Pinion                                                   Fits 9″ Ford Center Sections Used For Drag Racing

Strange Ball Bearing Pinion Support                                                             Includes Bearings & Seal For 28 Spline Pinion                                                   Fits 9″ Ford Center Sections Used For Drag Racing

$295.00

Part Number: N1920

Application
Drag Race Use Only

Features
Forged 2024-T351 aluminum body
Clear anodized finish
Machined for front tapered race and rear low friction ball bearing

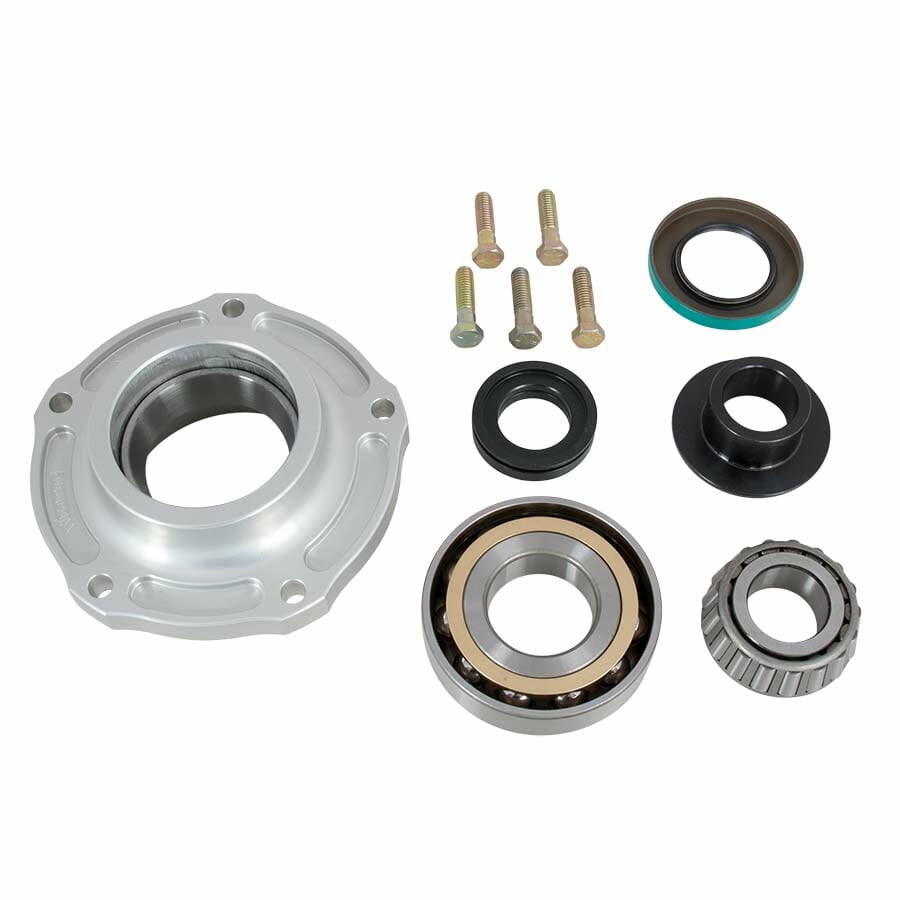

Includes
Angular contact rear ball bearing for 28 spline pinion – N1920B
Combination adapler / spacer sleeve – N1920G
2 piece adjustable preload assembly – N1920HK
TimkenĀ® front tapered bearing & race – N1930 / N1931
Low drag pinion seal for 28 spline pinion – N1960L
Support o-ring – N1958A
Bolts

Note
Support body and race can be reused for 35 spline pinion with proper bearing kit


Bearing Kits
For 35 spline pinion… N2323L
For 28 spline pinion… N2323S

Parts List and Installation Guide pdf File

Description

Forged Aluminum Drag Race Ball Bearing Pinion Support Kit For 28 Spline Pinion

Additional information

Weight 8.55 lbs
