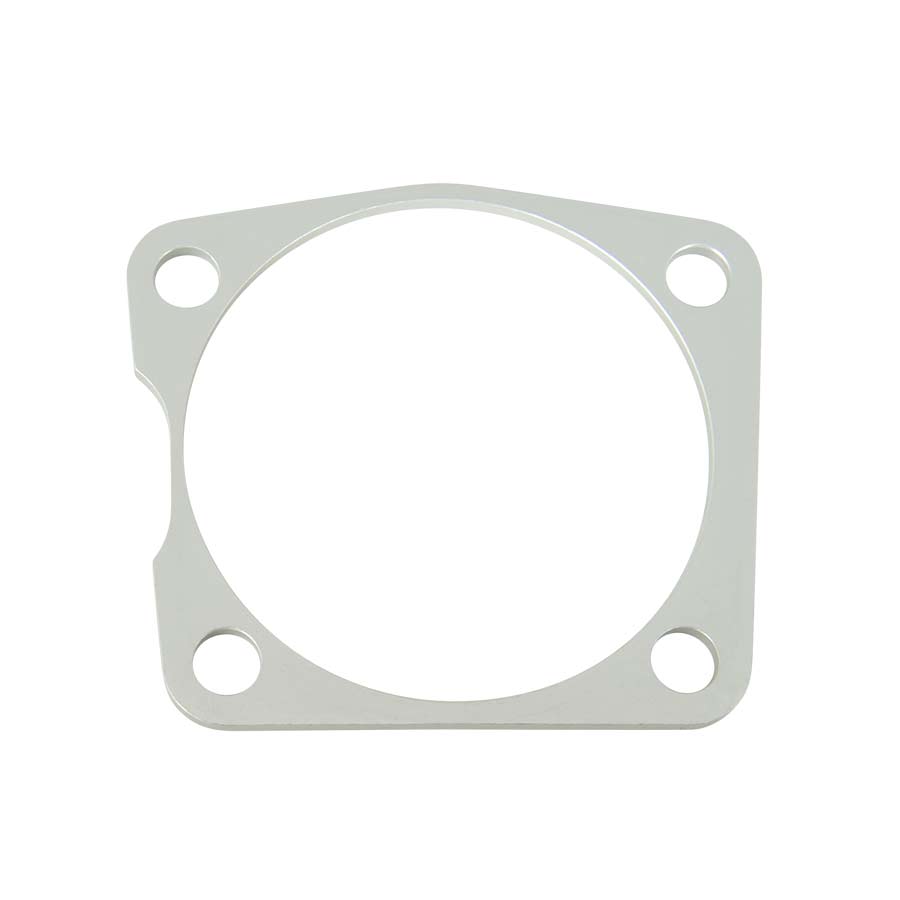

Housing End Spacer For Strange H1143 / H1144 Ends Using 98-02 F-Body Brakes & Ball Style Axle Bearings


Part Number: B1105DB

Installing GM 1998-2002 F-Body brakes
On Strange Small GM 3.150″ housing ends
Using ball style axle bearings

For Tapered Bearings – See B1105D

Allows OEM caliper mount to function as a retainer plate
Fills the gap that would normally occur due to axle bearing protrusion

Caliper mount must be placed on axle before bearing is installed
Spacer plate is placed between the caliper mount and housing end
Sold as each – Two plates are required per rear end

Related Components
Small GM 3.150″ housing ends… H1143 / H1144
Ball style axle bearing…………………….. A1021


98-02 F-Body Housing End Spacer – Using Ball Style Axle Bearing
