Double Adjustable Rear Shock
1994-2004 Mustang


Application
1994-2004 Mustang
Includes GT & Cobra

Description
Double Adjustable Aluminum Shock
Rear – Sold as each

Drag Racing
Softening extension allows more downward force on the rear tires
Stiffening compression delays the return to normal ride height

Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics

Rotating Knob Clockwise Stiffens Valving

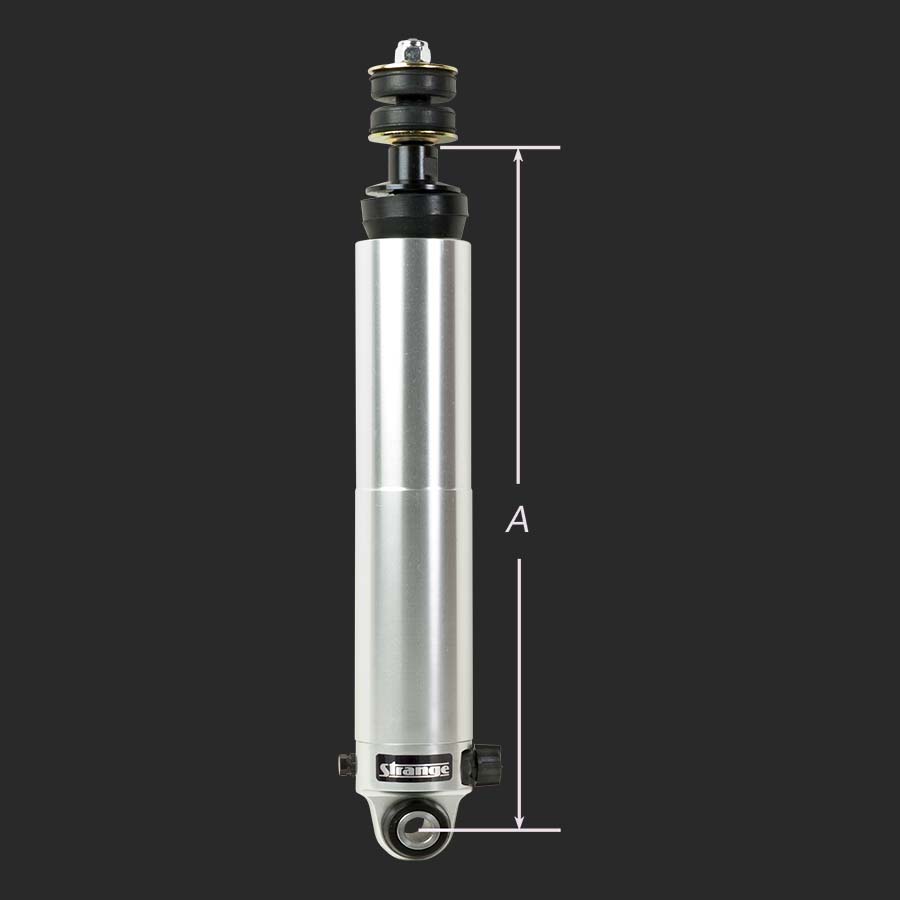

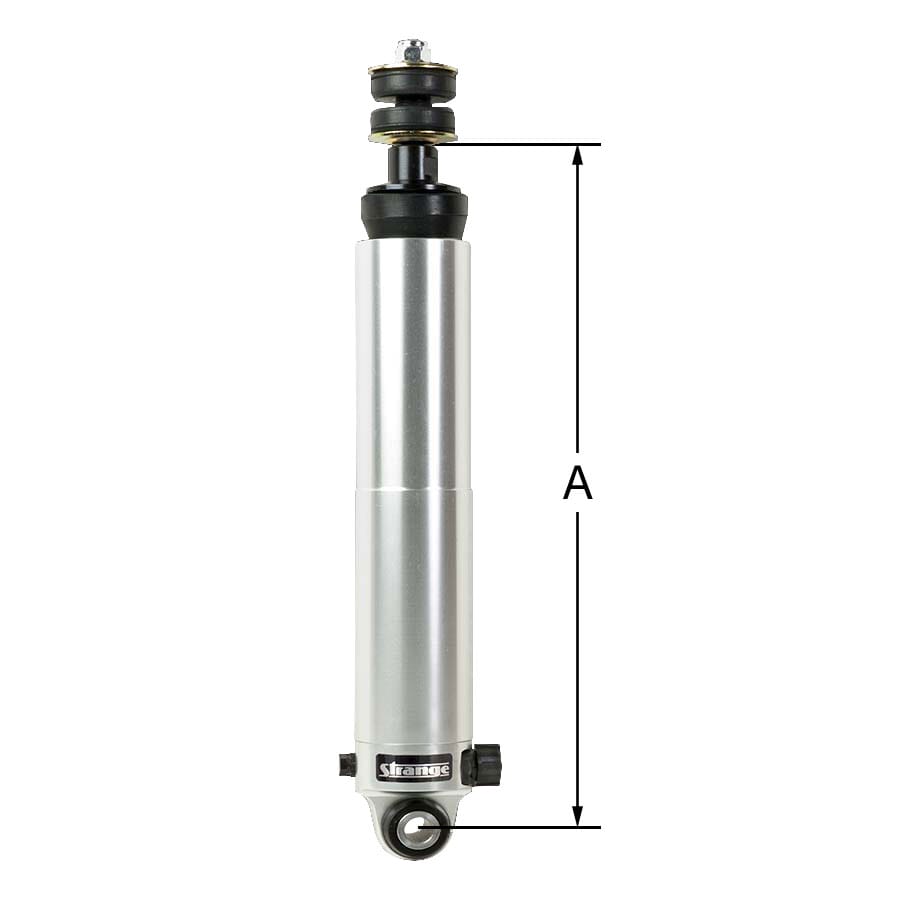

Dimension A
Extended 19.68″ / Compressed 14.34″

Features
• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved

Includes
• Upper stud with rubber cushions
• Concave washers & lock nut
• Bump rubber
• Lower polyurethane bushing
• Steel inner sleeve

Related Components
Other Shocks

Aluminum Coil-Over
Single adjustable – S5248
Double adjustable – S5048

Front Strut
Single Adjustable
Stock ride height – S6005LM
Lowered up to 1 1/2″ – S6001EM

Double Adjustable *
Strut – S2041
Strut package – S2000FM

* Drag Race Only – Vehicles lowered up to 1 1/2″
