5/8" Stud Kit - 1.875" Long Shank
Includes Lug Nuts & .688" Wide Washers

$100.00

Part Number: A1041L


Application
Axles Drilled And Tapped 5/8″-18

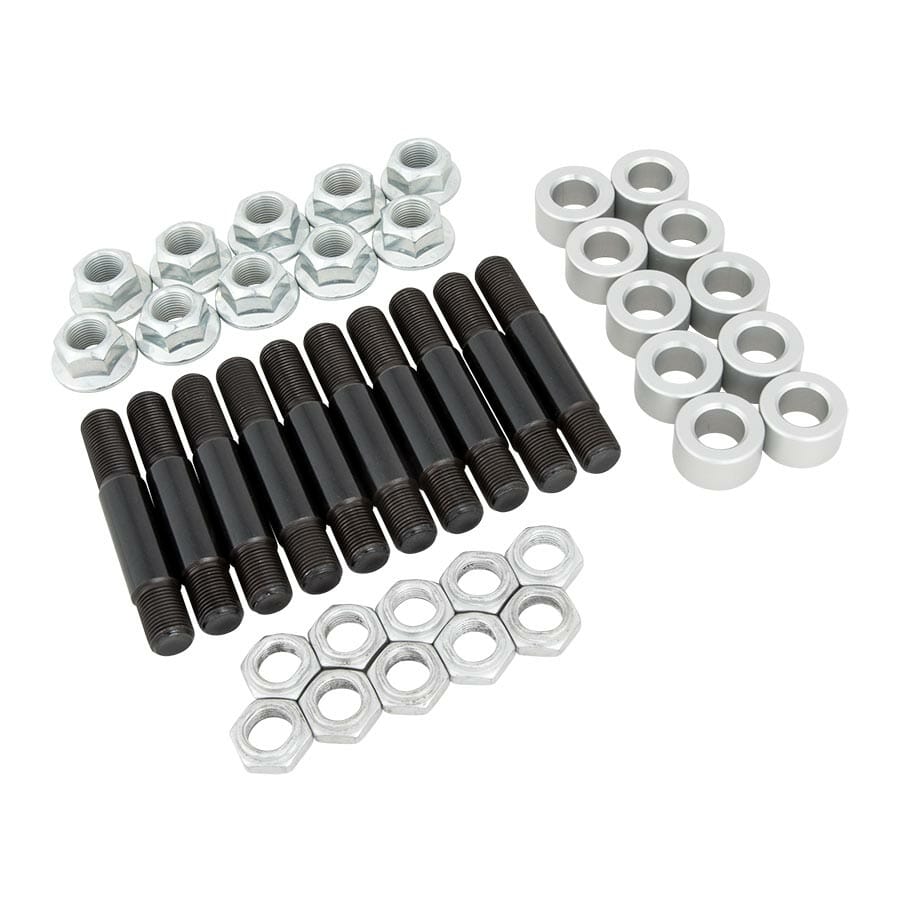

Includes

5/8″-18 Chrome Moly Studs
• Rolled threads for maximum strength
• Internal 1/4″ hex to facilitate installation
• Zinc Phosphate coated to resist corrosion

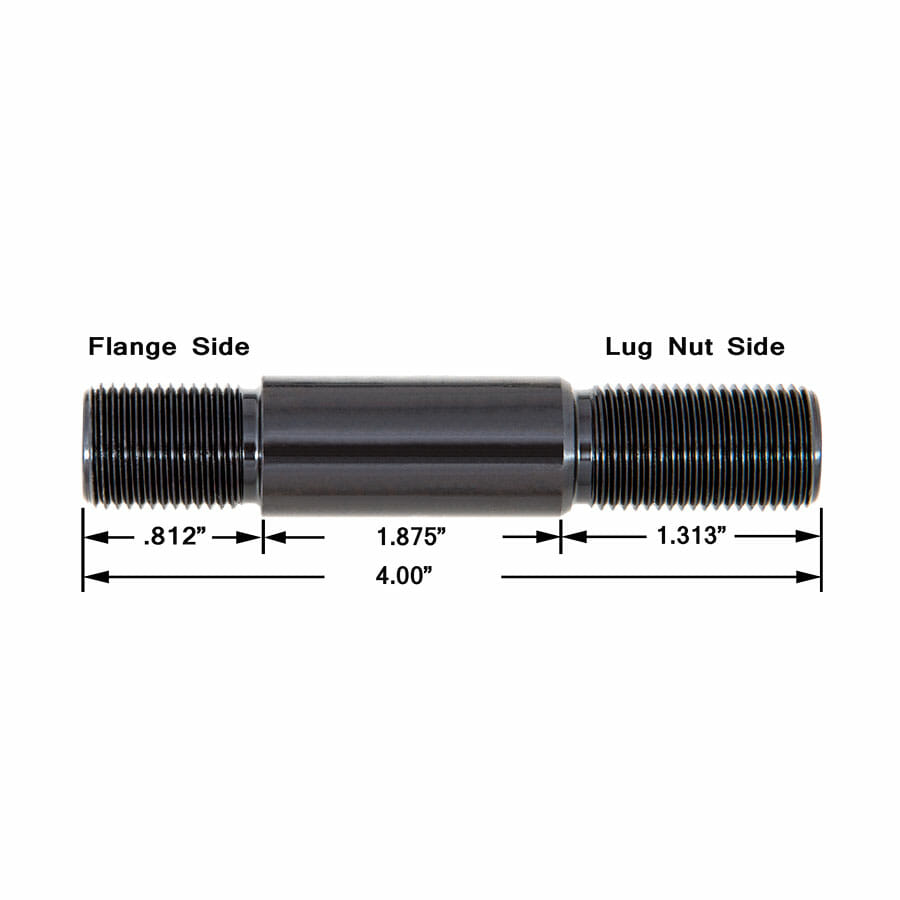

• .686″ OD x 1.875″ long shoulder to properly locate wheel

Thin Head Self-Locking Nuts
• Ensures positive retention of wheel stud
• Provides additional backside clearance
• 15/16″ wrench size

.688″ Wide Aluminum Washers
• Reduces marring on wheel face from flanged lug nut
• Keeps lug nut from bottoming-out on stud shoulder

5/8″-18 Flanged Lug Nuts
• Provides secure clamping force
• 15/16″ wrench size

Rotor Hat & Wheel Thickness Determines Proper Shoulder Length
Shoulder should exceed combination but not beyond washer width

Other Washers
Kit Suffix Specifies Washer Width
No suffix = .4375″ / S = .250″ / L = .688″

Other Shank Lengths
0.775″ – A1036
0.875″ – A1037
0.875″ – A1037MD (For Strange 2 pc axles)
1.188″ – A1038
1.500″ – A1039


Description

5/8 x 18 stud kit with 1.875 shank (.688 washer)

Parts List and Installation Guide pdf File
