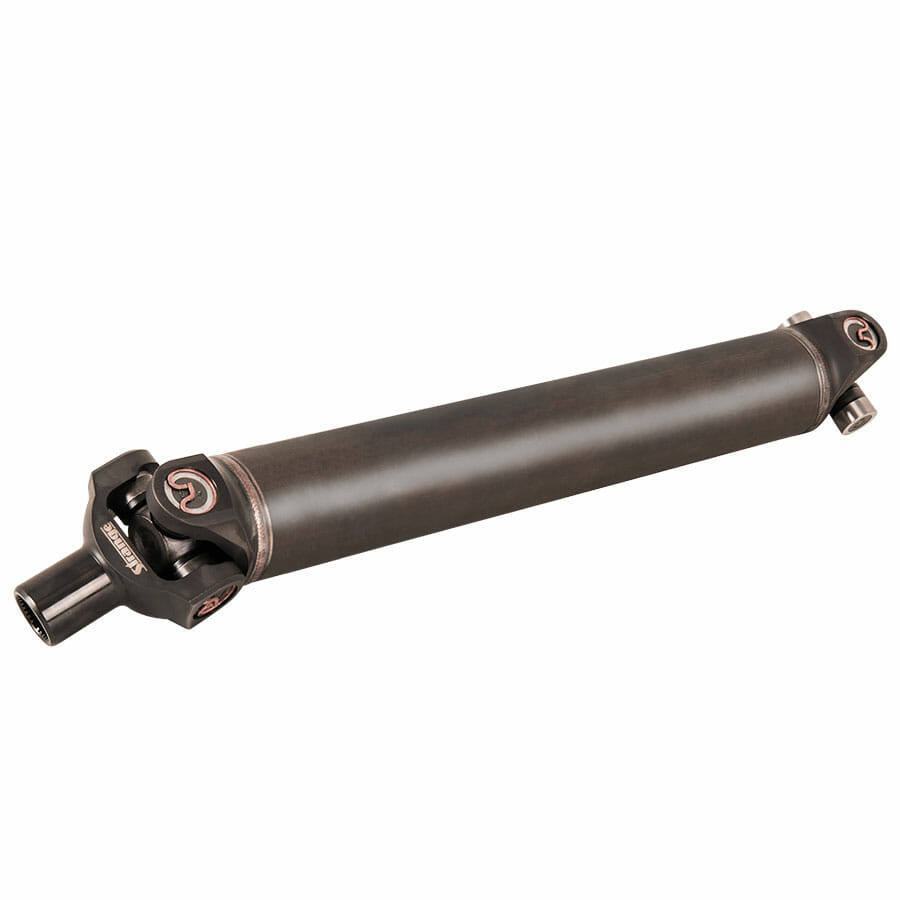

Strange 3 1/2" Seamless Chrome Moly Driveshaft
With Strange Forged 1480 Weld Ends & Spicer U-joints

$595.00

Part Number: U1706

Custom made driveshaft per your request
Requires completed Driveshaft Order Form

Please note maximum RPM to ensure safe operating range

Matching 1480 series transmission & rear end yoke are highly recommended
Driveline integrity is limited to the strength of weakest component

Features

Shaft – U1703T
– 4130 seamless chrome moly tubing
– 3 1/2″ OD x .083 wall thickness

Weld Ends – U1674
– 4130 chrome moly forging
– Additional material in critical areas
– Accepts largest u-joint for Drag Racing

U-joints – U1639
– 1 3/8″ cap size for maximum strength
– Non-crossdrilled design improves rigidity

Construction
– Fully TIG welded
– Professionally balanced

Notes

Transmission yoke required for balancing
Available for purchase or send in your existing yoke



1480 Yokes Available

GM TH400……………………… U1684TH
GForce & Liberty……………. U1684
Lenco 32 spline……………… U1683
Ford 9″ rear end yoke……. U2304

Options
SFI Certification……………. U1700SFI



Description

3 1/2 inch Chrome Moly Driveshaft w/ 1480 u-joints.

3.5″X.083″ Seamless Chrome Moly Driveshaft With Heavy Duty U-Joints

A Strange Seamless 3.5 inch Chrome Moly Driveshaft is constructed from heat treated chrome-moly tubing. The 3 1/2″ outer diameter tubing has an optimized .083” wall thickness to fit a variety of applications. Strange Chrome moly Driveshafts are also used in Street, Road racing, Oval racing, and other applications.

Our build team uses special fixtures so that the weld-ends are properly phased as to eliminate driveline vibration. Every shaft is electronically balanced with a total run-out of less than .008”. Drag racing driveshafts take a lot of punishment, especially in very high horsepower racing applications. This makes the driveshaft a vital component of the performance of a drag racing vehicle. Compared to mild steel driveshafts Chrome moly Driveshafts are stronger, they are also able to withstand more torque, and therefore have more stability at high RPM.

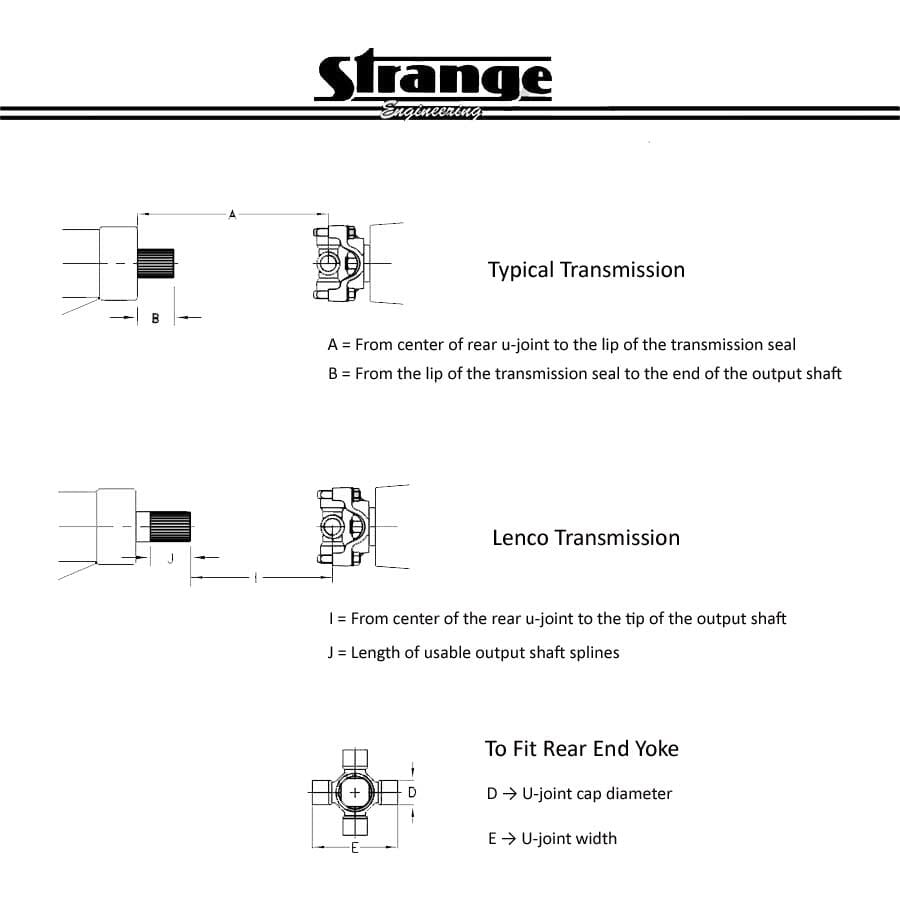

We have a specialized order form to ensure the perfect fit for your vehicle. The length, diameter, and RPM it’s going to spin at are vital to make sure you do not exceed its critical speed. Doing so can cause distortion, vibrations and eventually failure. If you have any questions then call a Strange Sales Associate to discuss the proper driveshaft diameter to order for your application.

Strange offers a complete line of transmission yokes, rear end yokes, and u-bolt kits to complete your custom driveshaft. We also have a downloadable pdf that you can download, fill out and send back to us if you are not ready to place the order online.

Additional information

Weight 0.01 lbs
