Tie Rod Fabrication Kit
For Strange Door Car Steering Racks


Tie Rod Kit For Strange Steering Rack – S3448 / S3448-195

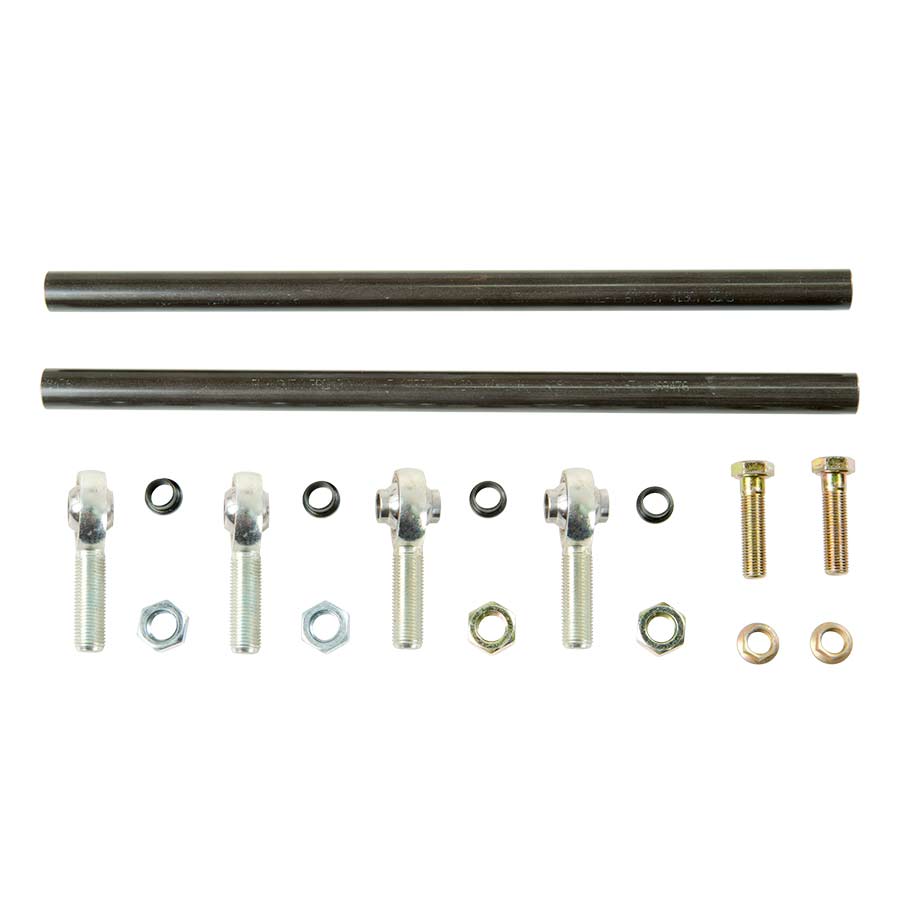

Components necessary to construct tie rod ends

Tubing
• 4130 seamless chrome moly
• .625″ O.D. x .120″ wall
• Two 12″ long pieces

Tubing Must Be Cut to Length & Threaded
Requires 7/16″-20 taps in both RH & LH threads

Rod Ends
• Chrome moly
• Teflon® lined
• .560″ wide ball / 7/16″-20 shank / RH threads
• .560″ wide ball / 7/16″-20 shank / LH threads
• .812″ wide ball / 7/16″-20 shank / RH threads
• .812″ wide ball / 7/16″-20 shank / LH threads
• .4375″ I.D. spherical ball

Additional Components
• (2) 7/16″-20 RH jam nuts
• (2) 7/16″-20 LH jam nuts
• (4) 7/16″ O.D. x 3/8″ I.D. bushings
• (2) 3/8″-24 x 1 1/2″ grade 8 bolts
• (2) 3/8″-24 ESNA nuts
