Application
2008-2010 Dodge Challenger
Bolt-in coil-over front shock
Description
Double Adjustable Aluminum Shock
Drag Race Only – Sold as each
Adjustments
Extension Settings
Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times
Compression Settings
Softer – Improves reaction to bumps in the track
Stiffer – Dampens impact forces from wheel stands
Rotating Knobs Clockwise Stiffens Valving

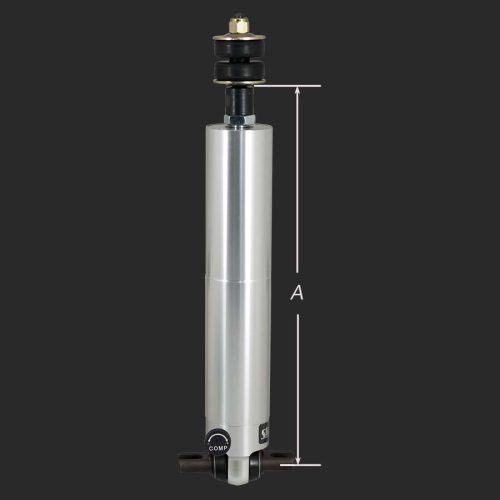

Dimension A
Extended 26.46″ / Compressed 22.00″
Features
• Lightweight aluminum body
• Independent external adjustment knobs
• Provides 10 extension & compression settings
• Allows quick adjustments for varying conditions
• Integral coil-over body
• Permits simple changes to ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved
Spring
14″ x 2.5″ ID – Sold separately
Recommendation
150-175 lbs rate
Consult your chassis builder for their suggestion
Related Components
Spring seat bearing kit…… S1409
Spring seat wrench……….. S1413
Springs
14″ 150 lbs……………… SP14150
14″ 175 lbs……………… SP14175
Rear Shock
Double adjustable………… S5086
