Strange Evolution 1 Dynamic Drive Mount Front Brake Kit
For AFCO Struts, Menscer Struts & Santhuff Struts
Evolution S Rotors, Single Piston Evolution 1 Calipers
For Spindle Mount Wheels

Original price was: $995.00.Current price is: $895.50.

Part Number: B4500WCE

Designed Specifically For Drag Racing

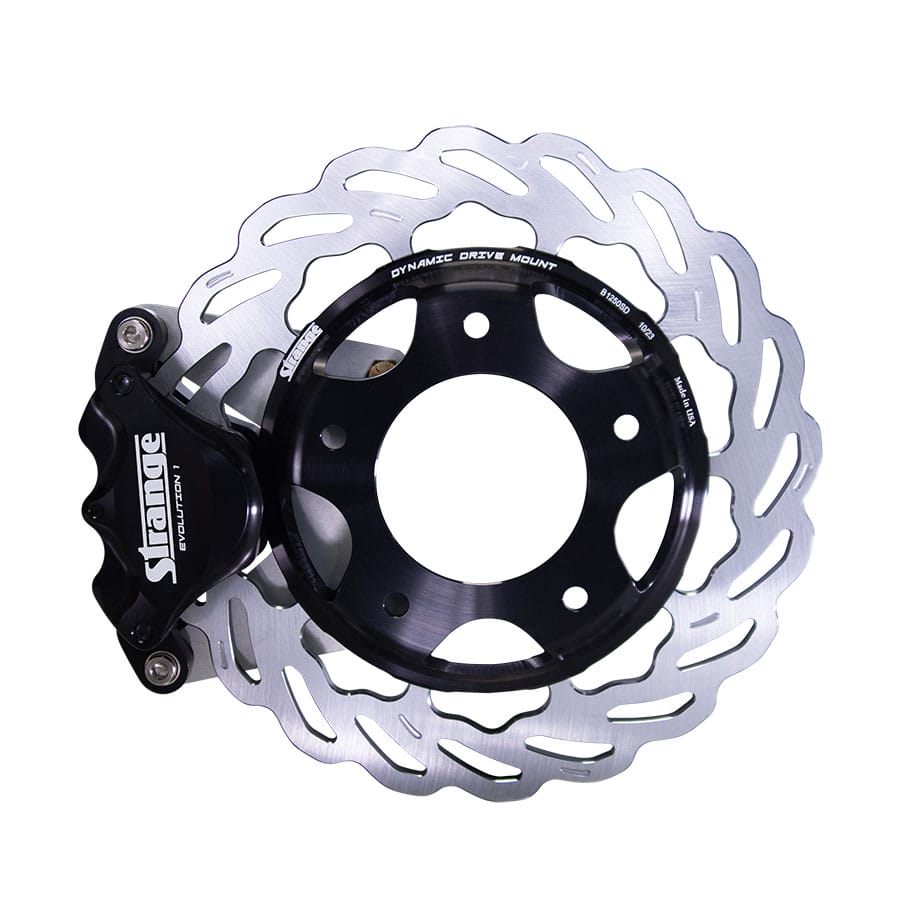

Evolution 1 DDM Spindle Mount Front Brake Kit
AFCO Struts / Menscer Struts / Santhuff Struts
With forged or billet spindle mount wheels

Evolution S 11″ Dynamic Drive Mount (DDM) Stainless Steel RotorsB2788L / B2788R
• DDM system secures the rotor and allows for rotor thermal expansion – drastically reducing warping, coning, and cracking which are common with bolt retention designs
• DDM billet aluminum hat design is secured by an internal Spirolox, eliminating heavy bolts and hardware- further reducing rotating weight
• Evolution S 11″ reduces rotating weight by .5 lbs. per rotor and delivers 12% more braking vs 10″ rotor
• Evolution S rotors are machined and fully ground from Stainless Steel that exhibits 48% greater yield strength at 1,000° F compared to carbon steel- further maintaining rotor integrity
• Stainless steel Evolution S rotors are highly resistant to heat and corrosion
• Unique Aero Slot design reduces rotating weight and promotes even heat dissipation- compared to common round drilled holes
• Scalloped design further reduces rotating weight
• Unique wheel spacer and seal ensures proper rotor alignment and lubricant containment
• 11″ O.D. / .280″ thickness (Discard at .260″)

Single Piston Billet Evolution 1 CalipersB1270
• Spreading stiffness increased 31% vs Pro Series
• Computer finite element analysis (FEA) optimized calipers – Evolution 1 design improves piston retraction, pedal feel and stiffness resulting in improved pad wear and exemplary braking efficiency
• Stainless steel pistons mitigate heat transfer to brake fluid
• Reverse dish pressure vessel piston maximizes stiffness
• High retraction piston and O-ring design to eliminate drag during acceleration
• 1.750″ piston for increased clamping force

Slider Assemblies
• Garlock bearings provide smooth operation
• Polished & plated slide pins resist corrosion

DTC-30 Semi Metallic Brake PadsB2510
• Best compound suited for front application
• Excellent cold holding capabilities

Enhanced Billet Aluminum Caliper Mounts
• Enhanced mount improves rigidity, pedal feel and improves pads life
• Preassembled with calipers and slder assemblies

Brake Kit Weight
13.6 Lbs.

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs

Description

Strange Evolution DDM Spindle Mount Front Brake Kit for AFCO / Menscer / Santhuff Struts

Instructions

Parts List and Installation Guide
